Description
Siemens 5SM3 642-0 RCCB Circuit Breaker 4 Pole 25A 230-400V
Condition: Used

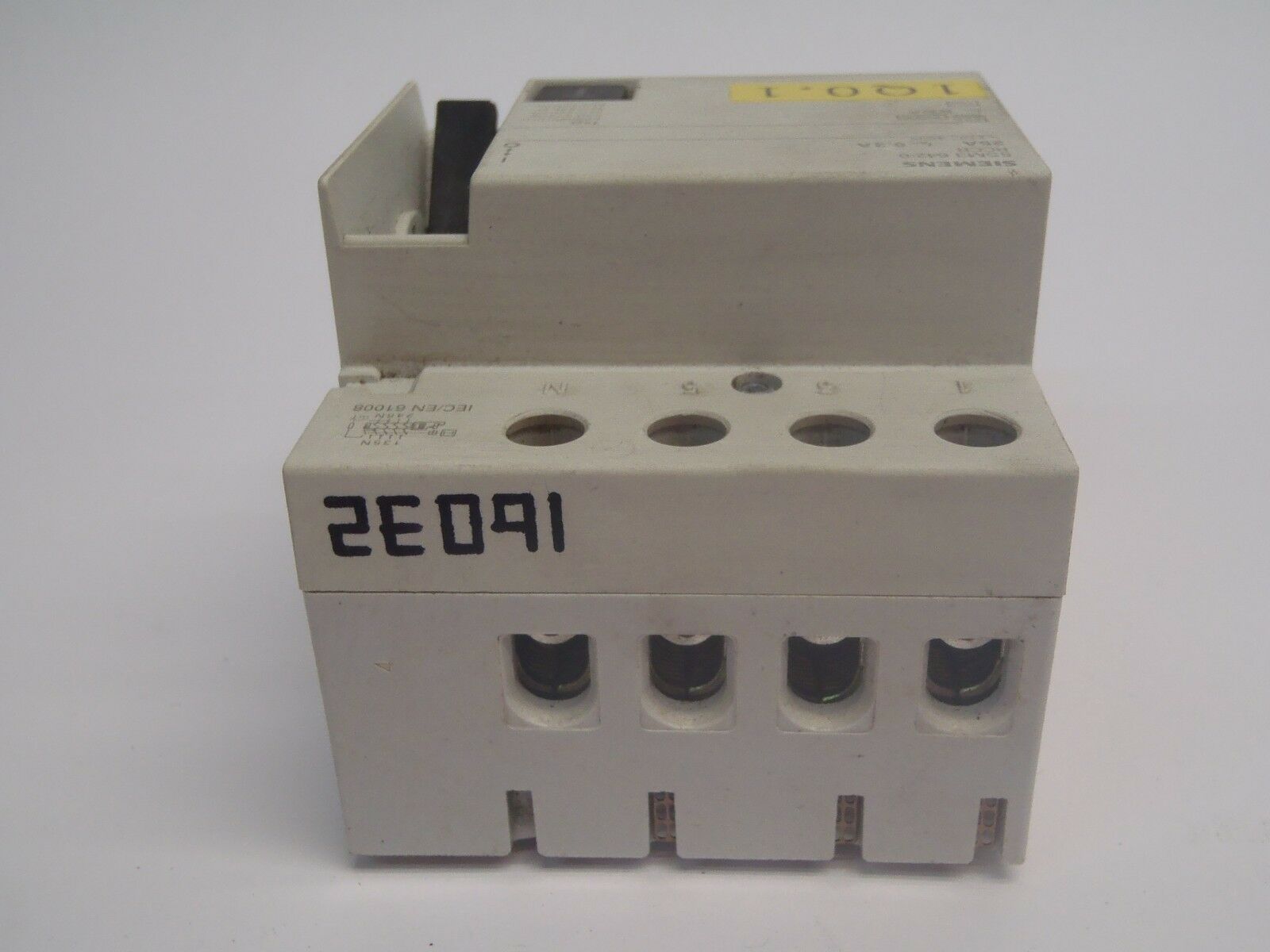

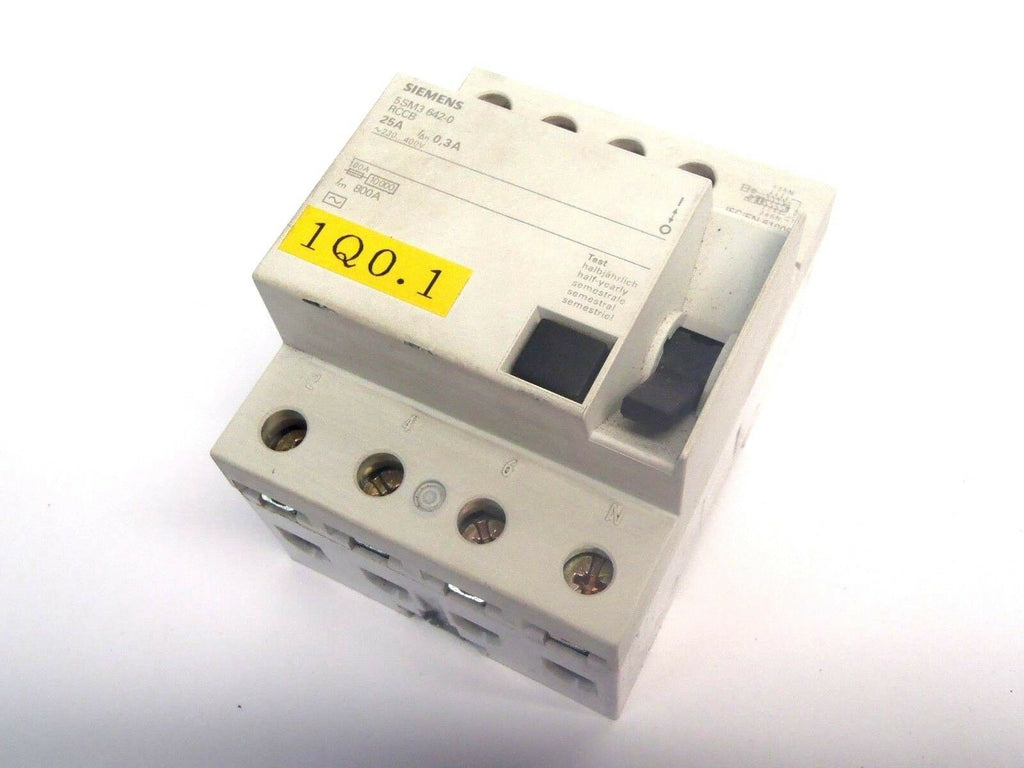

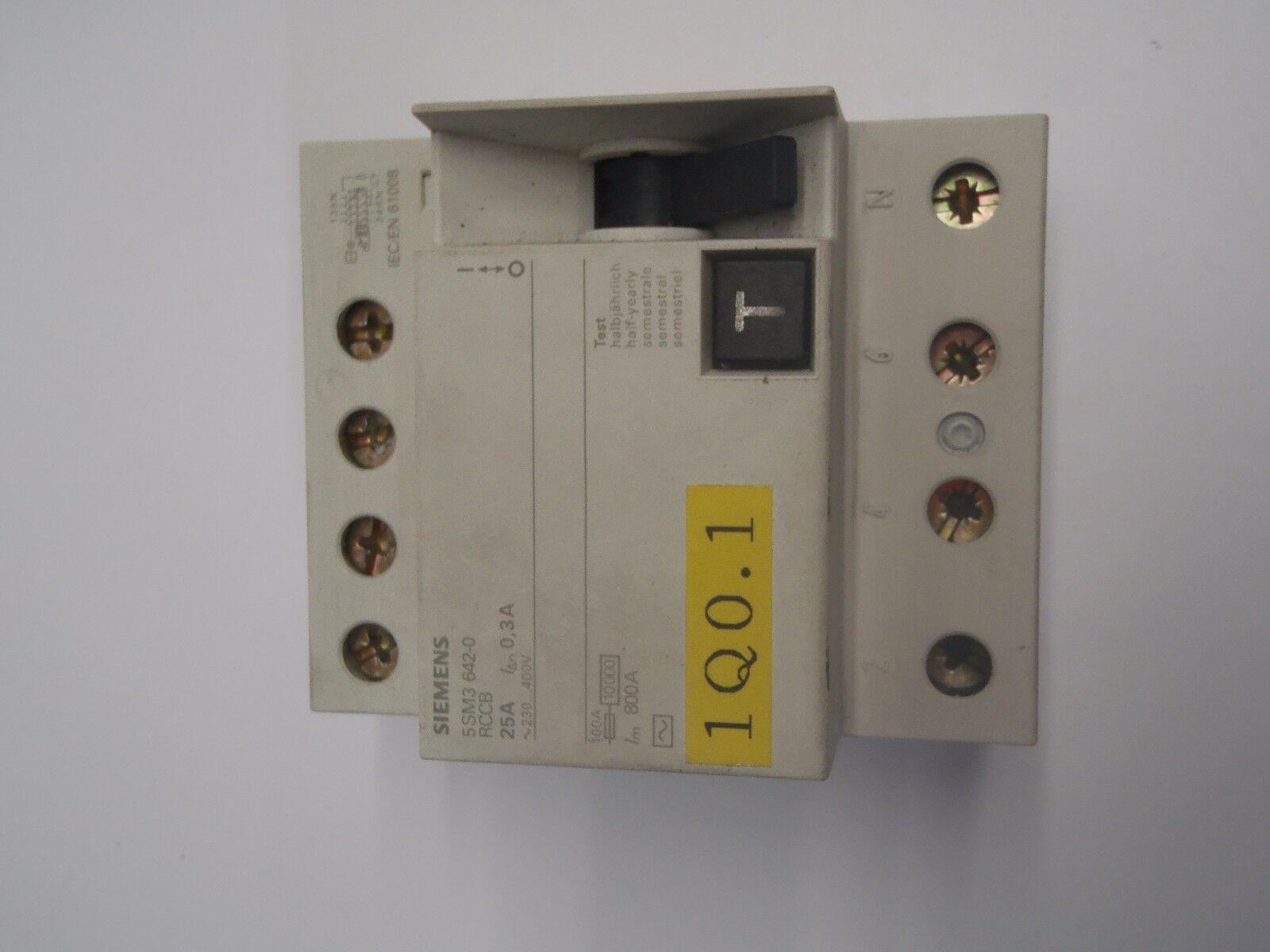

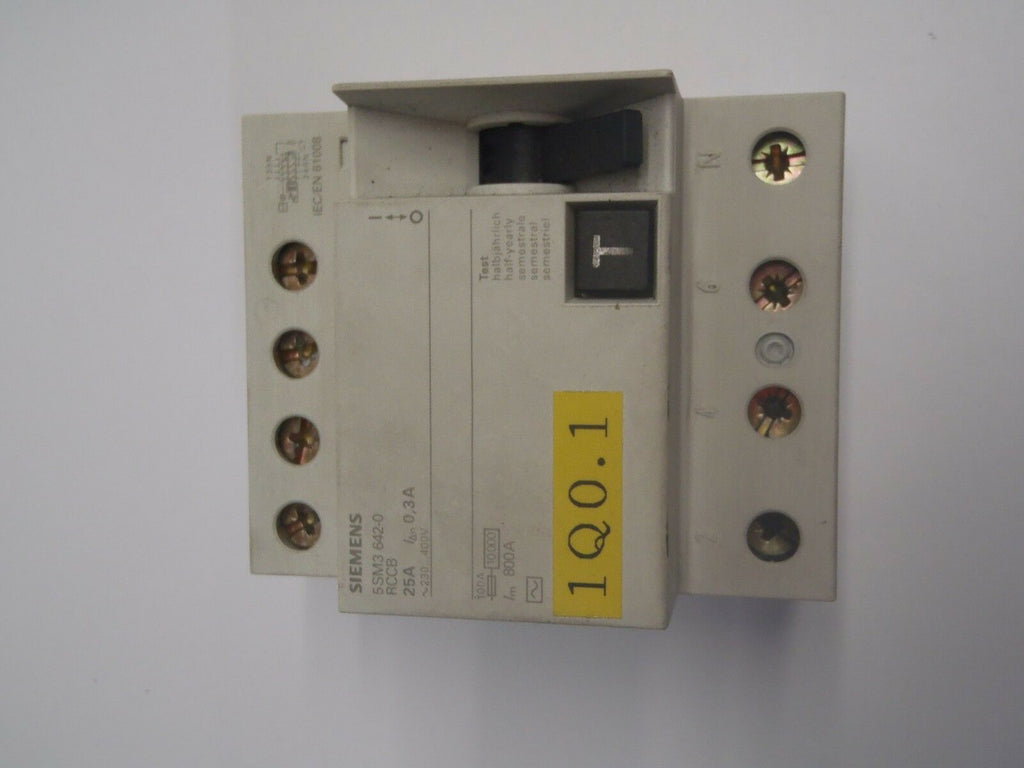

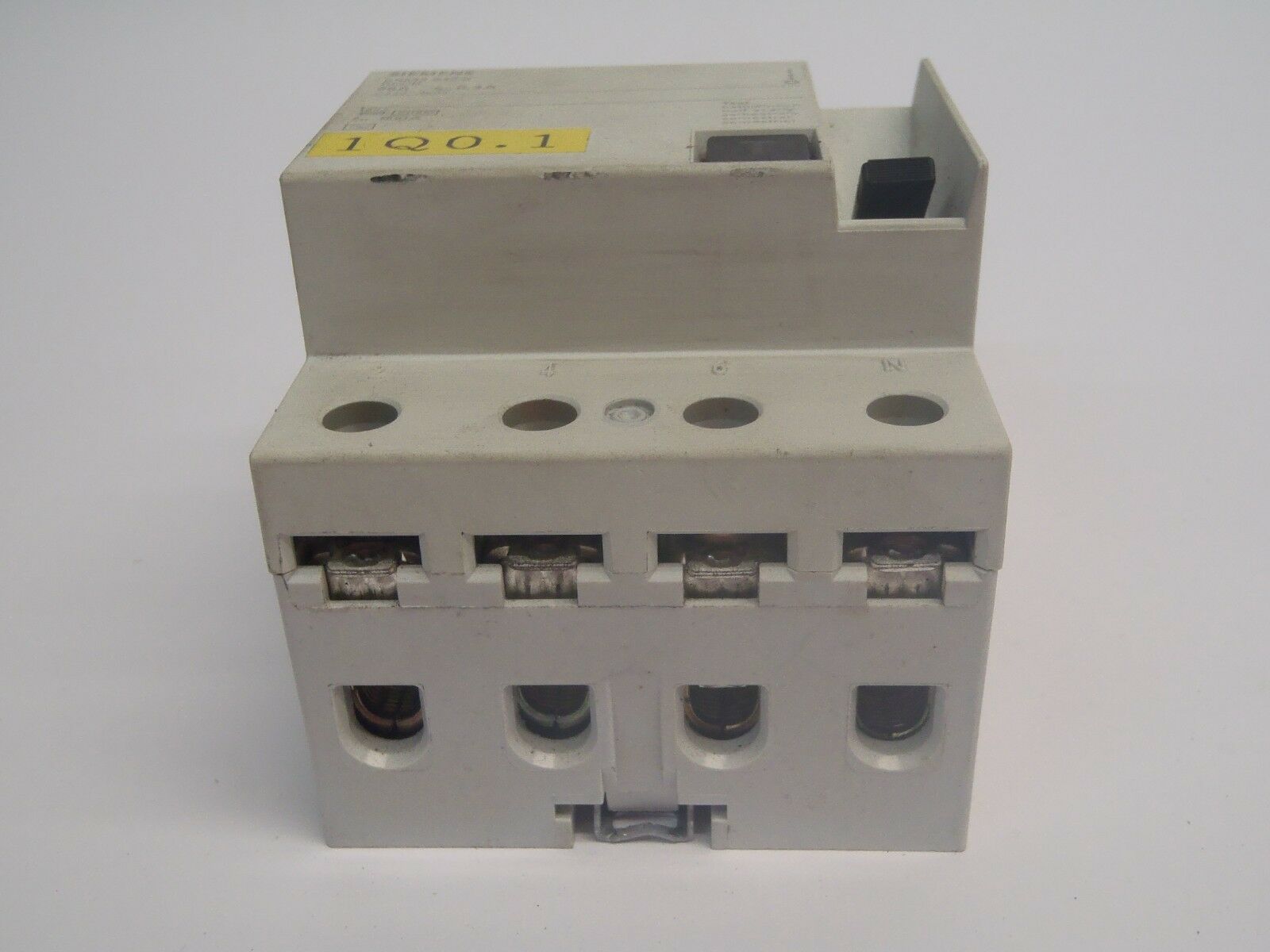

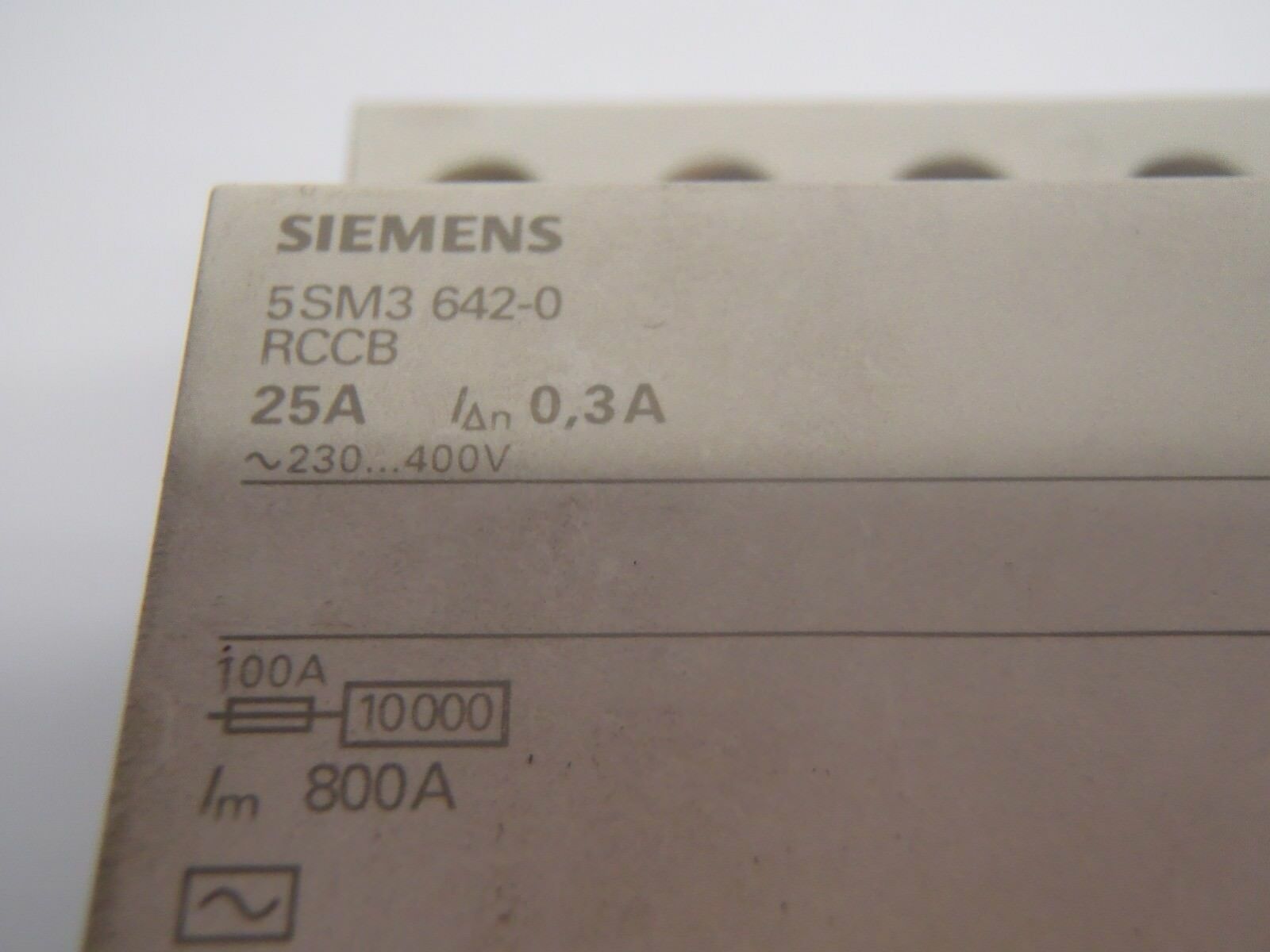

Condition Description: Used unit from working machine. Untested, but believed to be fully functioning therefore including a 30 day DOA warranty. Item as shown. Please see images.
Model: RCCB Circuit Breaker
MPN: 5SM3 642-0
Custom Label: 2-E6I-24184
Specifications
| Brand | Siemens |
|---|---|
| Catalog Number | 5SM3642-0 |
| Product Type | Residual Current Operated Circuit Breaker (RCCB) |
| Type | AC, 4-Pole |
| Rated Current | 25 A |
| Rated Residual Current | 300 mA |
| Rated Voltage | 400 V AC |
| Rated Frequency | 50 Hz |
| Rated Breaking Capacity | 0.8 kA |
| Degree of Protection | IP20 |
| Module Width | 4 Modules (72 mm) |
| Mounting Type | DIN Rail |
| Connector Cross-Section | 1.5 to 25 mm² |
| Terminal Tightening Torque | 2.5 to 3 N·m |
| Manufacturer Status | Discontinued; replacement 5SV4642-0 |
