Description

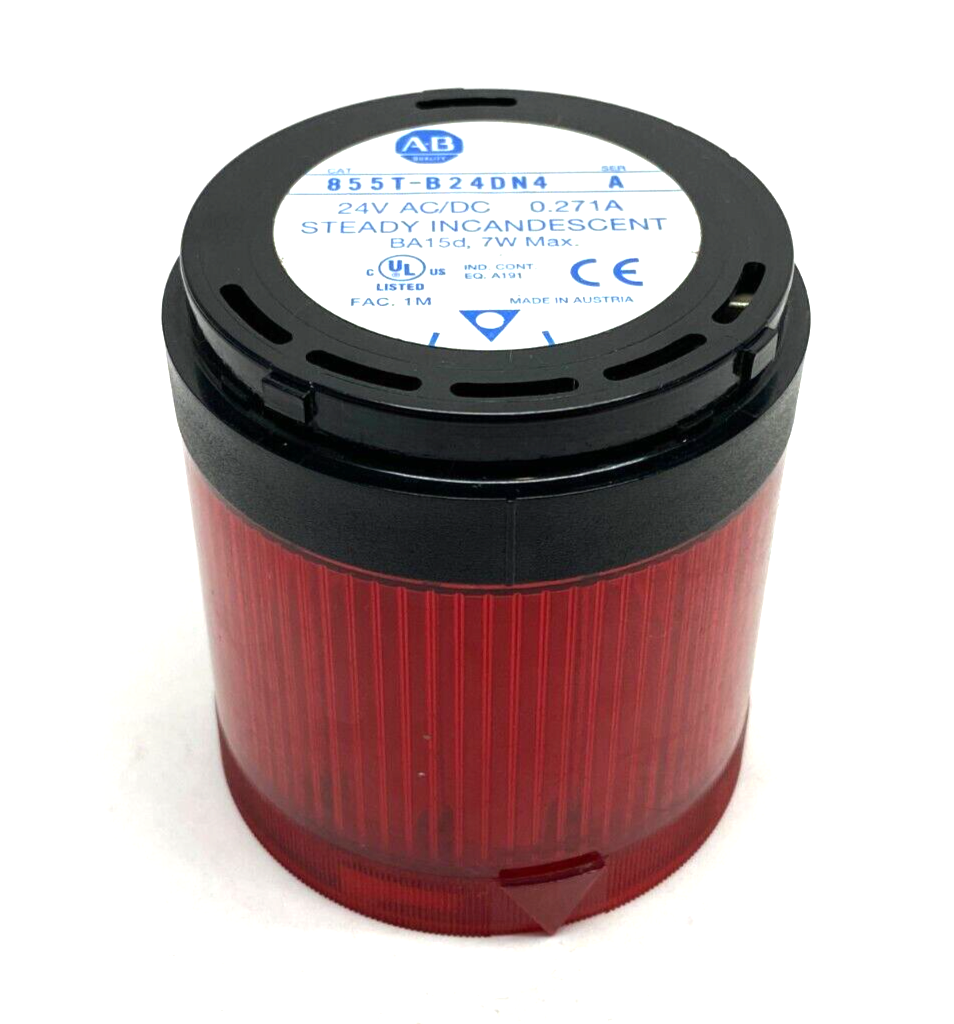

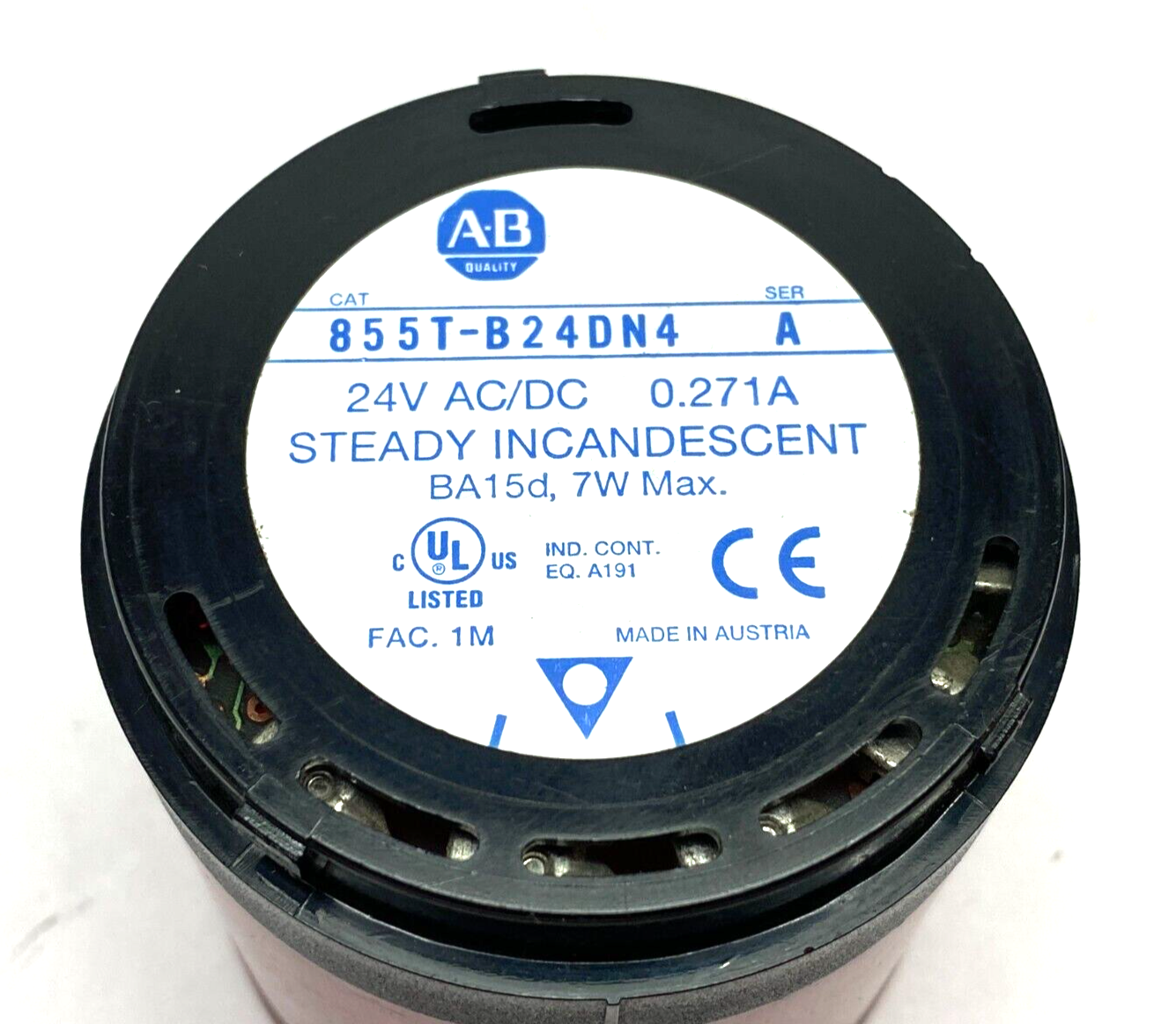

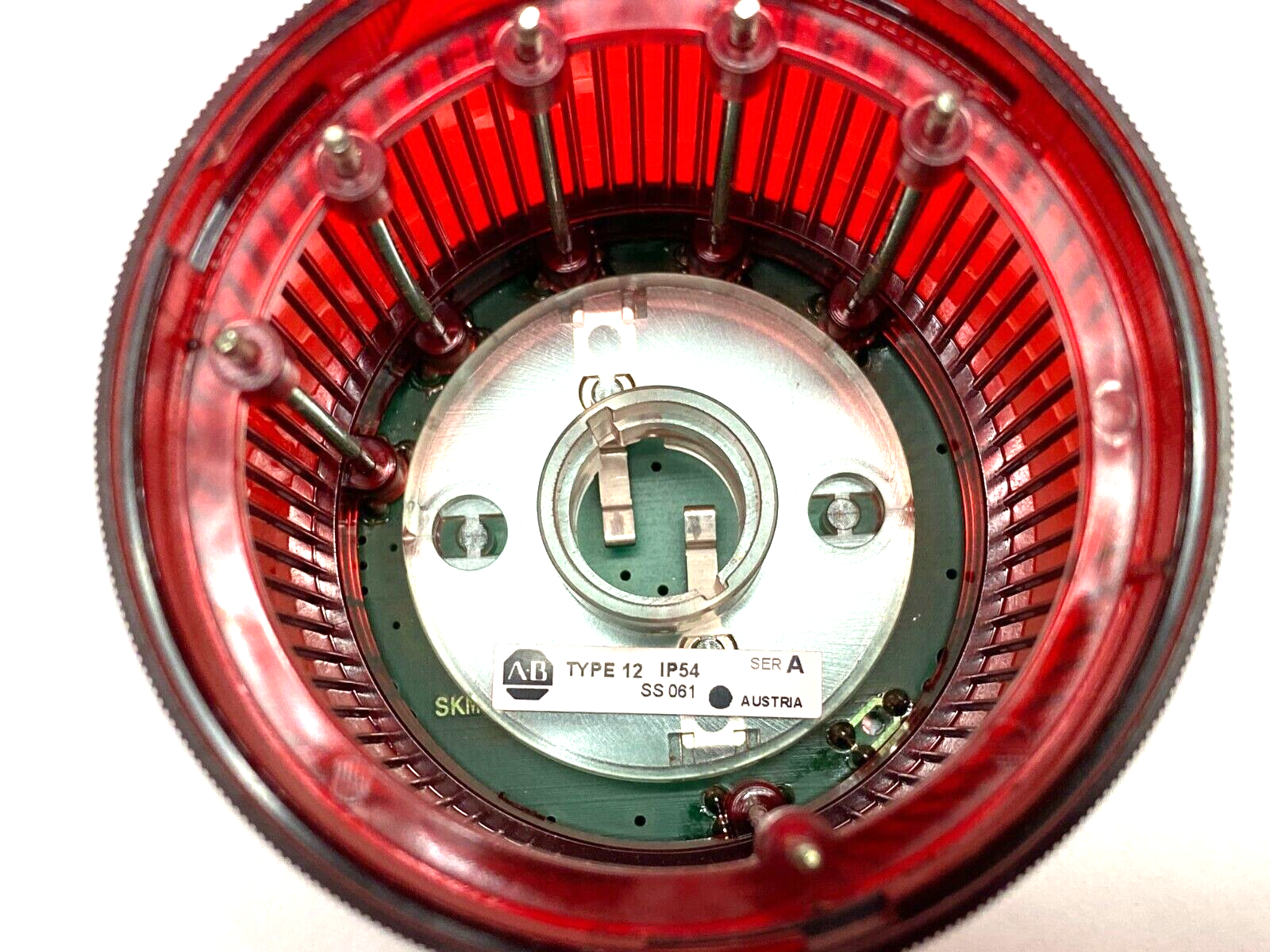

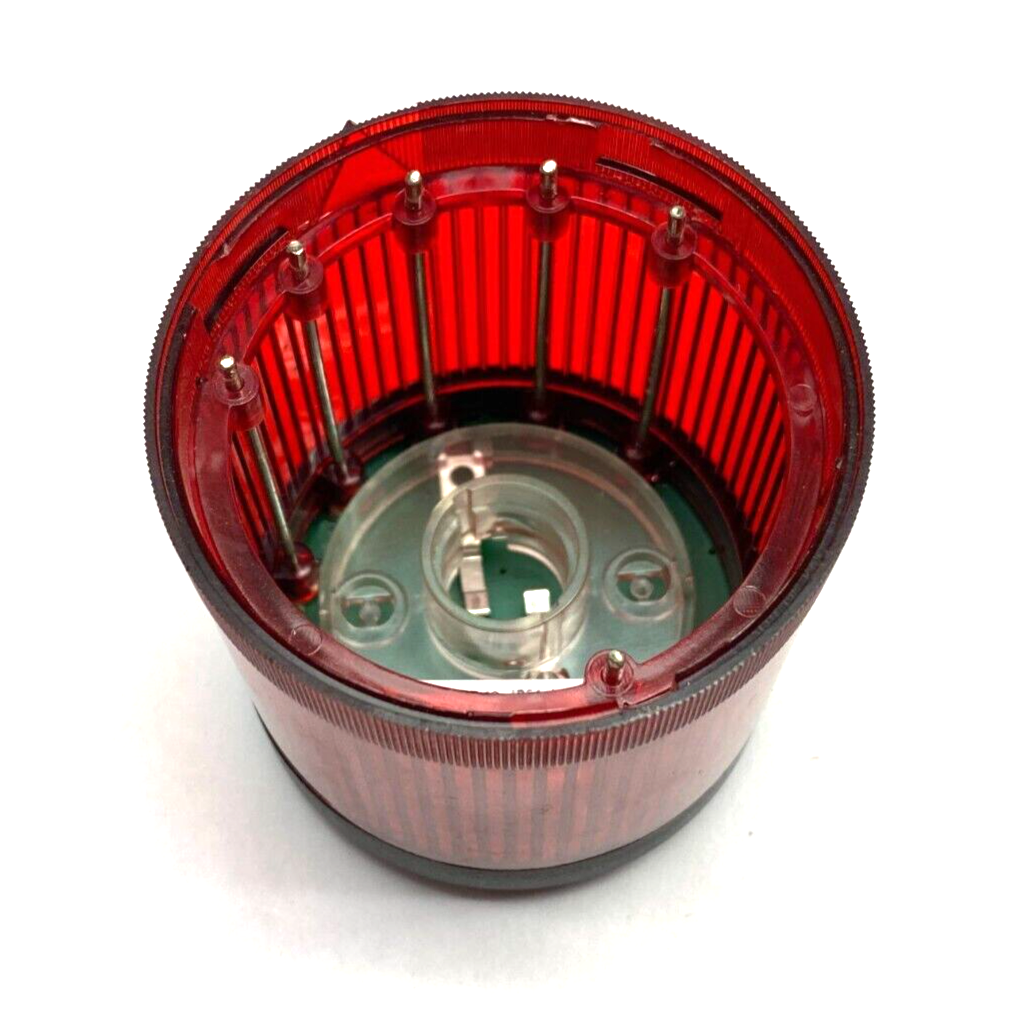

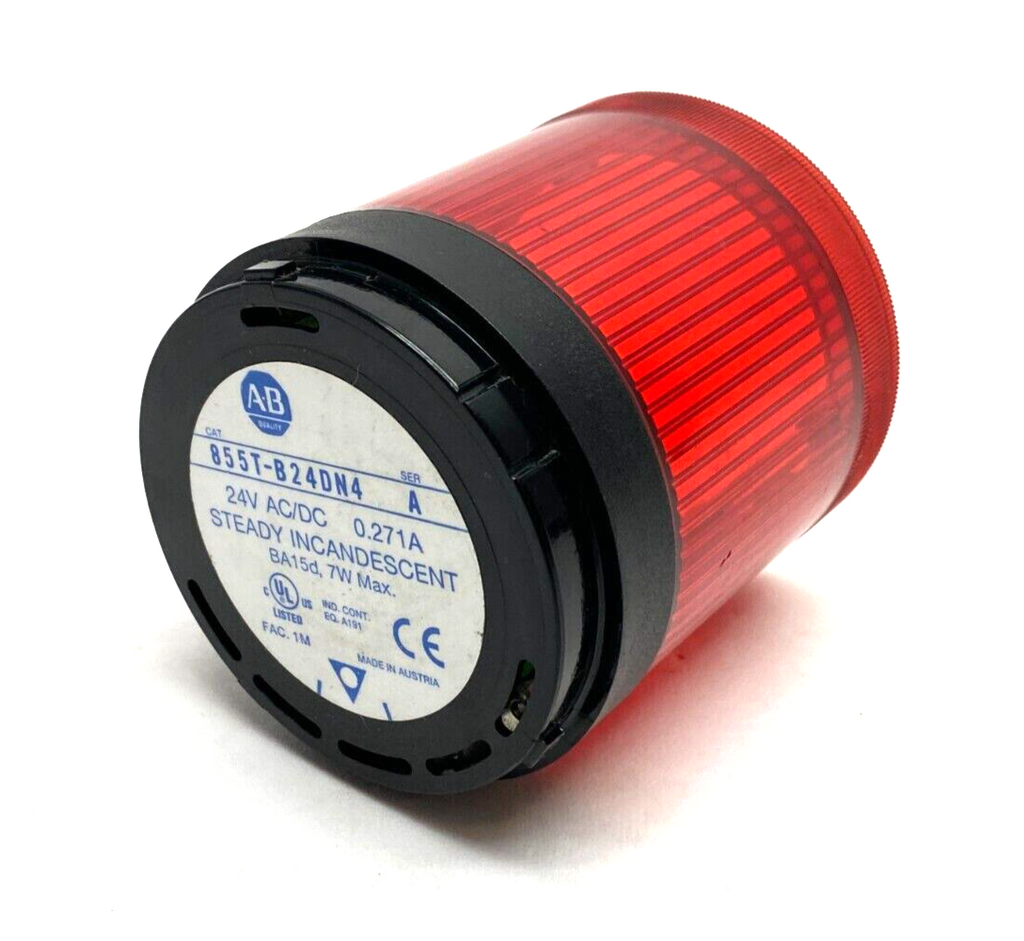

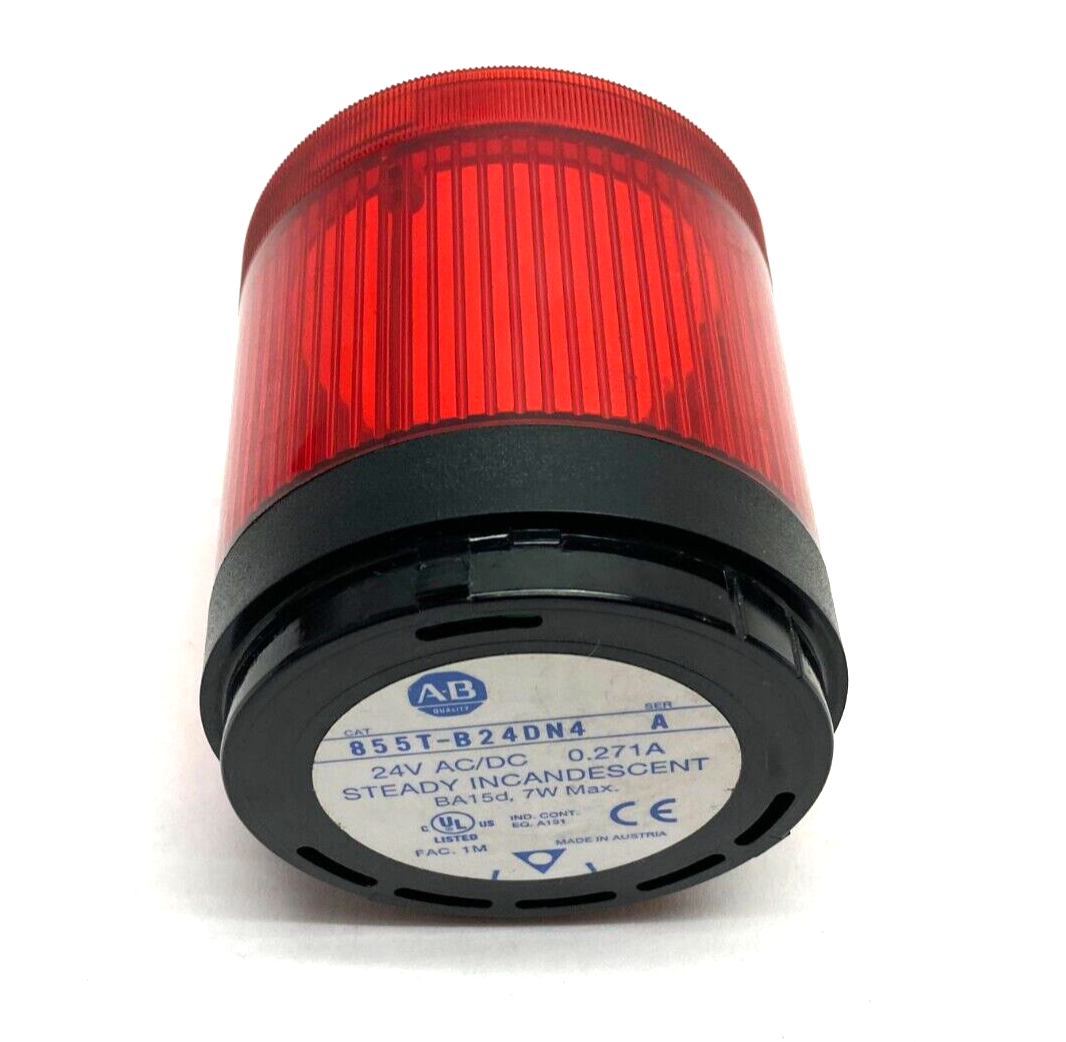

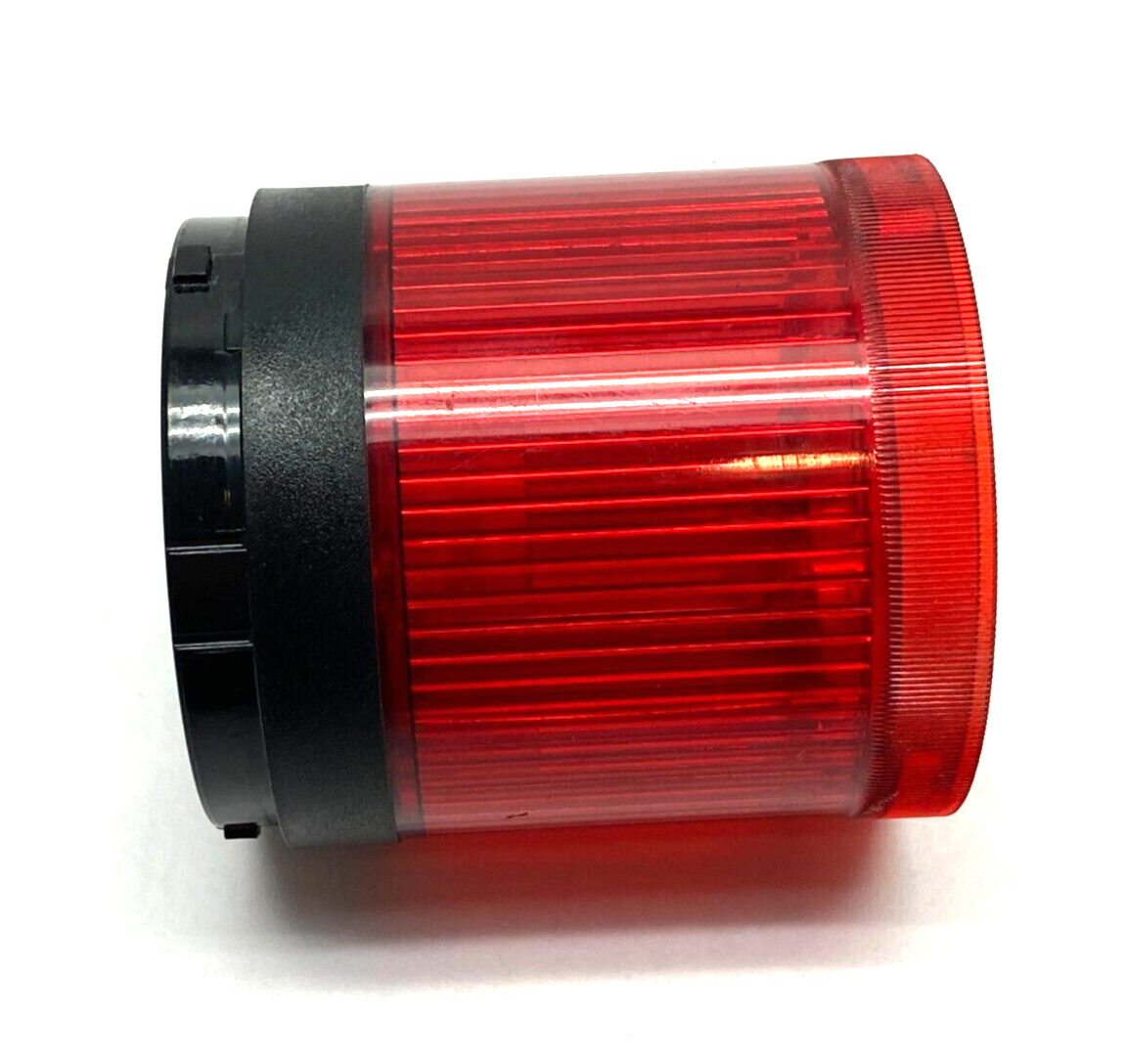

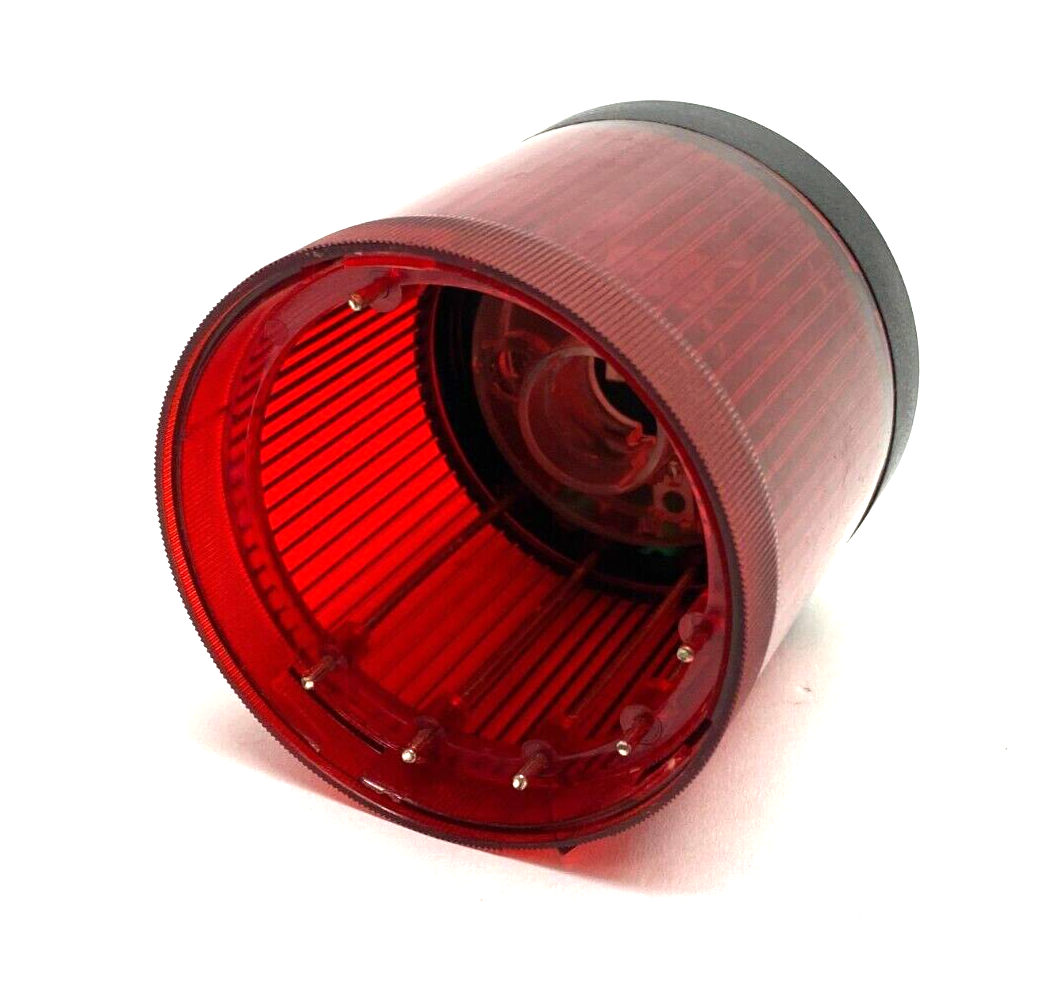

Allen Bradley 855T-B24DN4 Ser. A Steady Incandescent Stack Light Red 24V NO BULB
Condition: Used
Condition Description: Used item as seen in the images. No additional items are included in the sale. 30-day warranty included.
Custom Label: 6-QQ3C-84352-JL-CS
Specifications
| Brand | Allen-Bradley |
|---|---|
| Catalog Number | 855T-B24DN4 |
| Series | A |
| Product Type | Stack Light Module |
| Product | 70 mm Stack Light - Red Lens |
| Module Type | Steady Incandescent |
| Operating Voltage | 24V AC/DC (±10%) |
| Current Consumption | 271 mA |
| Light Output | 2.5 MSCP, 31.4 Lumens |
| Lamp Life | 7000 hours |
| IP Rating | IP65 / NEMA 4X |
| Outer Diameter | 70 mm |
| Housing Color | Black |
| Lens Color | Red |
| Max Leakage Current Absorption | 3 mA |
| Recommended Wire Size | 0.5 mm² |
