Description

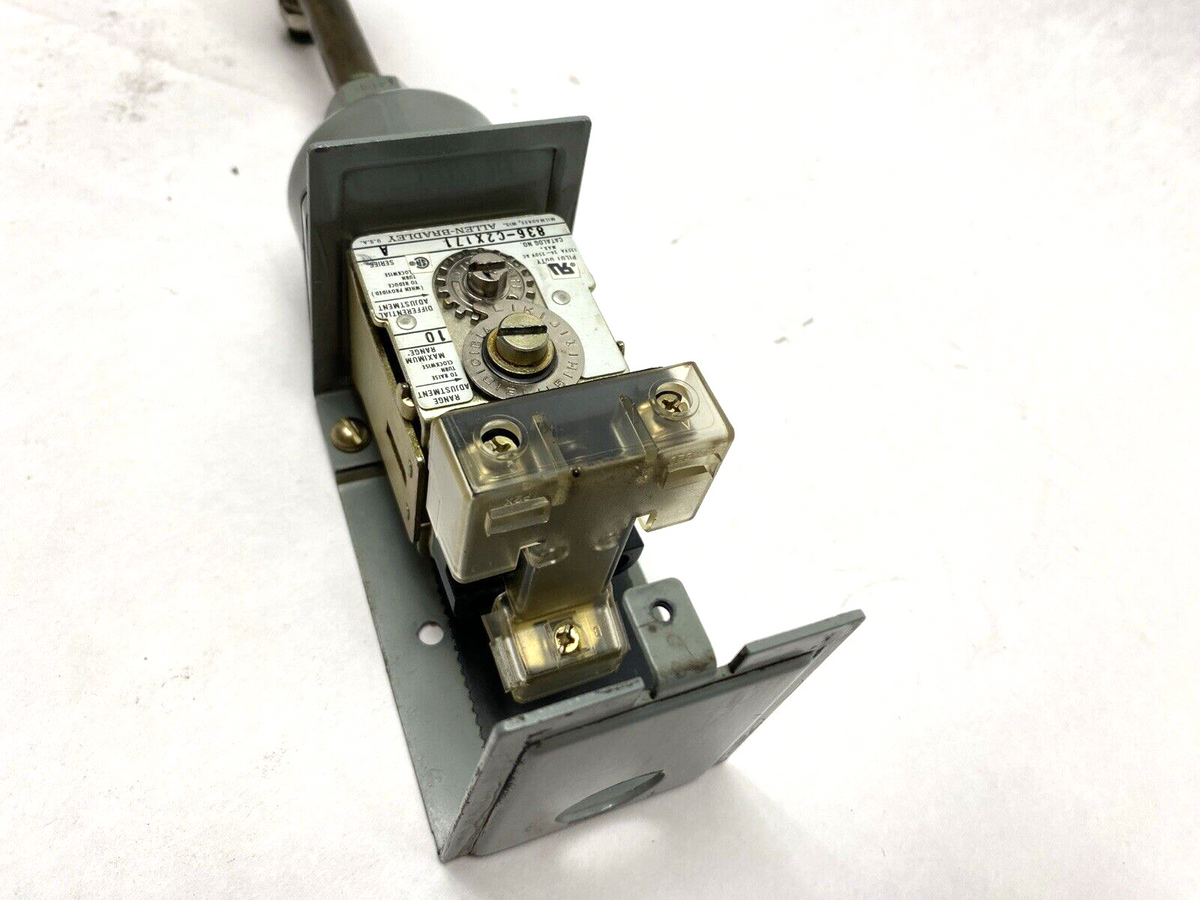

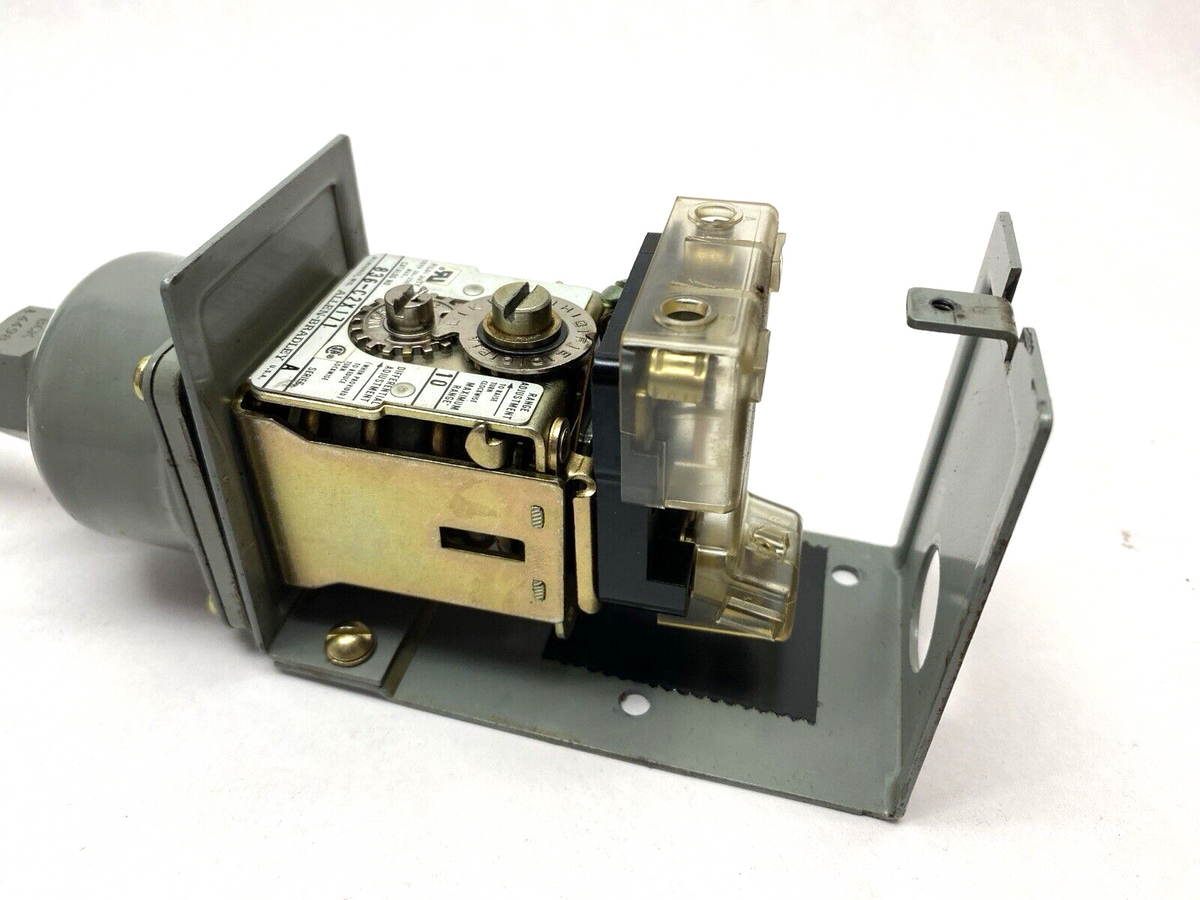

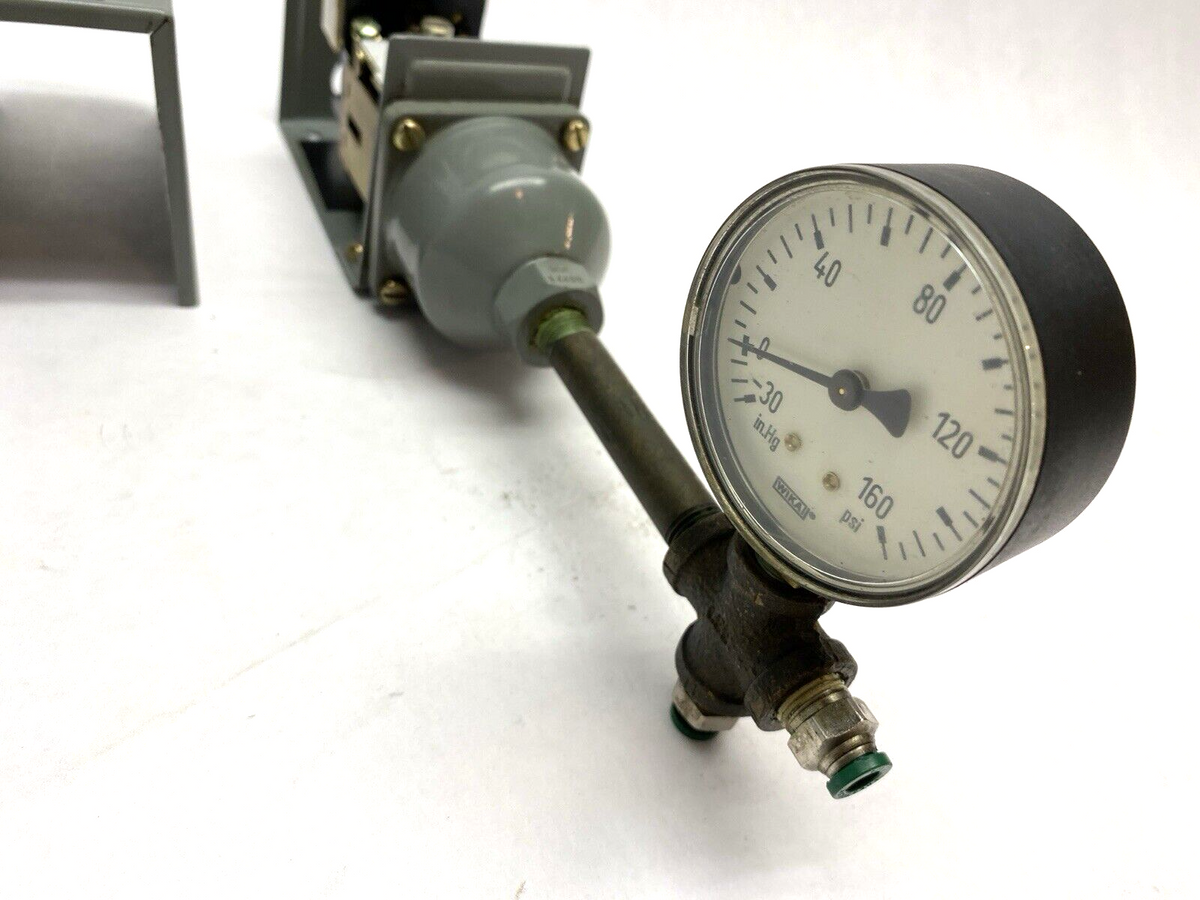

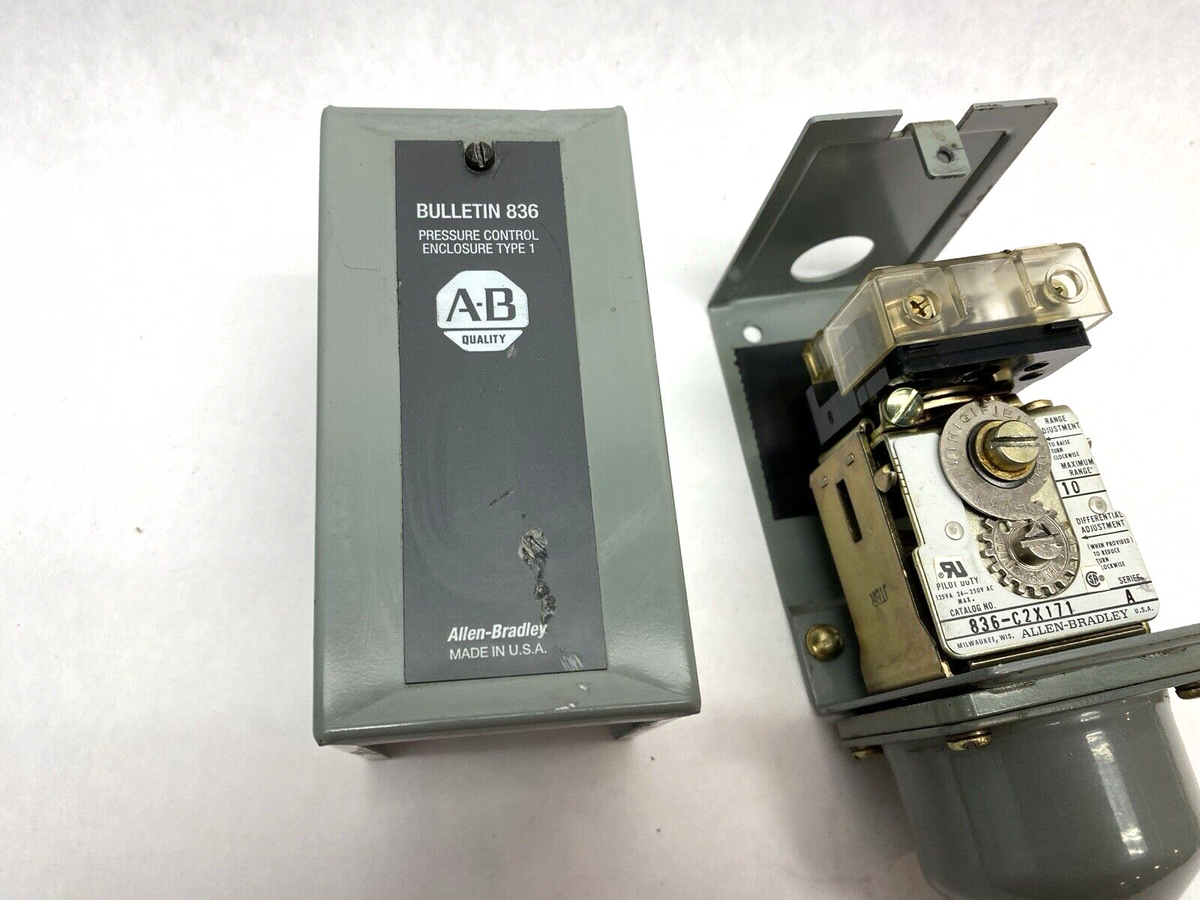

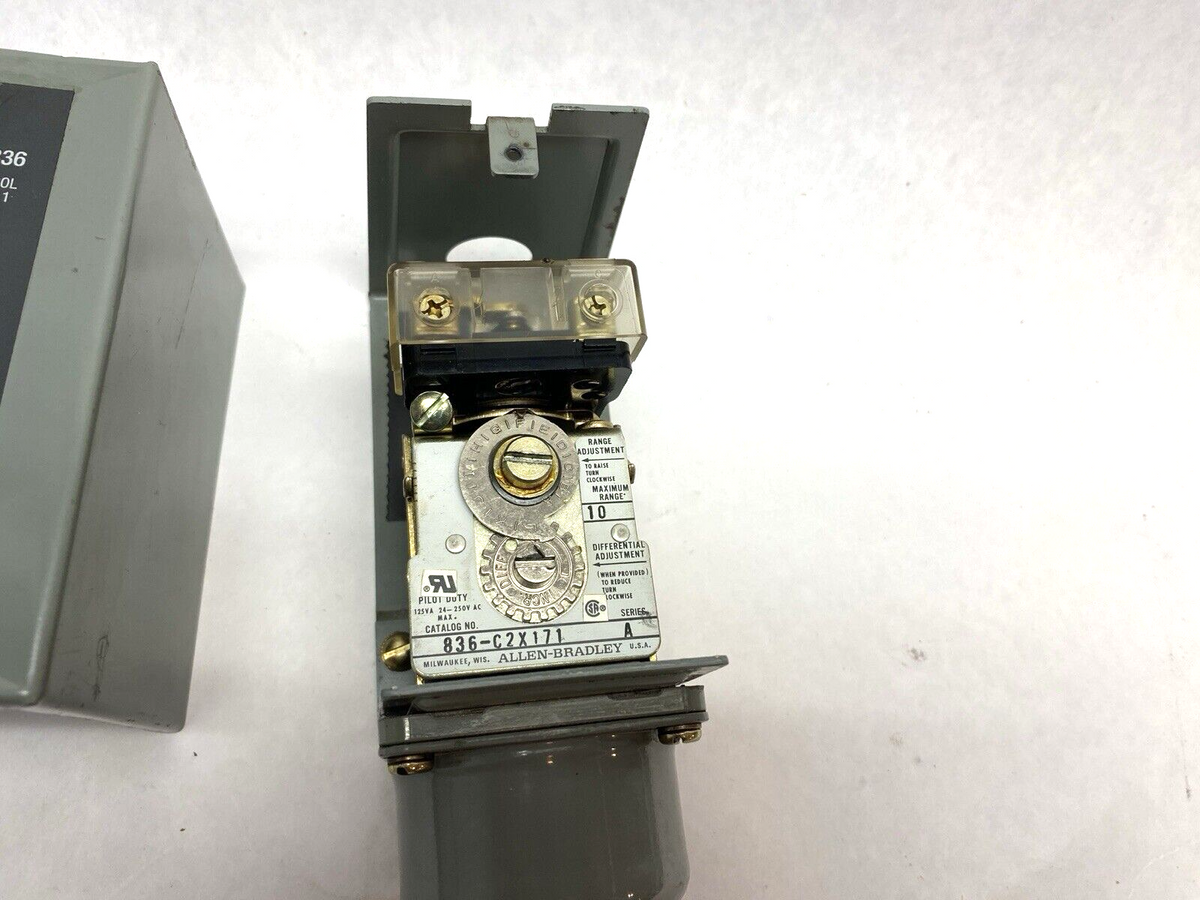

Allen Bradley 836-C2X171 Pressure Control Switch Bulletin 836
Condition: Used
Condition Description: Used item as seen in the images. No additional items are included in the sale. 30-day warranty included.
Model: Allen Bradley Bulletin 836
Custom Label: 5-HH2A-91342-MY-AP
Specifications
| Brand | Allen-Bradley |
|---|---|
| Catalog Number | 836-C2X171 |
| Product Type | Electromechanical Pressure Control Switch |
| Type | Electro-Mech Pressure Control Switch, Style C |
| Supply Voltage | 600V |
| Control Circuit Rating | AC-125 VA, 24–250V |
| Pressure Connection | 1/4 in NPTF or 3/8 in NPSF |
| Operating Range | 30 in Hg Vacuum to 10 psi |
| Adjustable Differential | 0.4 psi |
| Max Line Pressure | 65 psi |
| Max Surge Pressure | 75 psi |
| Actuator | External Bellows (Copper Alloy, Stainless Steel Type 316) |
| Electrical Connection | Cable Screw Gland |
| Dimensions (H×W×D) | 160 × 63.5 × 75.7 mm |
| Media | Air, Oil, Water |
