Description
Condition: New – Open box
Condition Description: New item as seen in the images. No additional items are included in the sale. 30-day warranty Included.

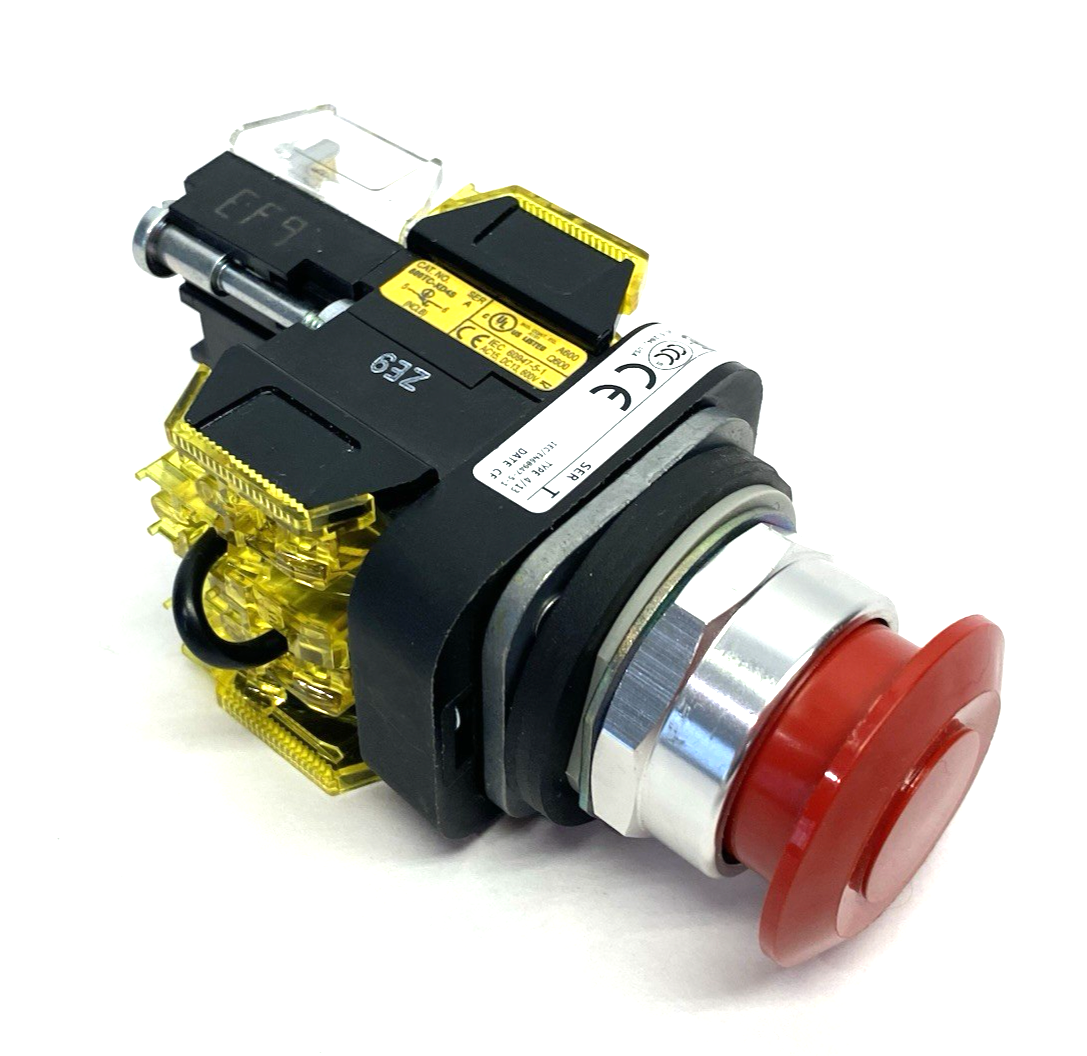

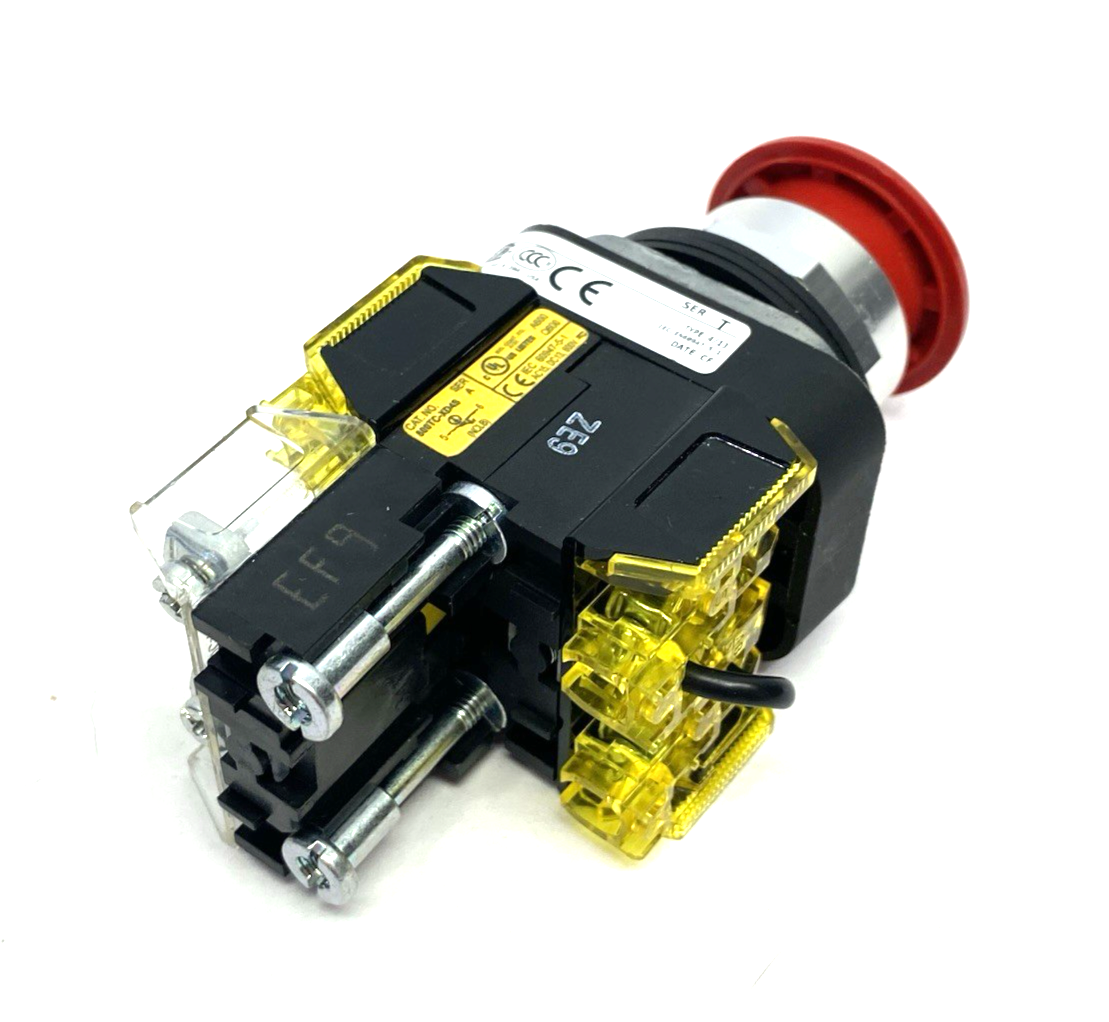

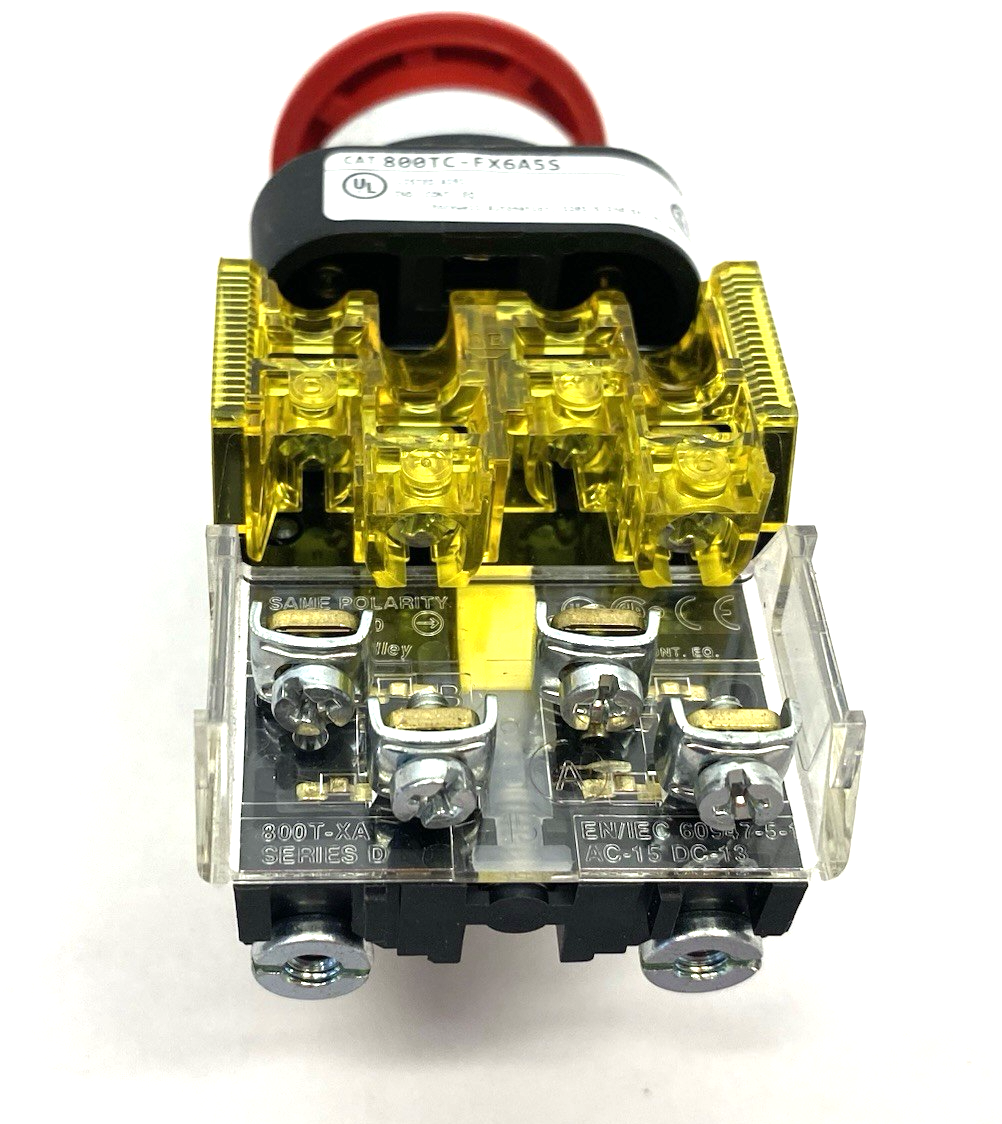

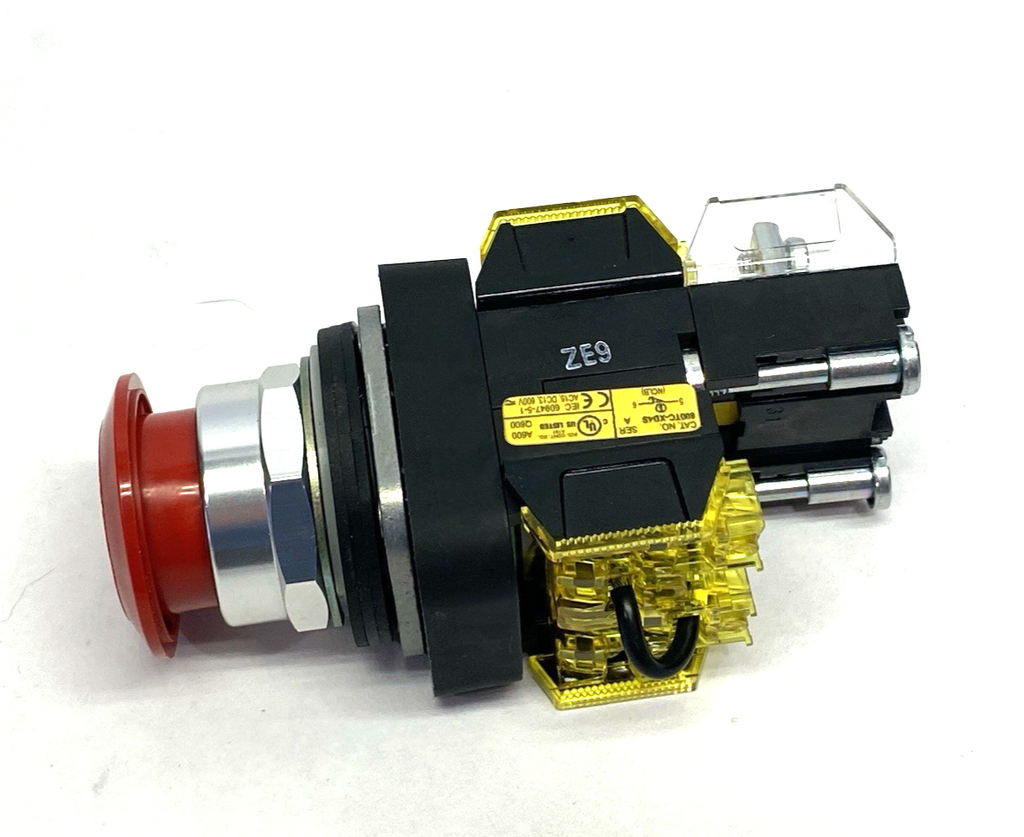

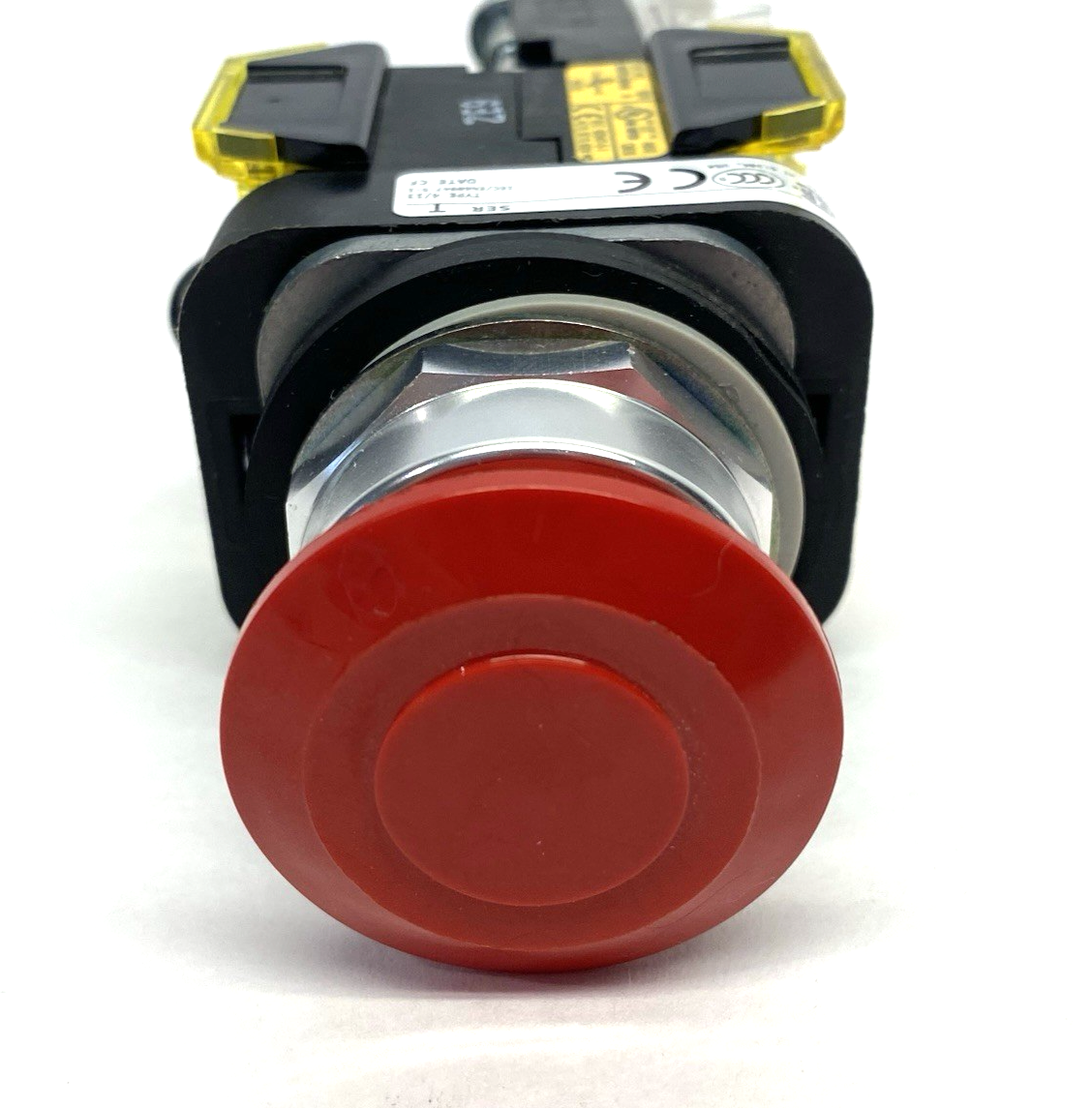

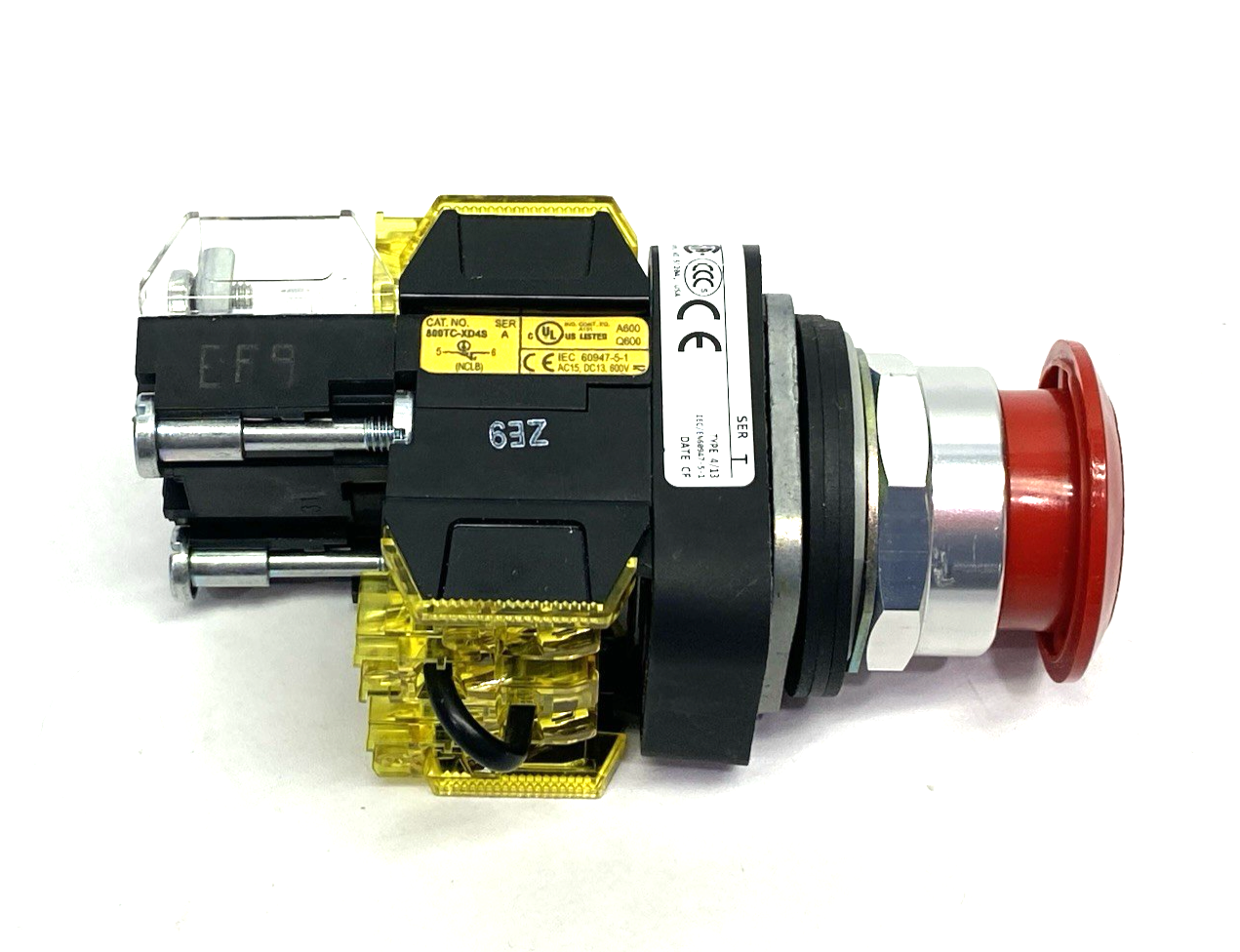

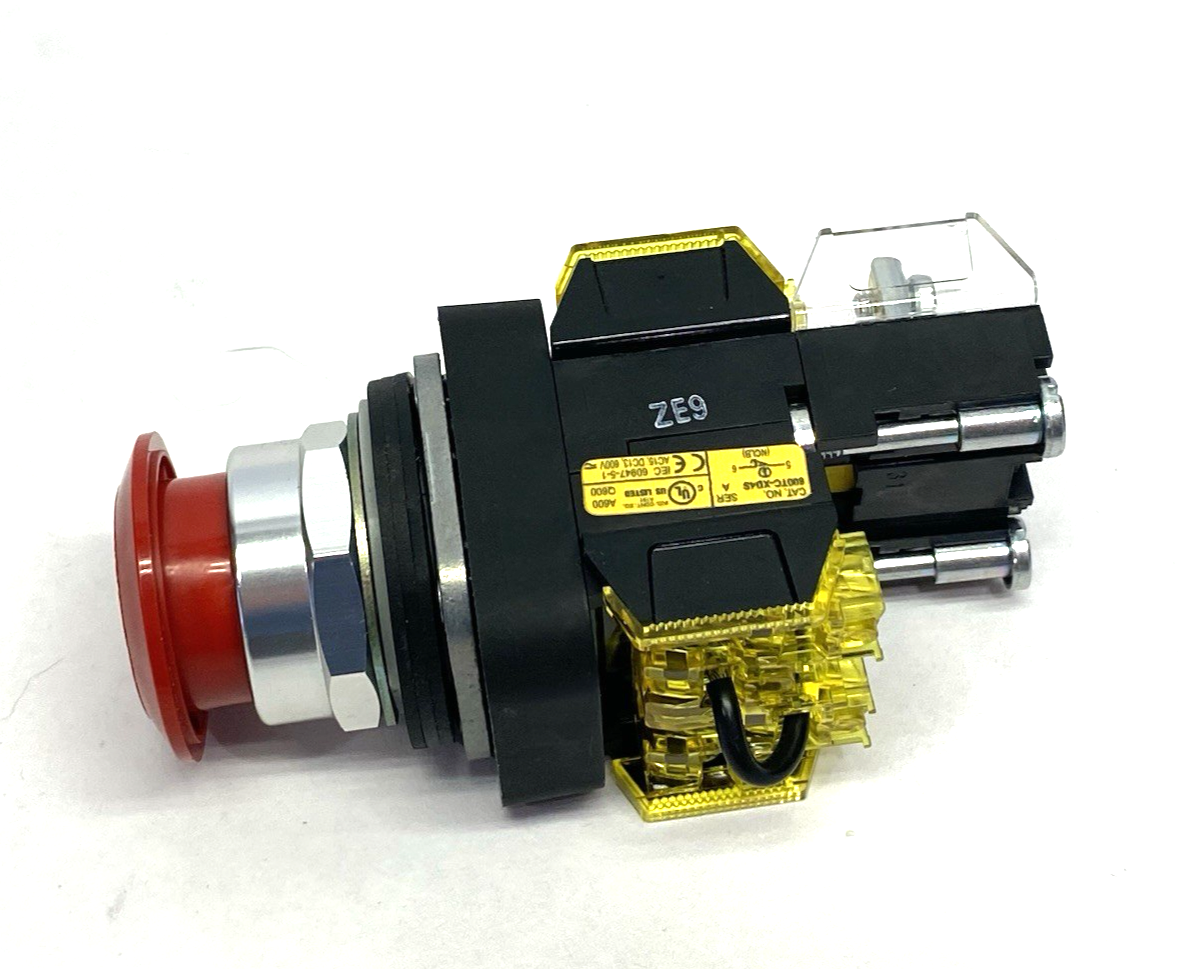

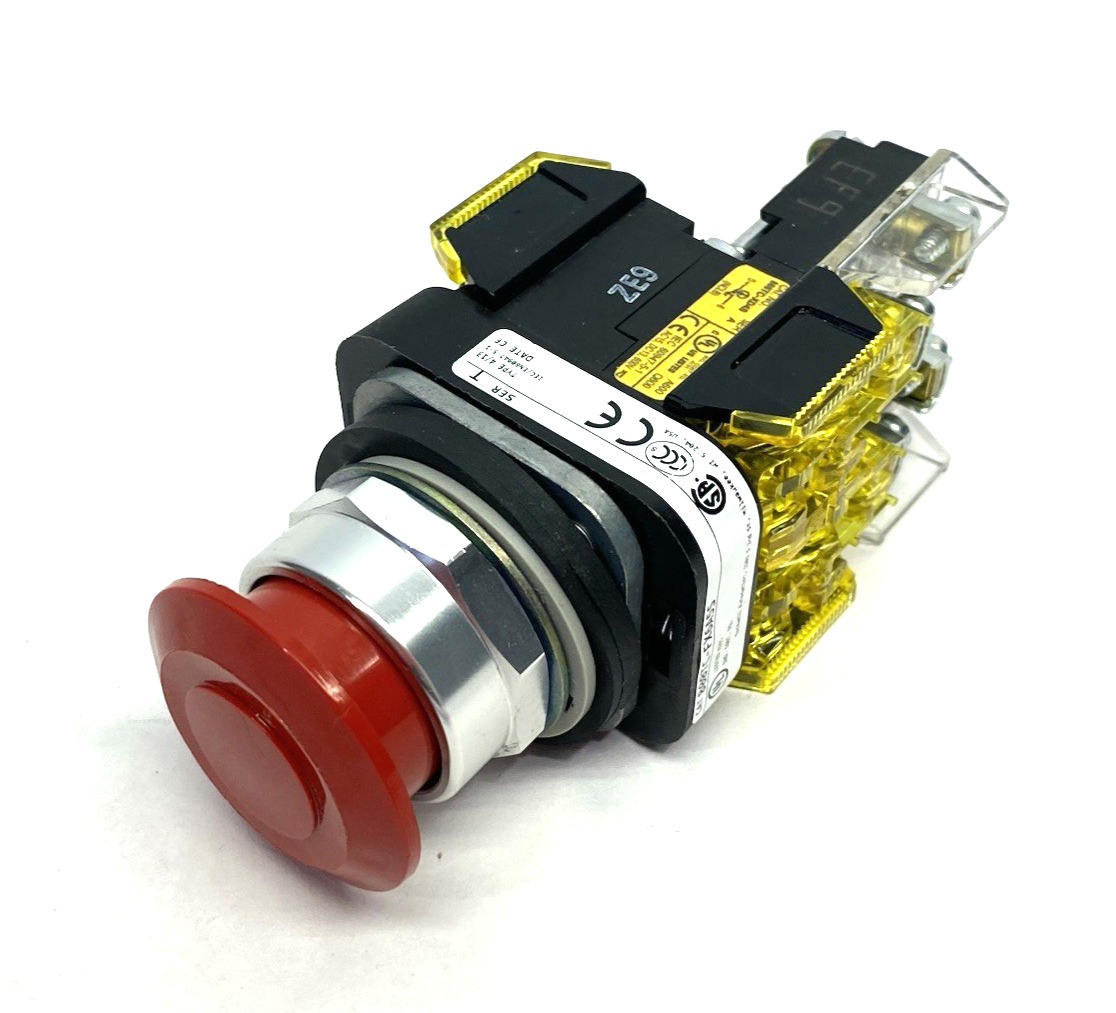

Model: Ser. T Push-Pull Emergency Stop Button Mushroom Head

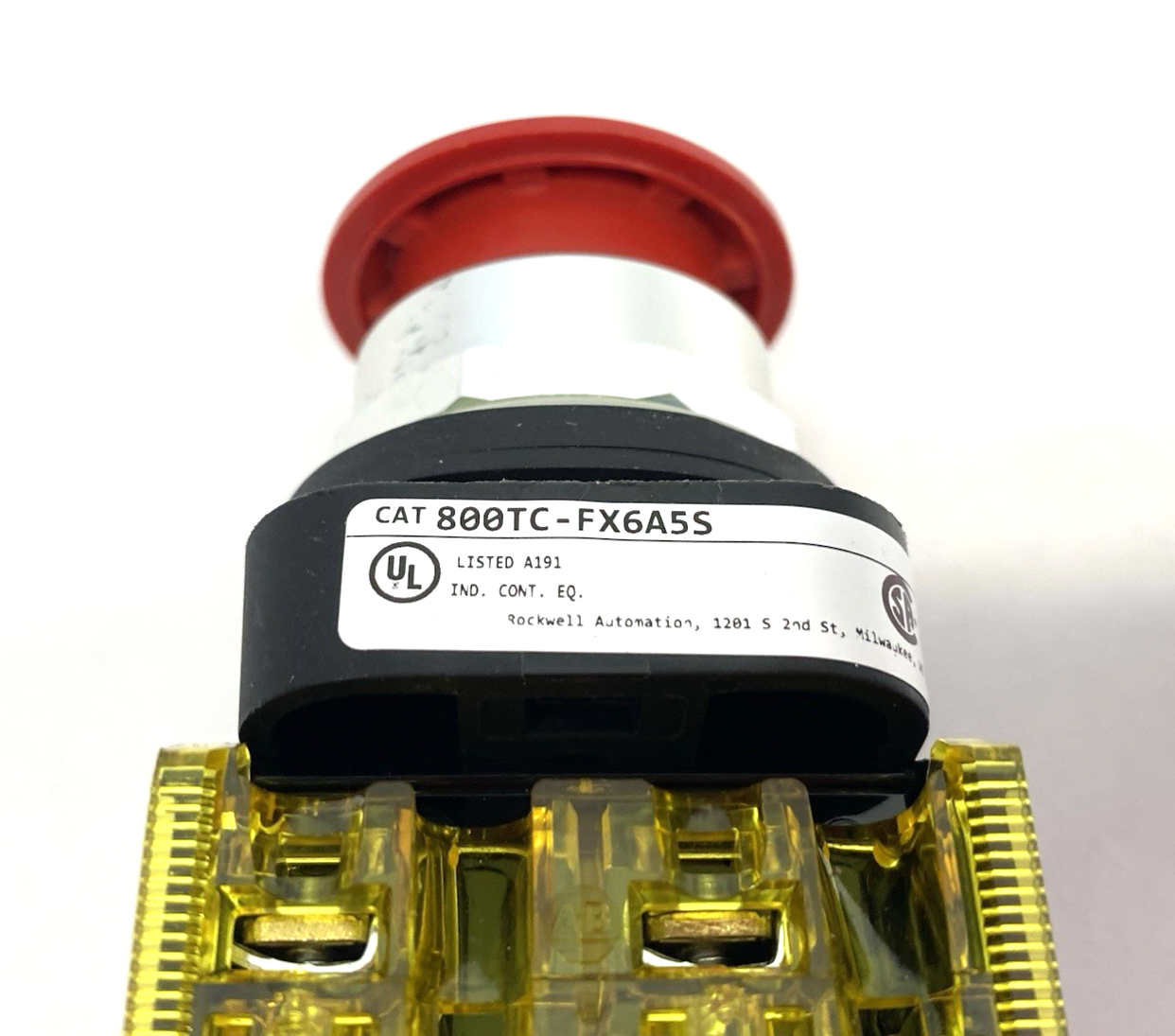

MPN: 800TC-FX6A5S
Custom Label: 6-KK3H-122226-JL-JR
Specifications
| Brand | Allen-Bradley |
|---|---|
| Catalog Number | 800TC-FX6A5S |
| Series | T |
| Product Type | Push-Pull Device |
| Type | 30mm Push-Pull Device, Mushroom Head |
| Operator Function | 2-Position, Maintained |
| Contact Configuration | 2-NCLB Self-Monitoring |
| Contact Voltage Rating | 600V AC / 600V DC (max) |
| Current Rating | 10 A |
| Utilization Category | AC-15 / Q600, DC-13 |
| Cap Material & Color | Plastic, Red |
| Connection Type | Screw Terminals, 14–18 AWG (×2) |
| Mounting Hole Diameter | 30.5 mm |
| NEMA Enclosure Compatibility | 1, 4, 12, 13 |
| Mechanical Design Life | 250,000 cycles (min) |
| Electrical Design Life | 1,000,000 cycles (max load) |
