Description
Condition: Used
Condition Description: Used item as seen in the images. No additional items are included in the sale. 30-day warranty included.

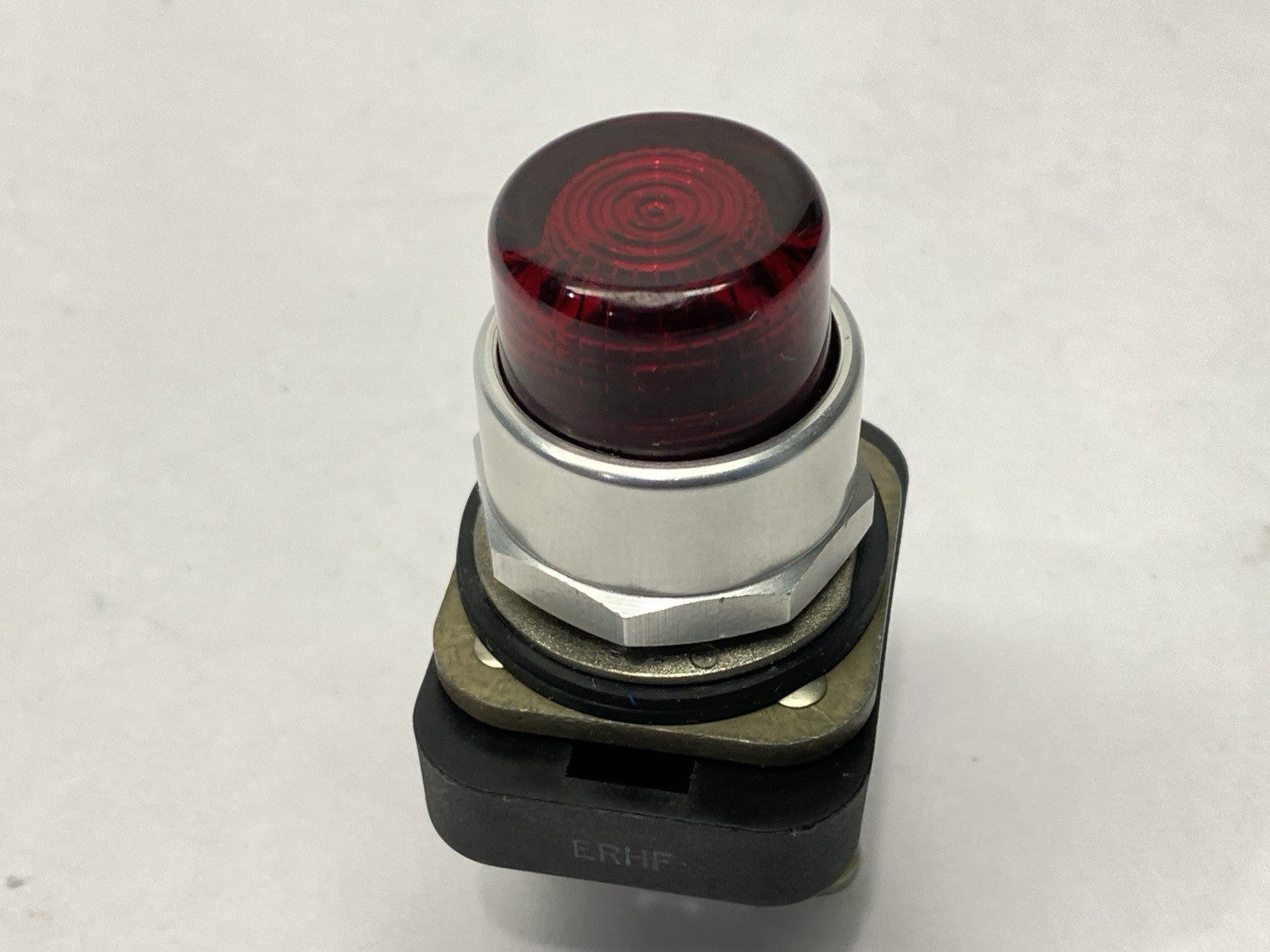

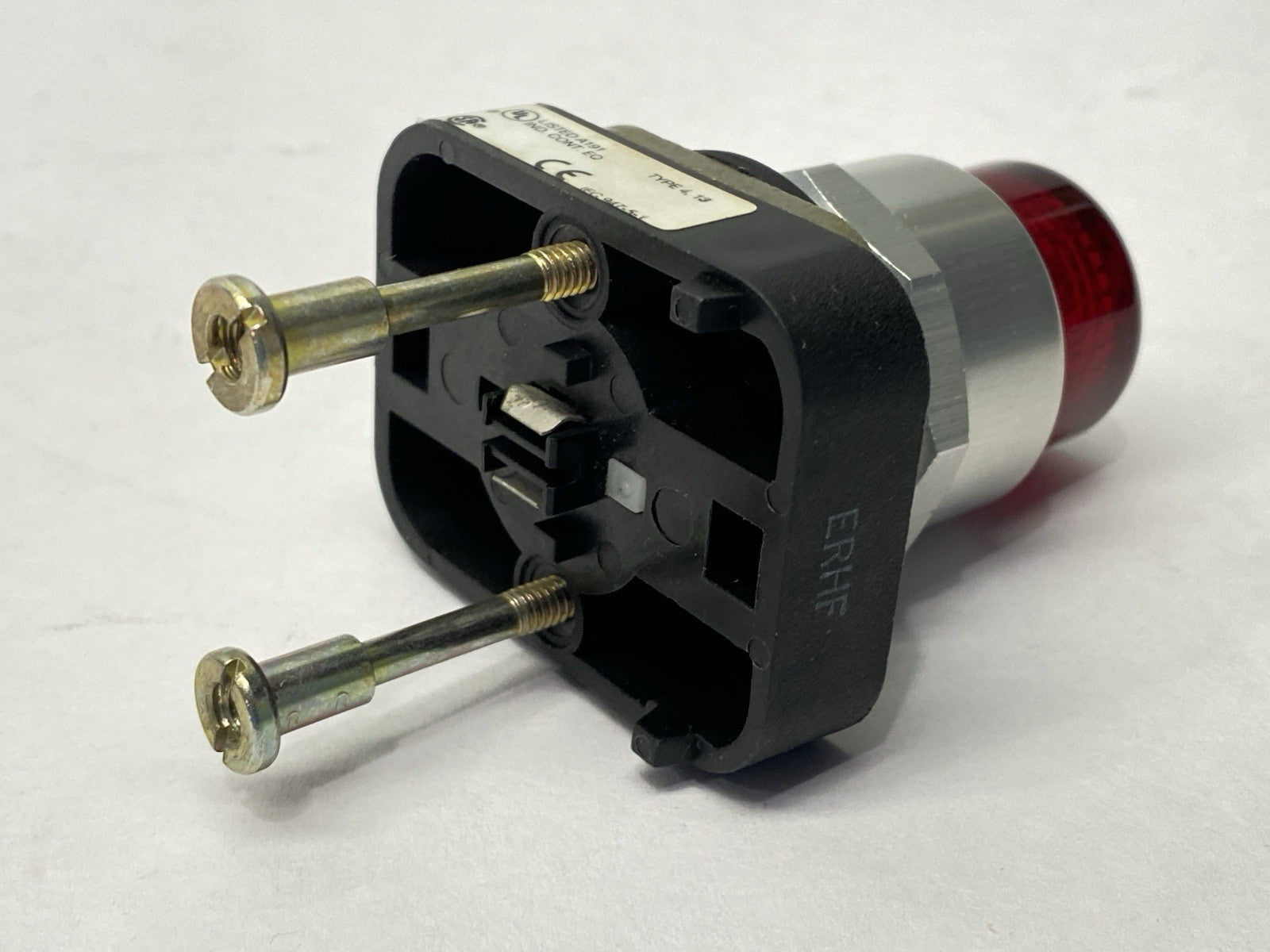

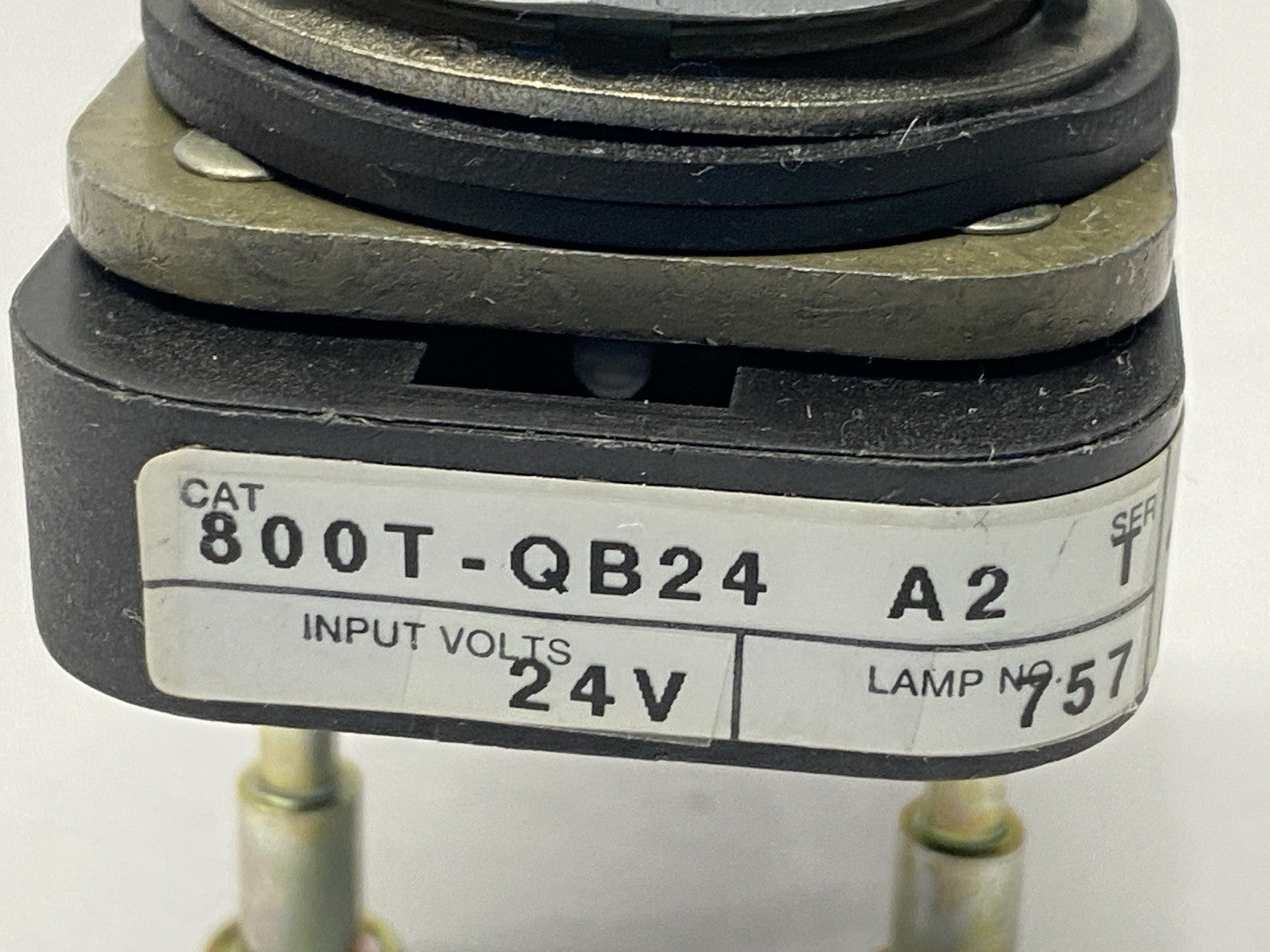

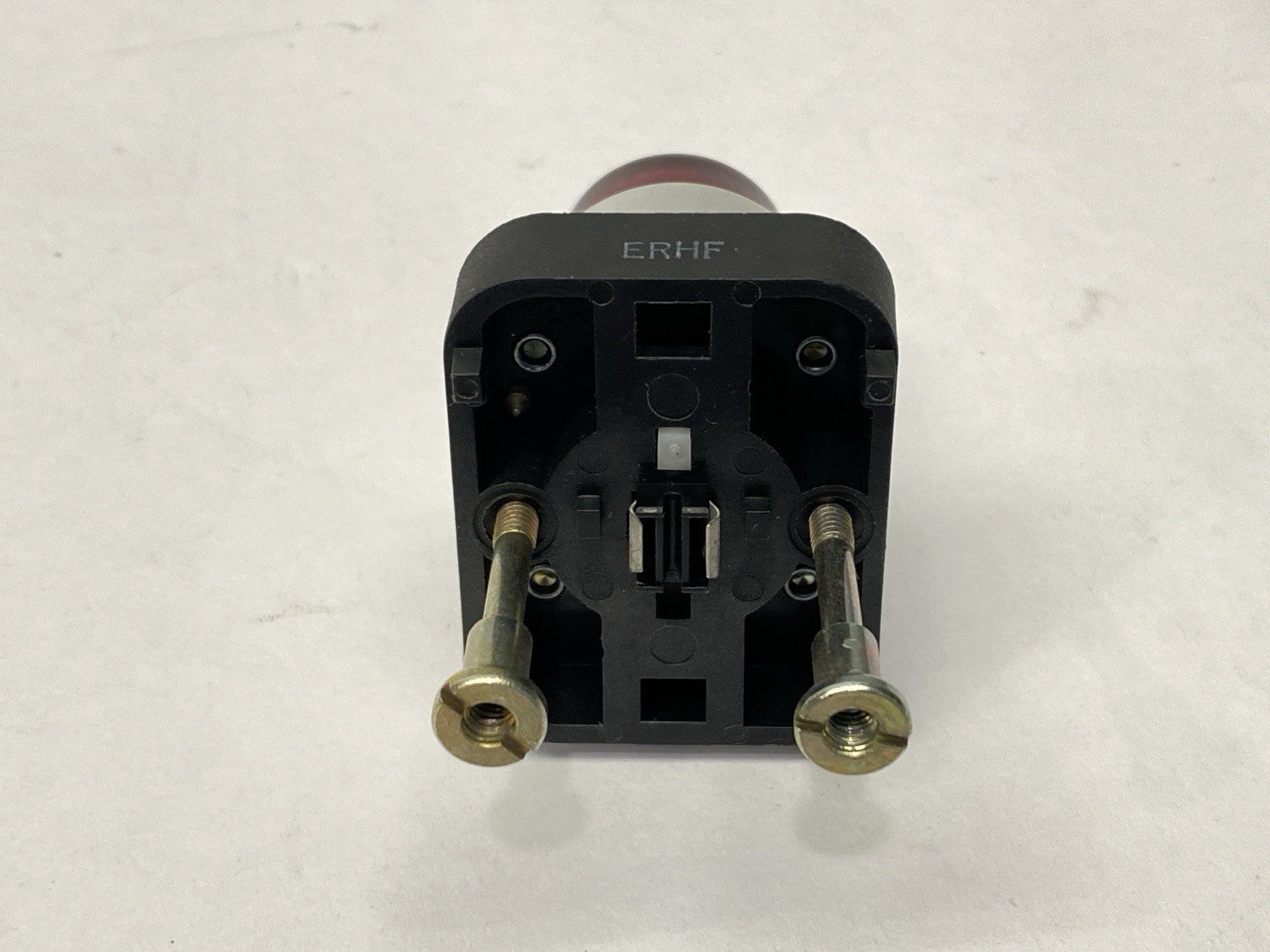

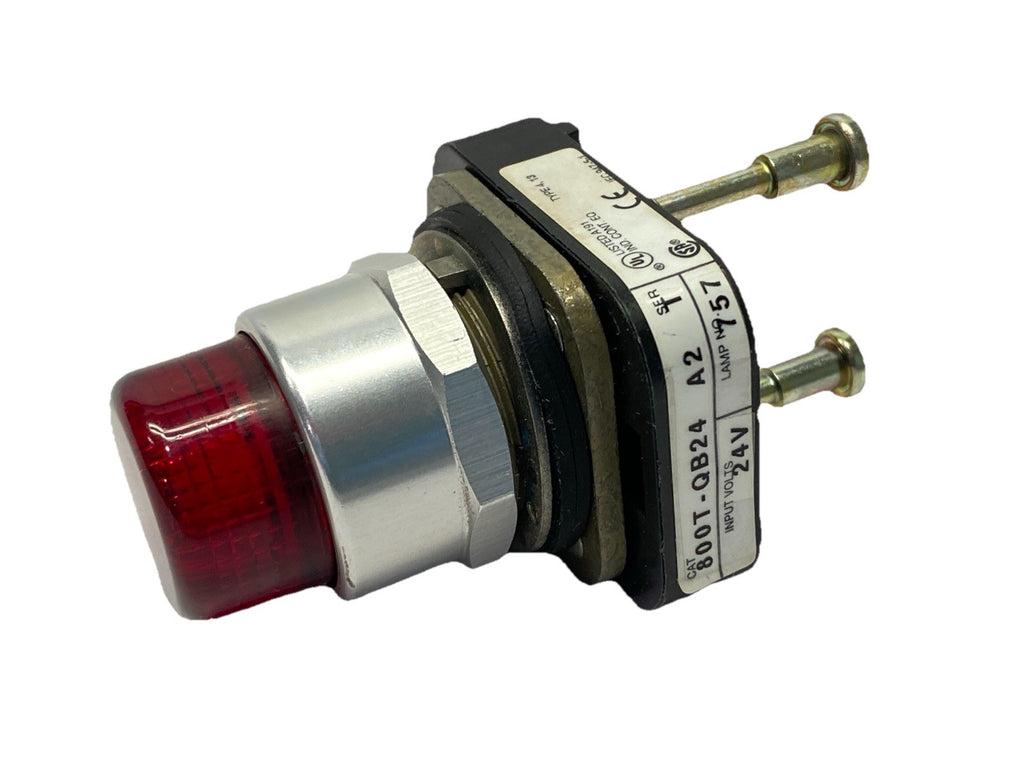

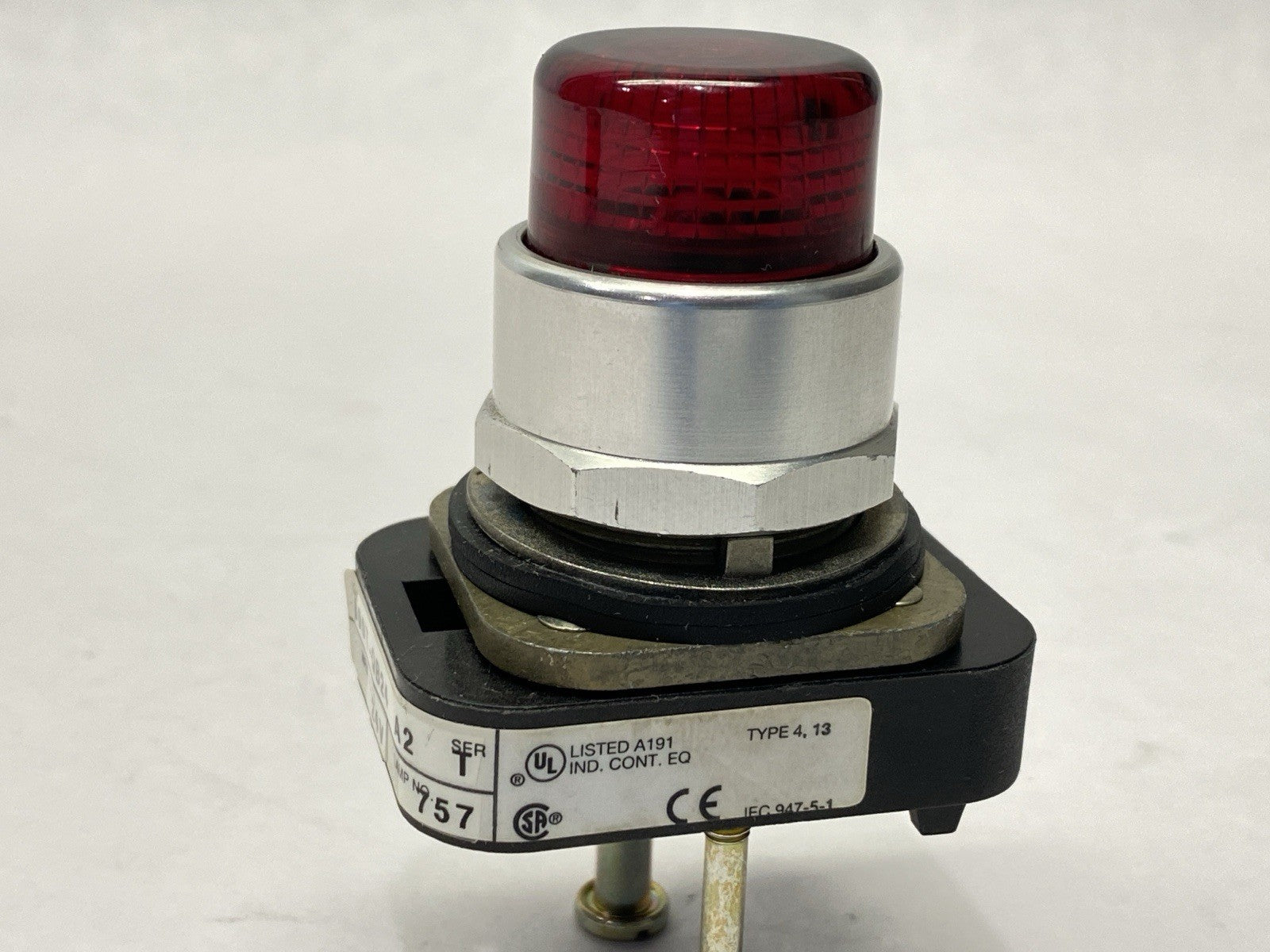

Model: Ser T Illuminated Push Button 30mm Red 24V
MPN: 800T-QB24
Custom Label: 11-53C3-114798-BL-XX
Specifications
| Brand | Allen-Bradley |
|---|---|
| Catalog Number | 800T-QB24 |
| Series | T |
| Product Type | Push Button Operator with Contact Block |
| Type | 30mm Momentary Push Button |
| Operator Function | Momentary Contact |
| Contact Configuration | 1 NO, 1 NC |
| Max Contact Voltage | 600V AC / 600V DC |
| Contact Current Rating | 10 A |
| Contact Utilization Category | AC-15 (AC), DC-13 (DC) |
| Illumination | 24V AC/DC Incandescent Lamp |
| Connection Type | Screw Terminals |
| Button Size | 30 mm |
| Enclosure Compatibility | NEMA 1, 4, 12, 13 |
| Mechanical Design Life | 250,000 Cycles |
| Electrical Design Life | 1,000,000 Cycles at Max Load |
