Description
Condition: Used
Condition Description: Used item as seen in the images. No additional items are included in the sale. 30-day warranty included.

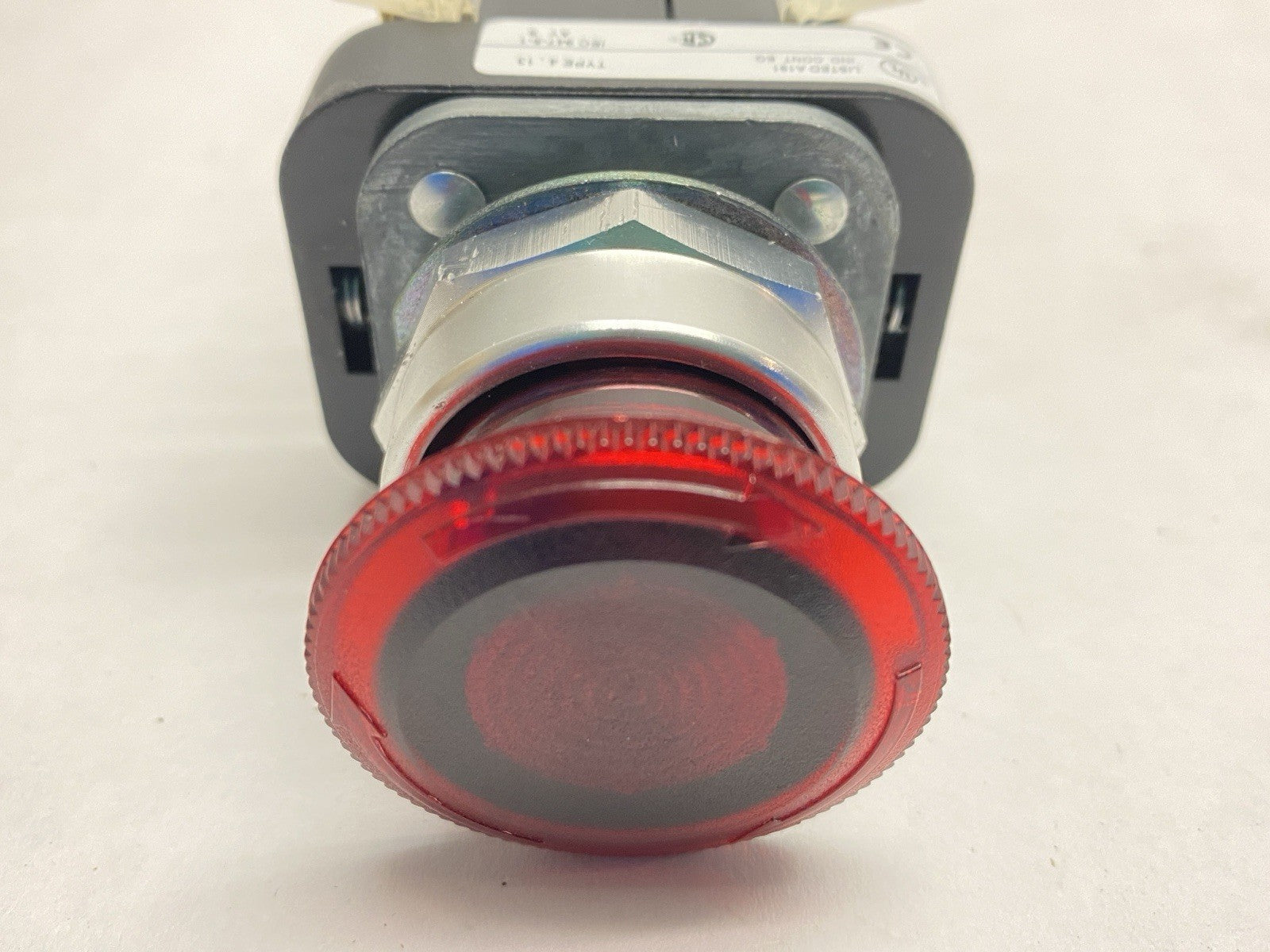

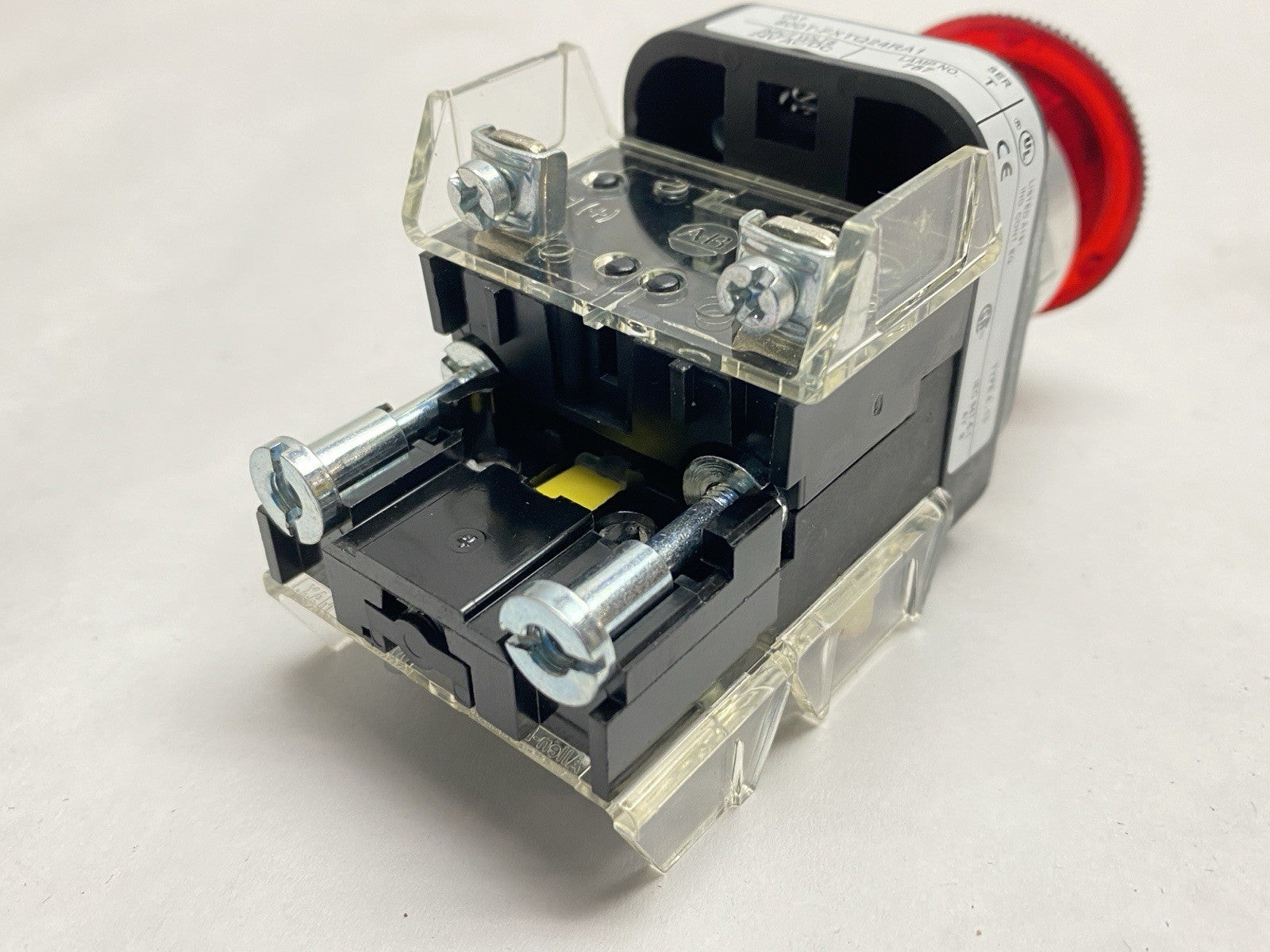

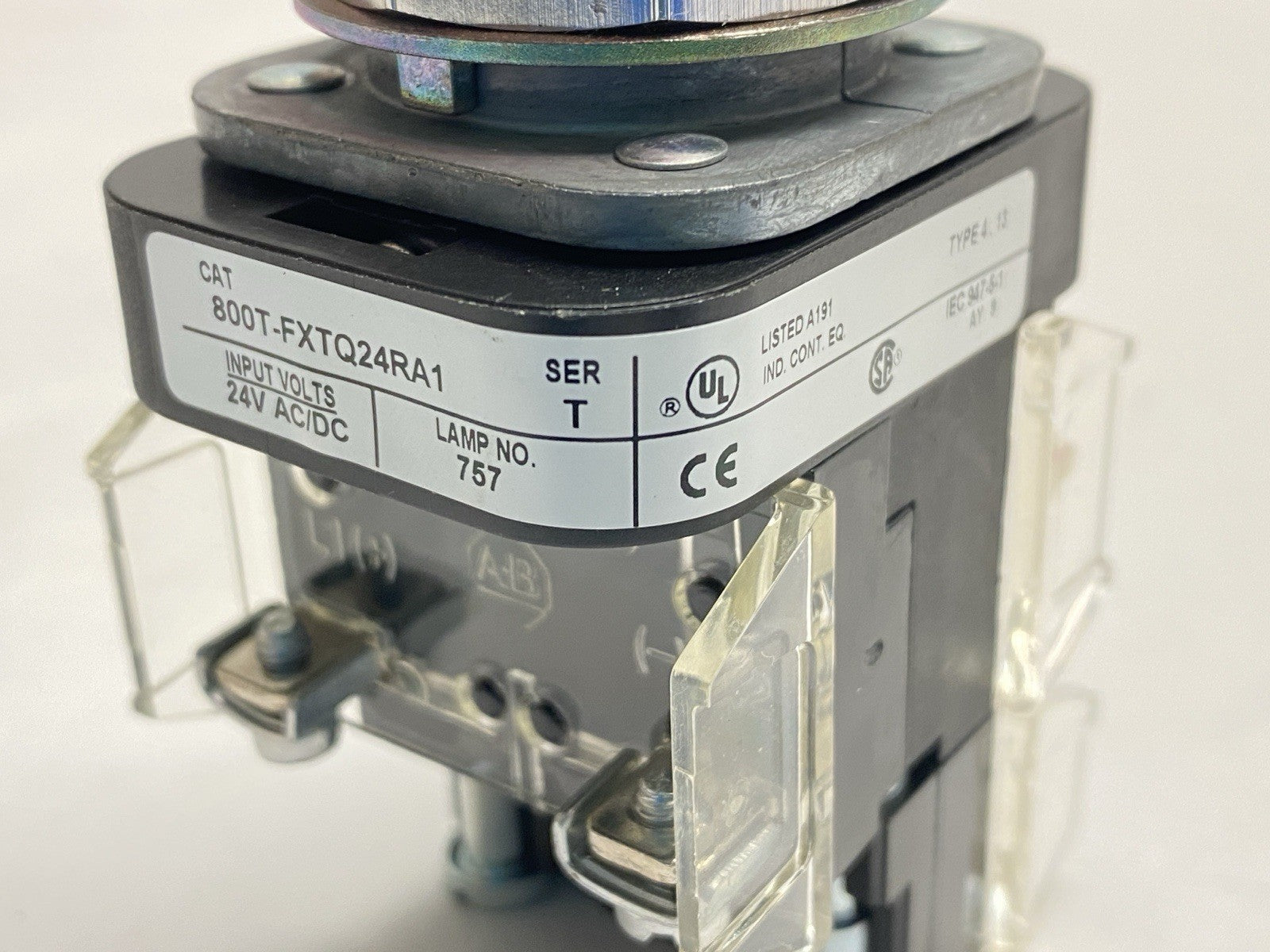

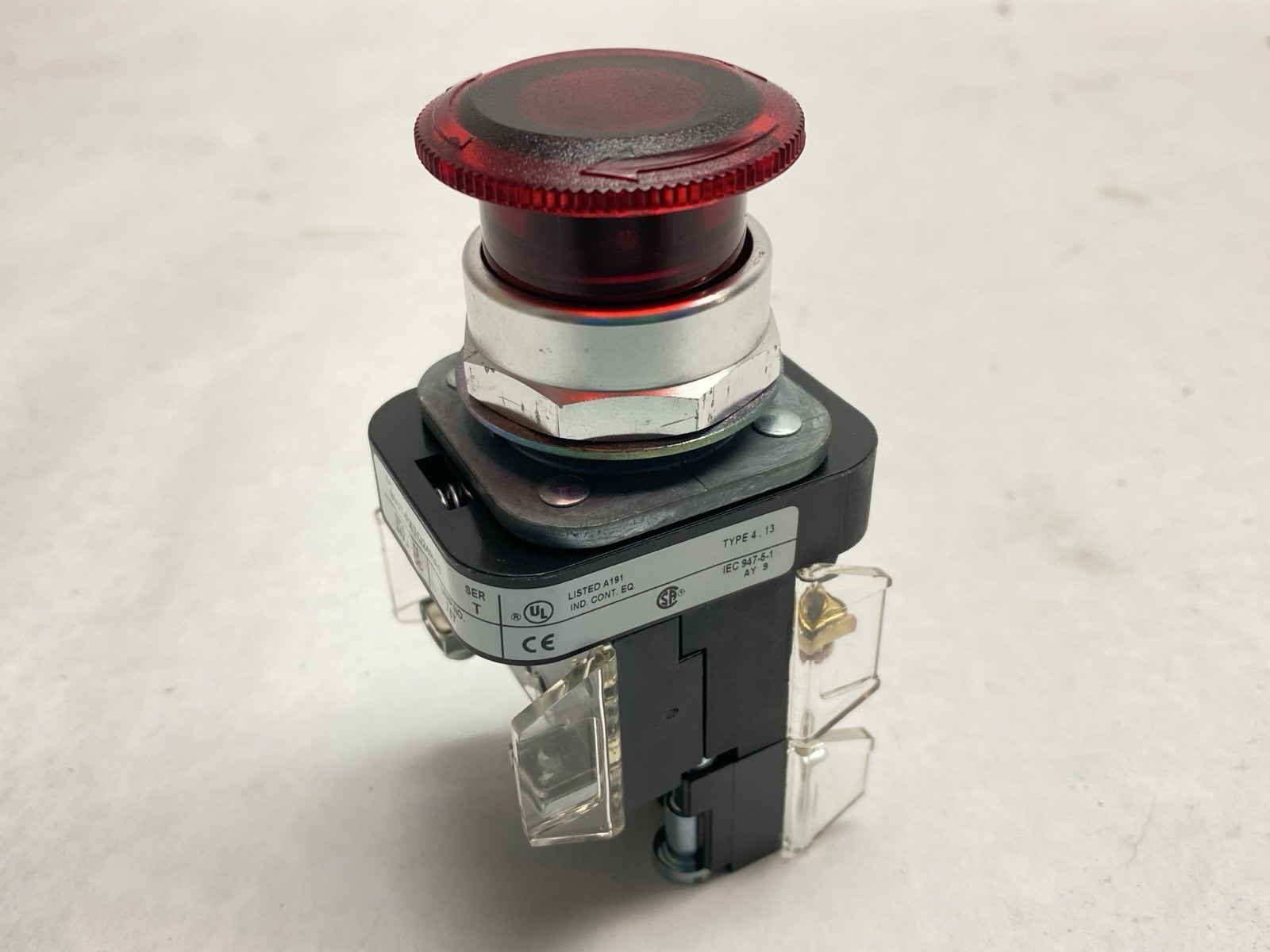

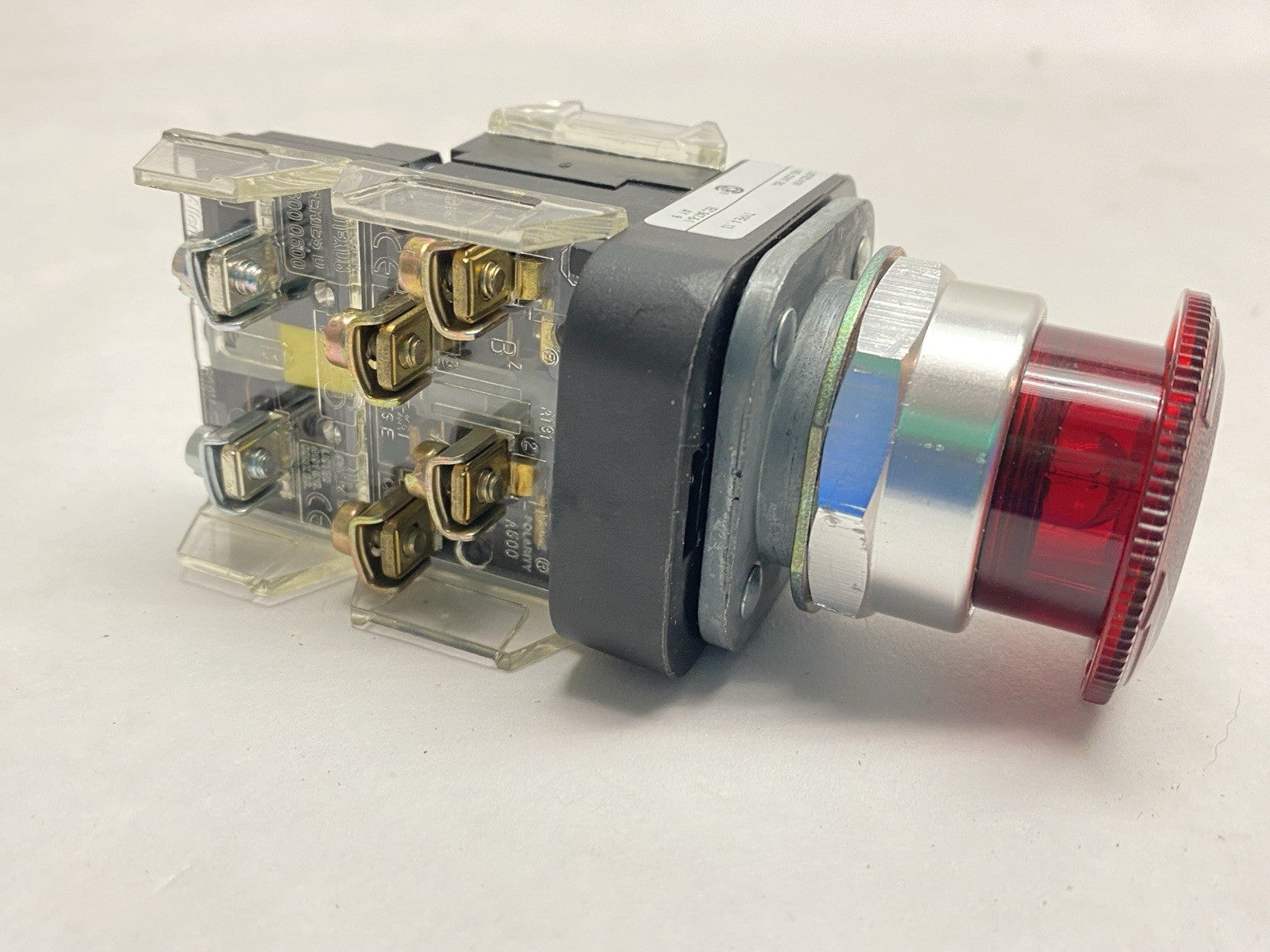

Model: Ser T Mushroom Pushbutton Illuminated Red 24V
MPN: 800T-FXTQ24RA1
Custom Label: 8-3A6-120680-BL-GX
Specifications
| Brand | Allen-Bradley |
|---|---|
| Catalog Number | 800T-FXTQ24RA1 |
| Series | T |
| Product Type | Push-Pull Device |
| Type | 30mm Push-Pull Device with Illumination |
| Operator Type | Mushroom Cap, 2-Position |
| Operator Function | Maintained with Twist Release |
| Contact Configuration | 1 NCLB, 1 NO |
| Contact Voltage Rating | 600V AC / 600V DC |
| Contact Current Rating | 10 A |
| Utilization Category | AC-15 (AC), DC-13 (DC) |
| Illumination Input Voltage | 24V AC/DC |
| Illumination Type | Incandescent, Full Voltage |
| Operator Cap Color | Red |
| Operator Cap Size | 40 mm |
| Connection Type | Screw Terminals, 14-18 AWG (x2) |
