Description
Condition: New

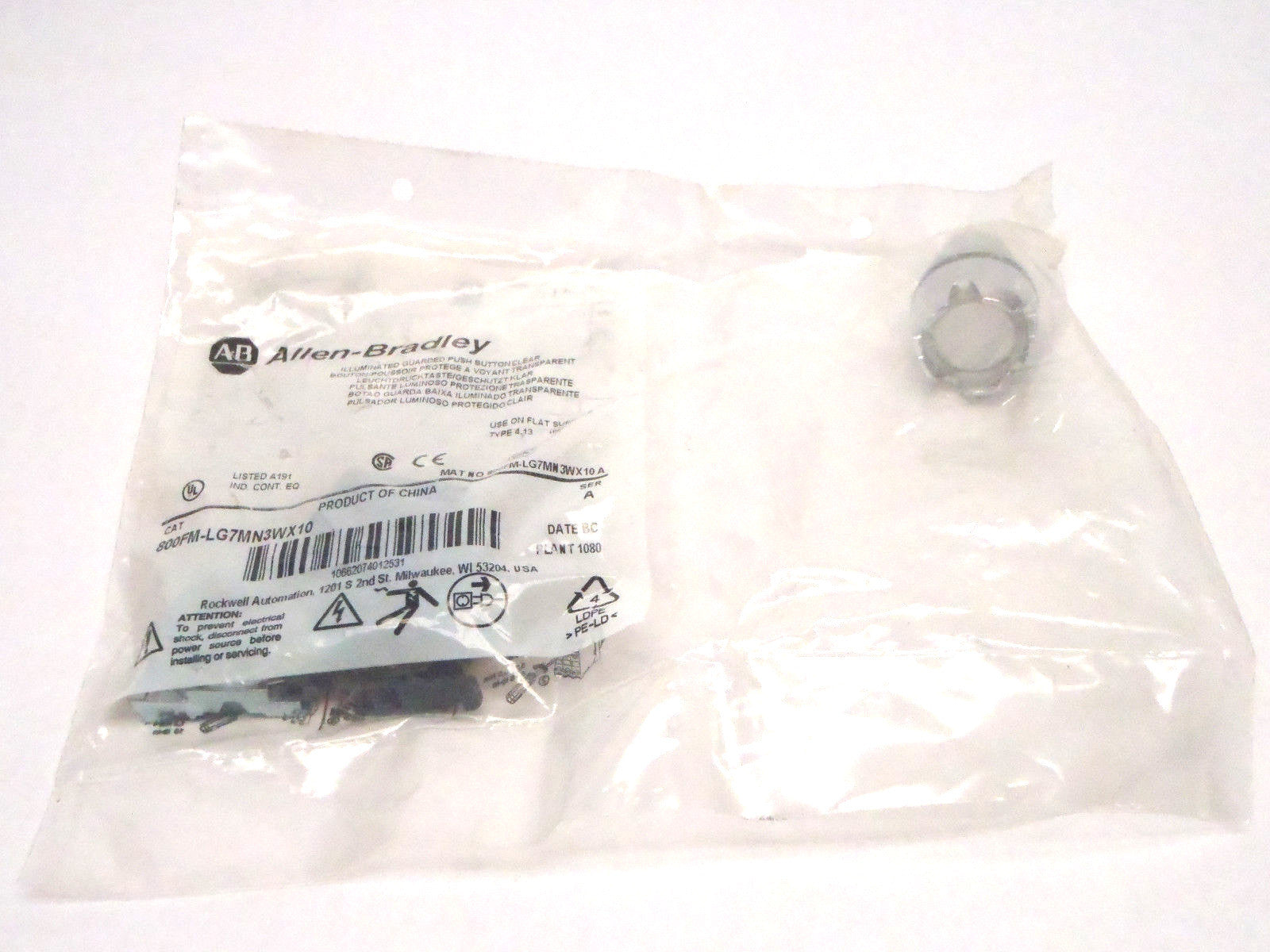

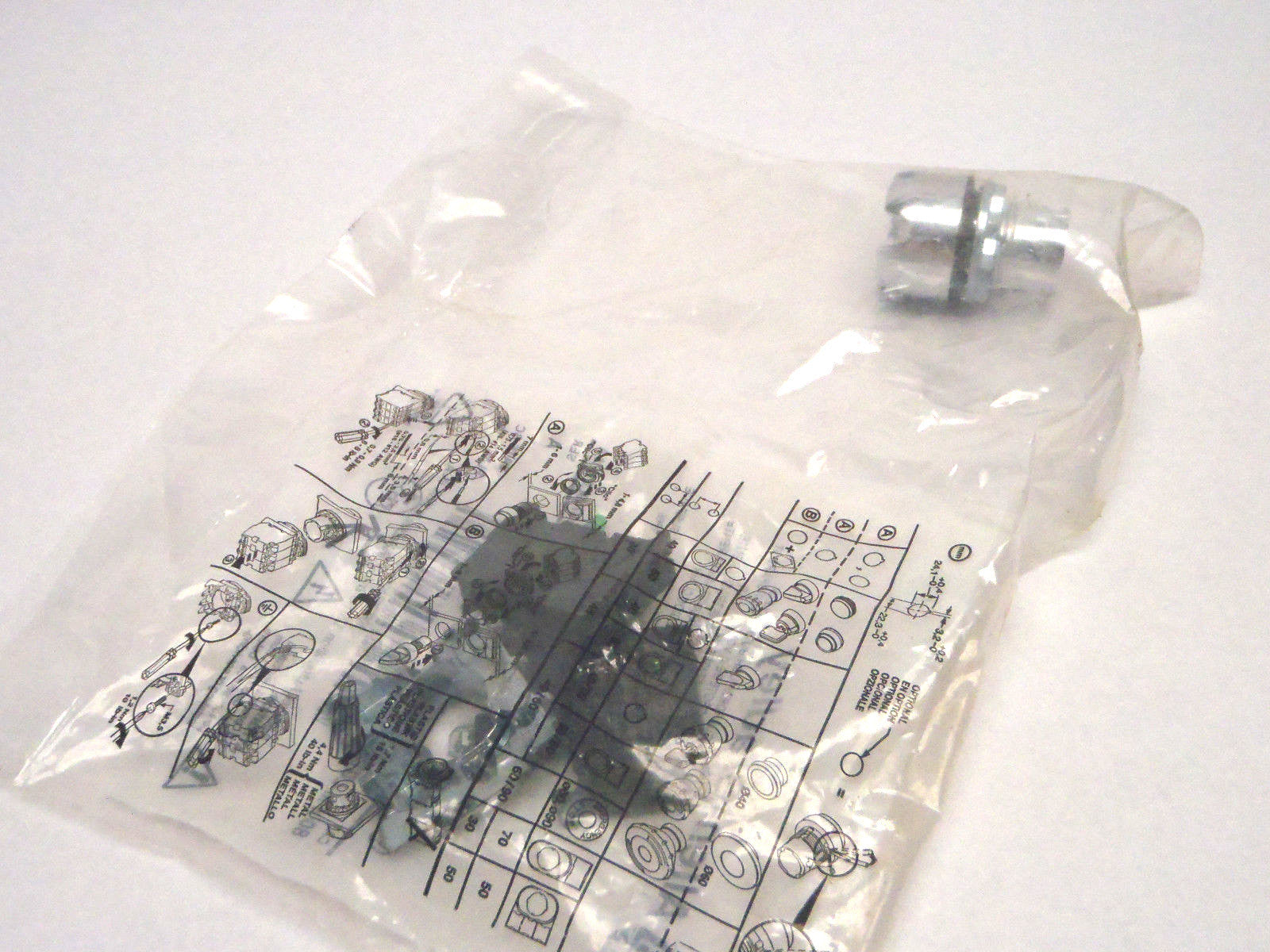

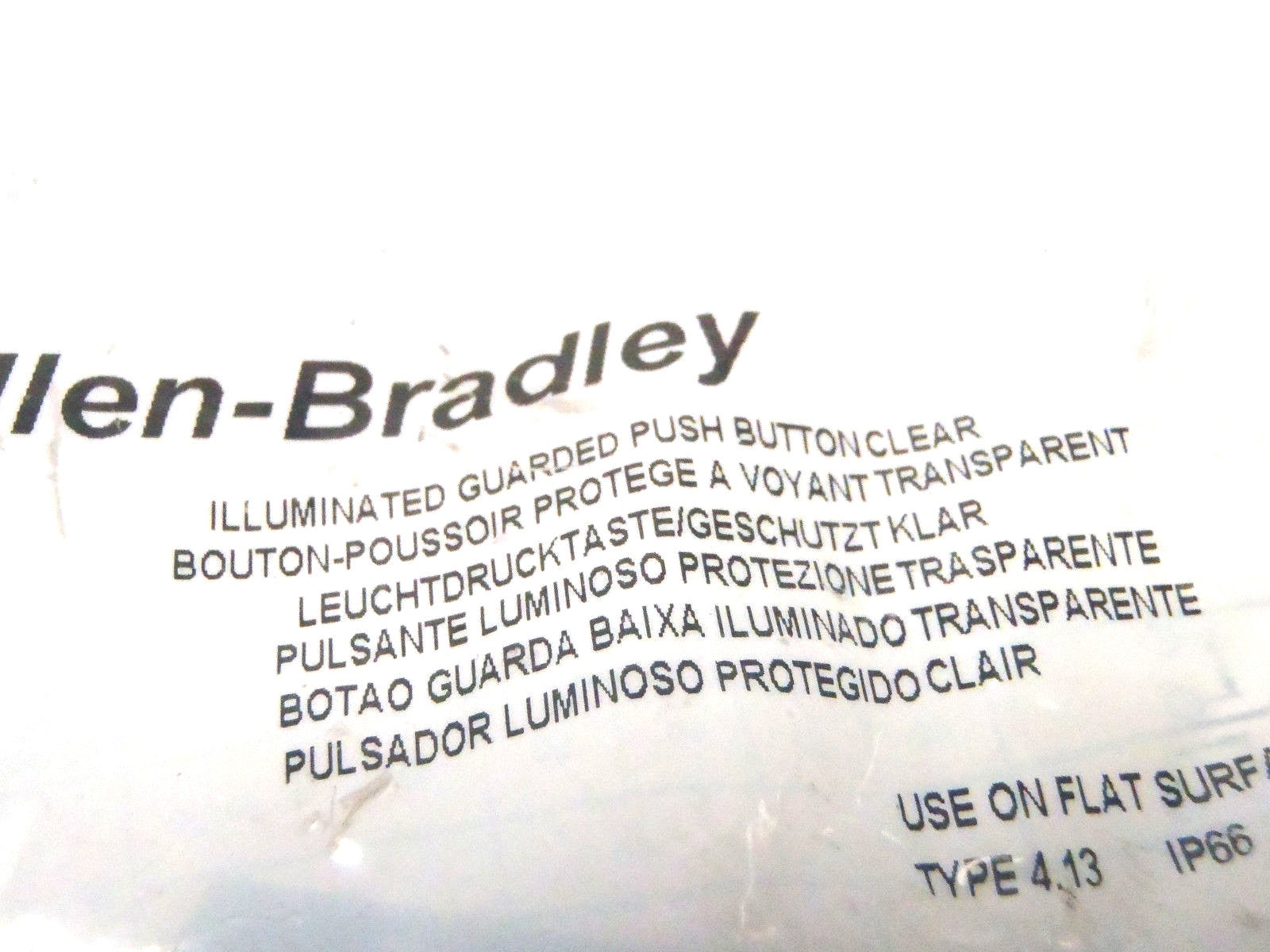

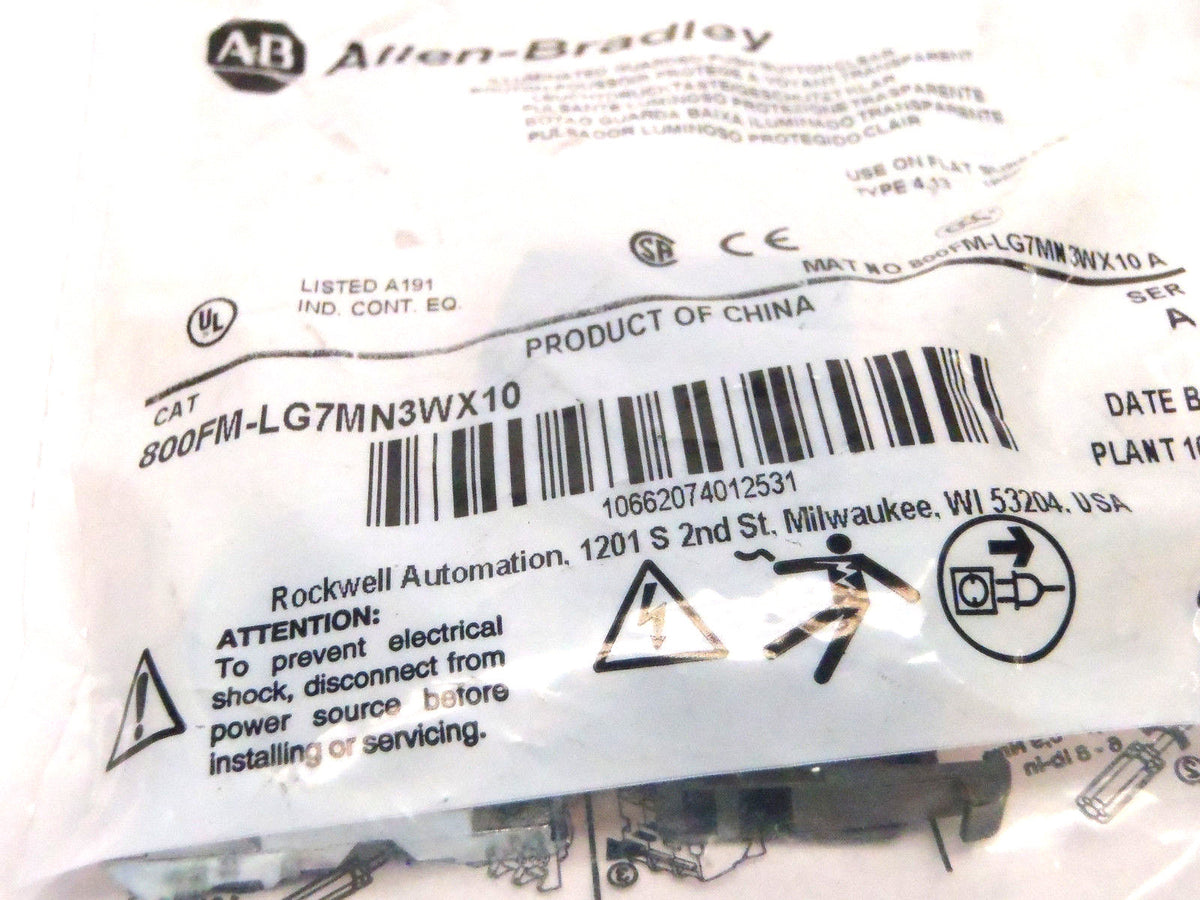

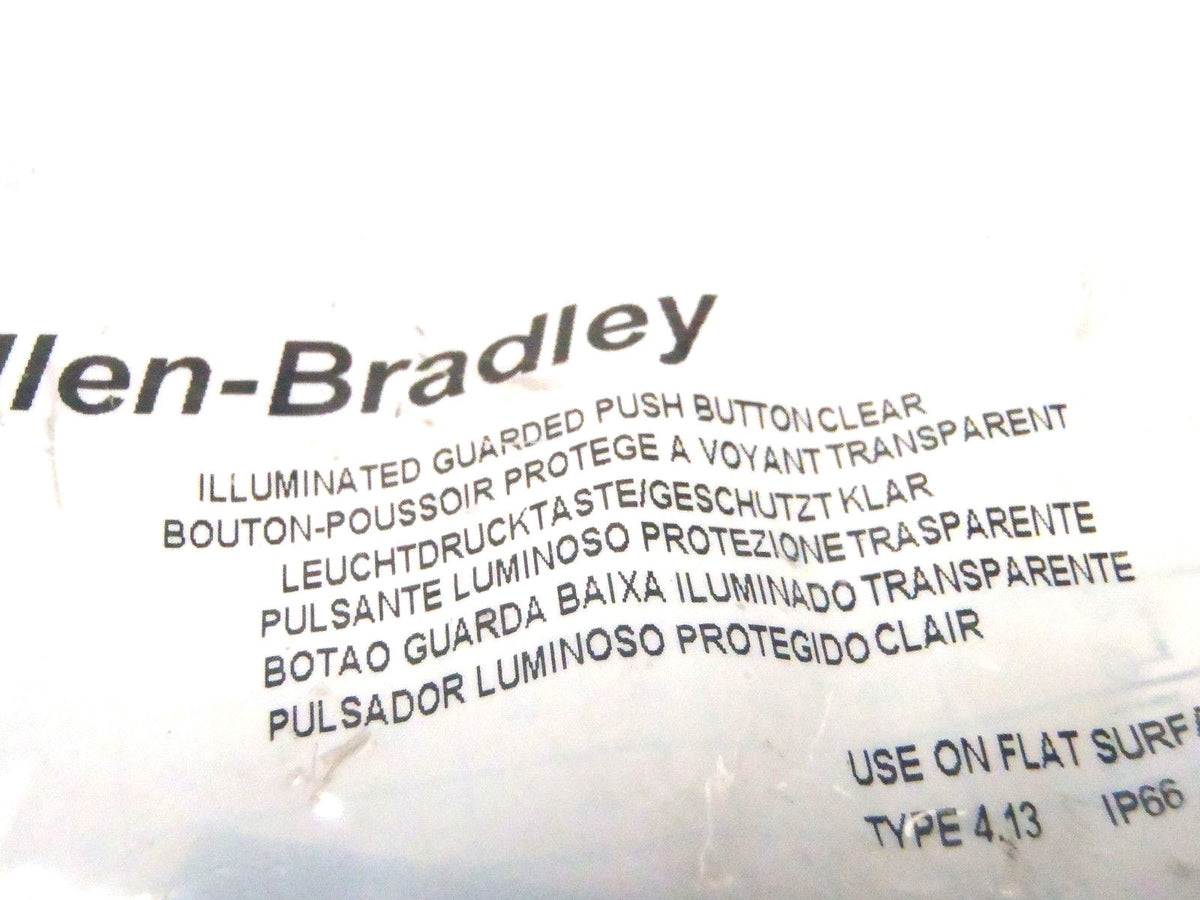

Model: Illuminated Guarded Push-Button (Clear)
MPN: 800FM-LG7MN3WX10
Custom Label: 4-BB1E-8925-GX
Specifications
| Brand | Allen-Bradley |
|---|---|
| Catalog Number | 800FM-LG7MN3WX10 |
| Product Type | Push Button - Illuminated Momentary |
| Type | 22mm Momentary Push Button, Illuminated Guarded |
| Operator Cap | Round, Plastic, Clear (Illuminated) |
| Contact Configuration | 1 NO (Normally Open) |
| Contact Voltage Rating | 600V AC/DC max |
| Current Rating | 10 A (AC-15/Q600 DC-13) |
| Illumination | White LED, 24V AC/DC |
| Termination | Screw Terminals, #18–12 AWG (0.75–2.5 mm²) |
| Enclosure Rating | IP66 / Type 4–13 (Round Metal Operator) |
| Mounting Hole | 22.5 mm Diameter |
| Mechanical Life | 10 Million Cycles |
