Description
Condition: Used
Condition Description: Used item as seen in the images. No additional items are included in the sale. 30-day warranty included.

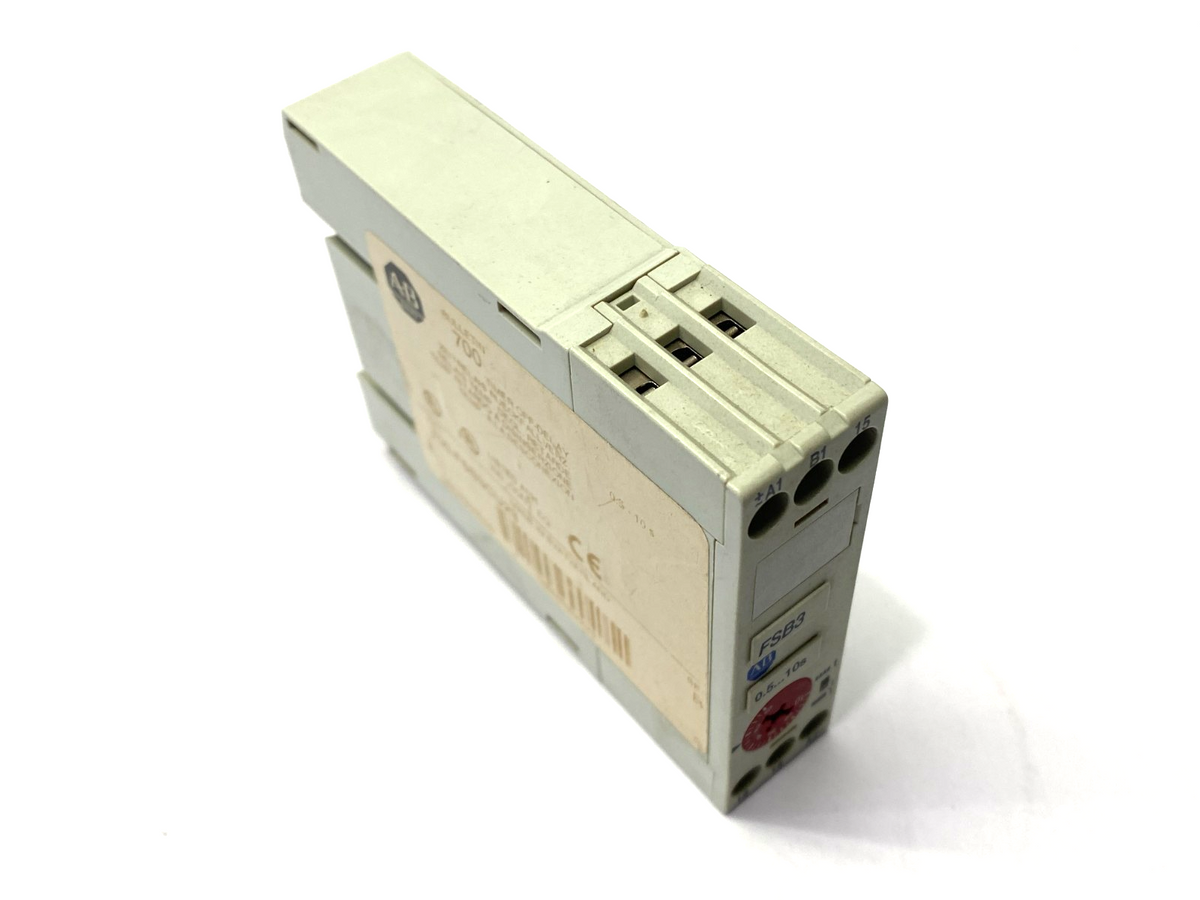

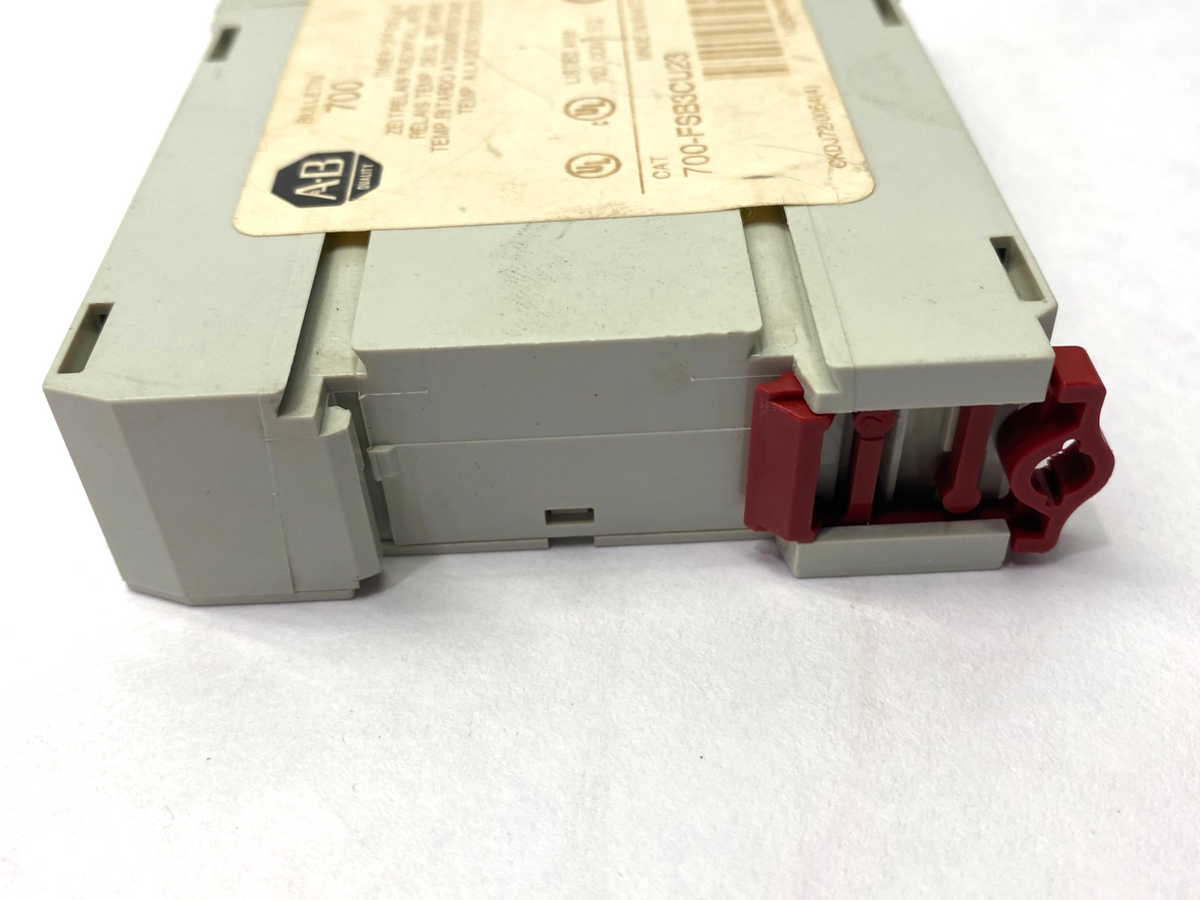

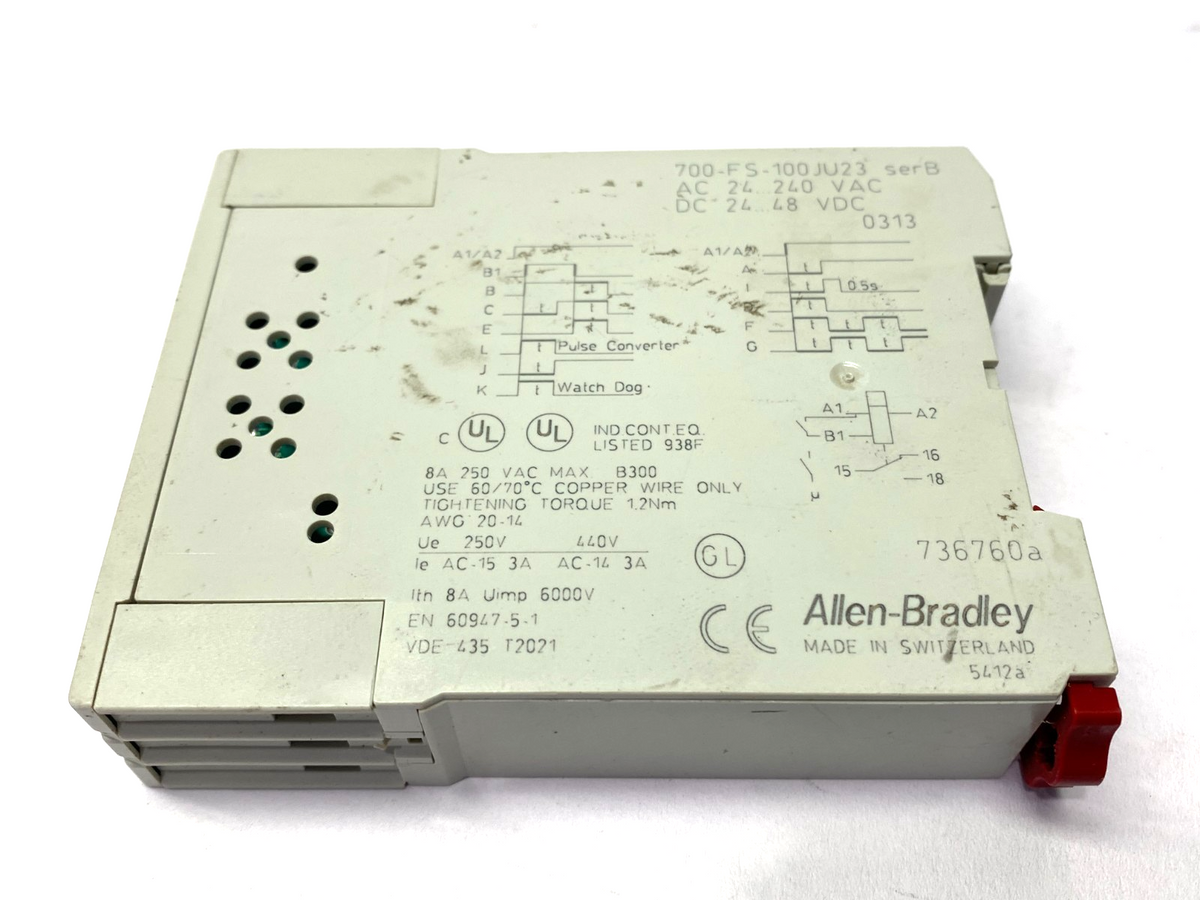

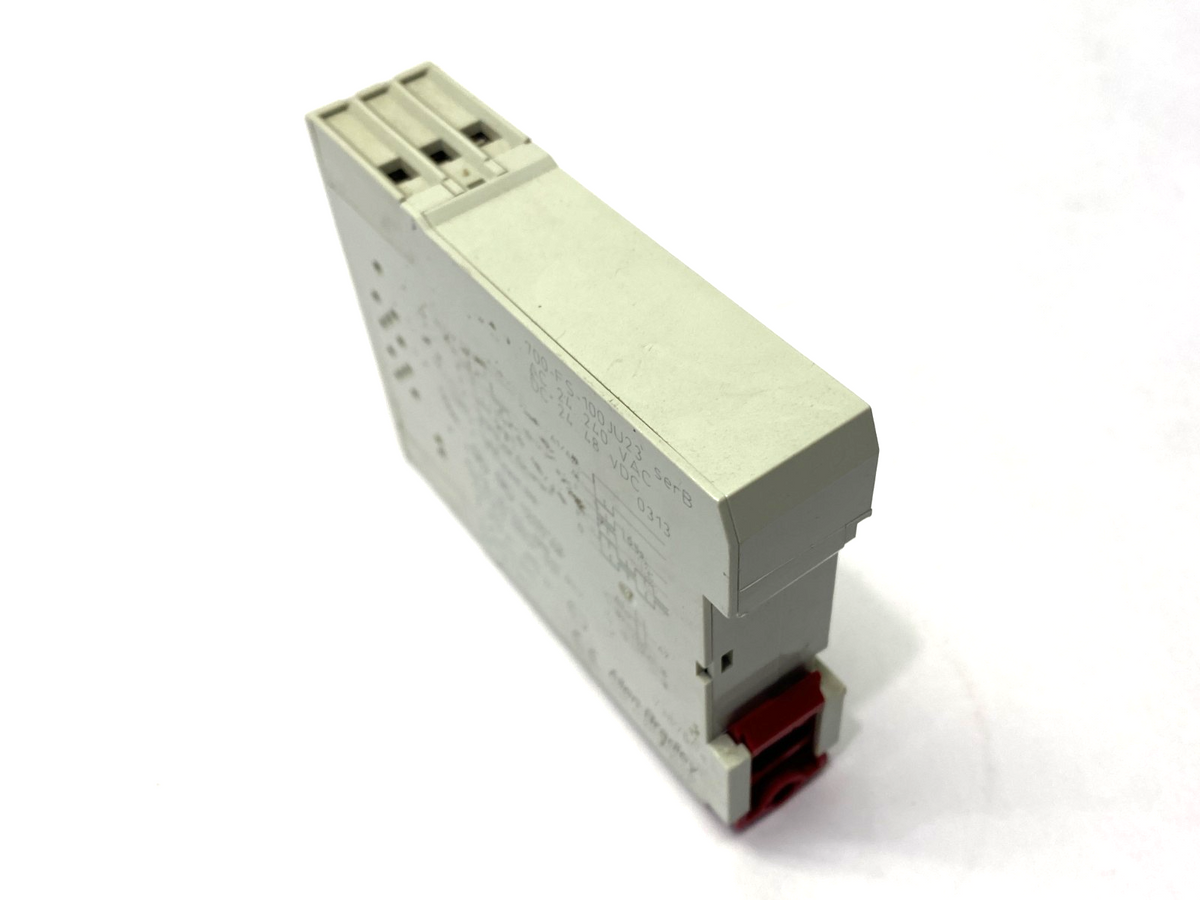

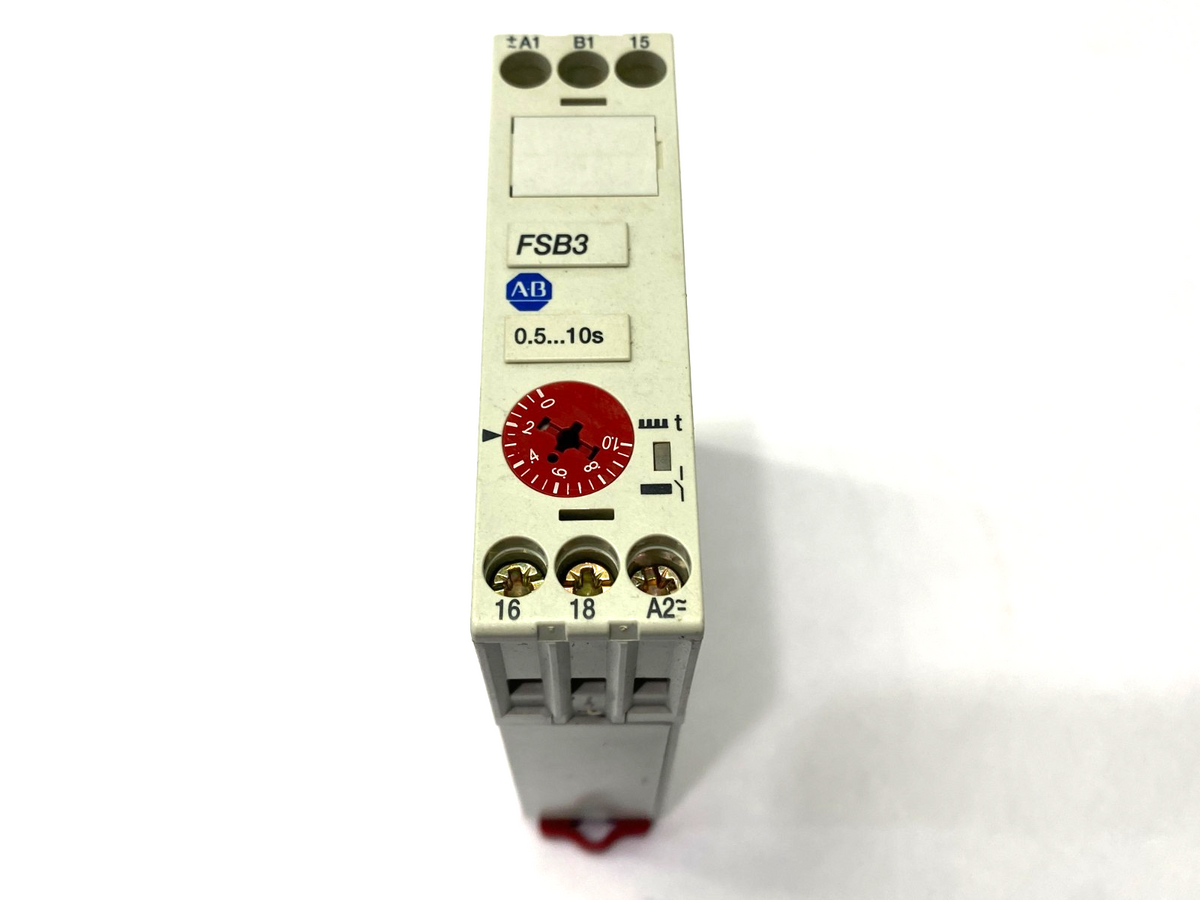

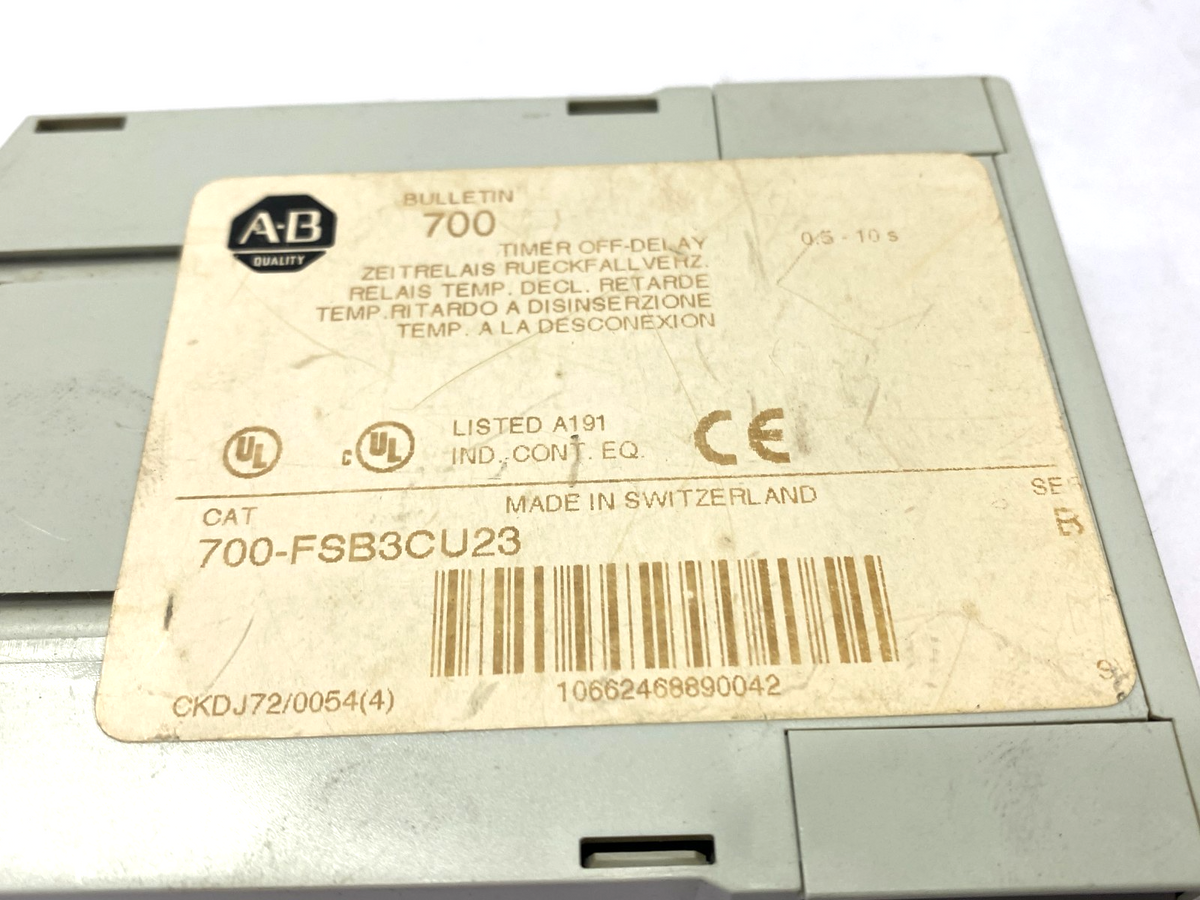

Model: Ser. B Timing Off-Delay Relay 0.5-10s
MPN: 700-FSB3CU23
Custom Label: 8-3C2-119689-SS-XX
Specifications
| Brand | Allen-Bradley |
|---|---|
| Catalog Number | 700-FSB3CU23 |
| Series | B |
| Product Type | Off-Delay Timing Relay |
| Function | Off-Delay (delay on de-energization) |
| Control Voltage | 24-48V DC / 24-240V 50/60Hz AC |
| Timing Range | 0.5 s to 10 s |
| Outputs | 1 changeover contact |
| Switching Capacity | 8 A @ 440V AC |
| Input Current | 1 mA |
| Connection Type | Screw |
| Mounting | DIN Rail (35 mm) snap-on or screw fixed |
