Description
Condition: Used

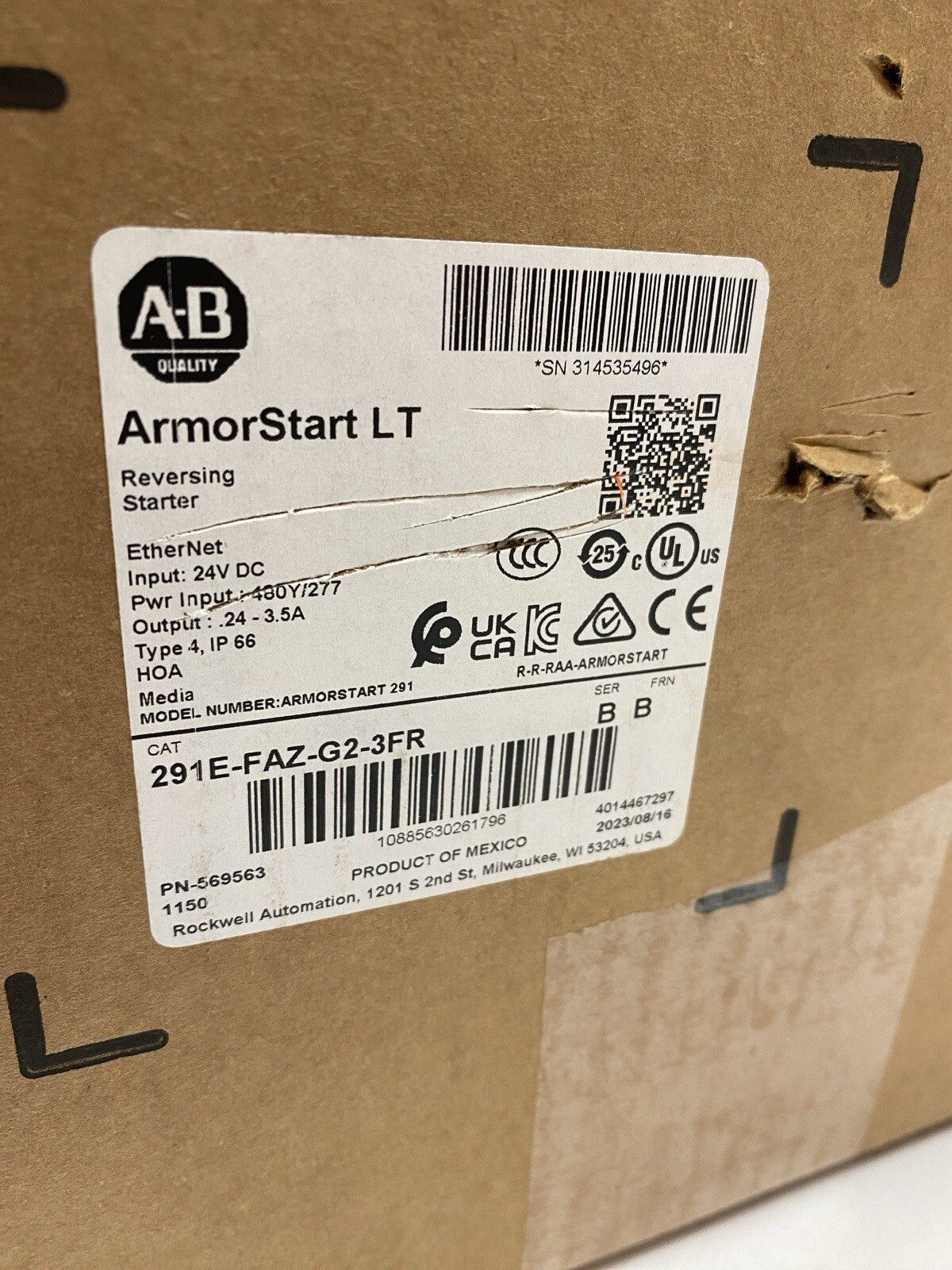

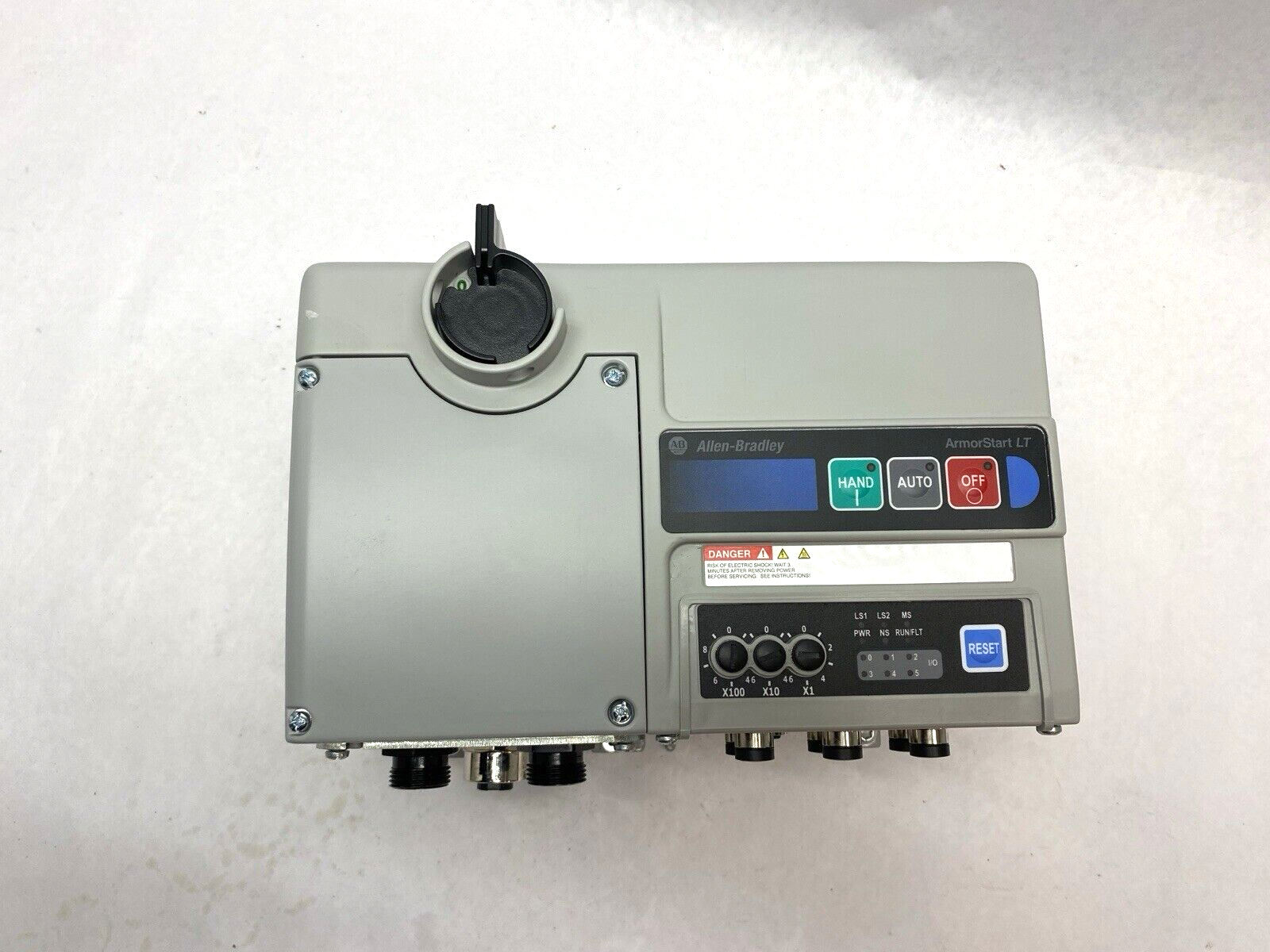

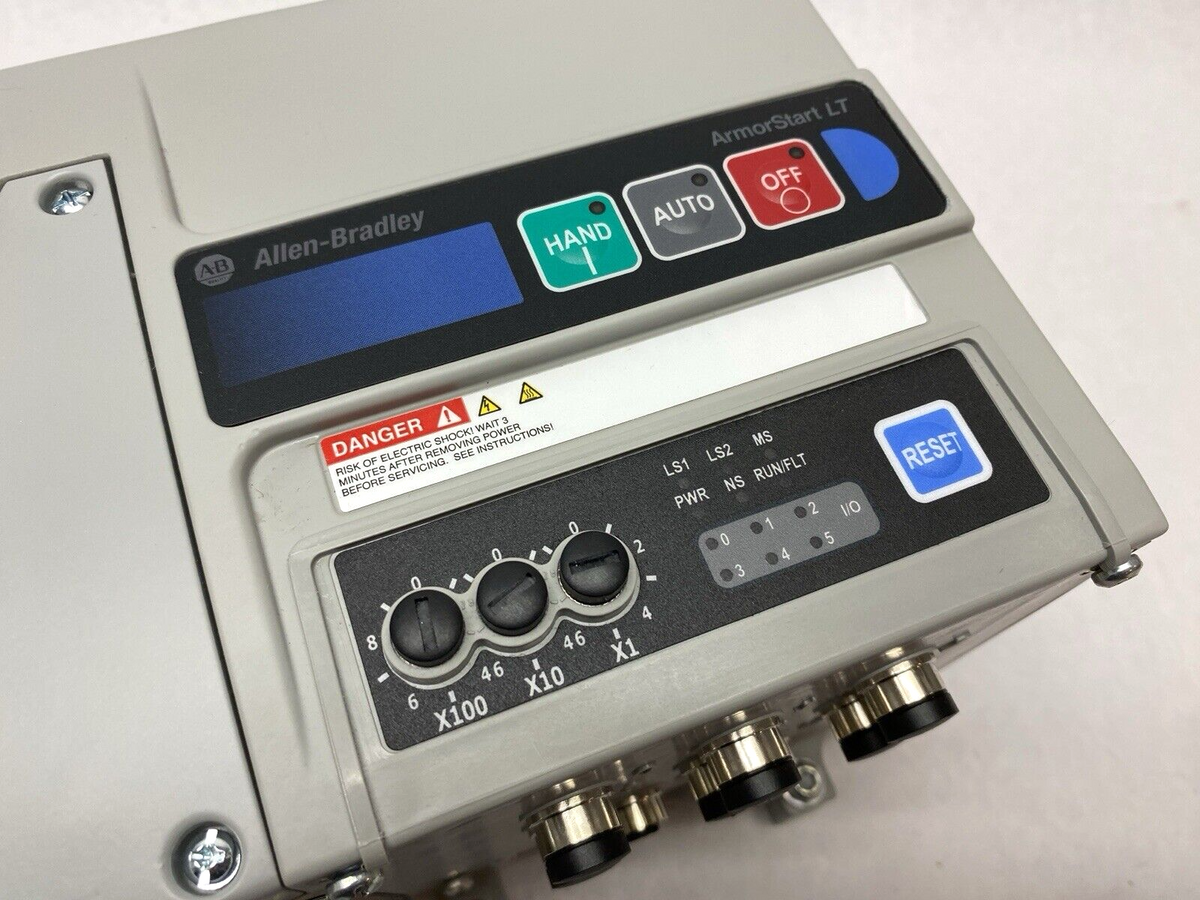

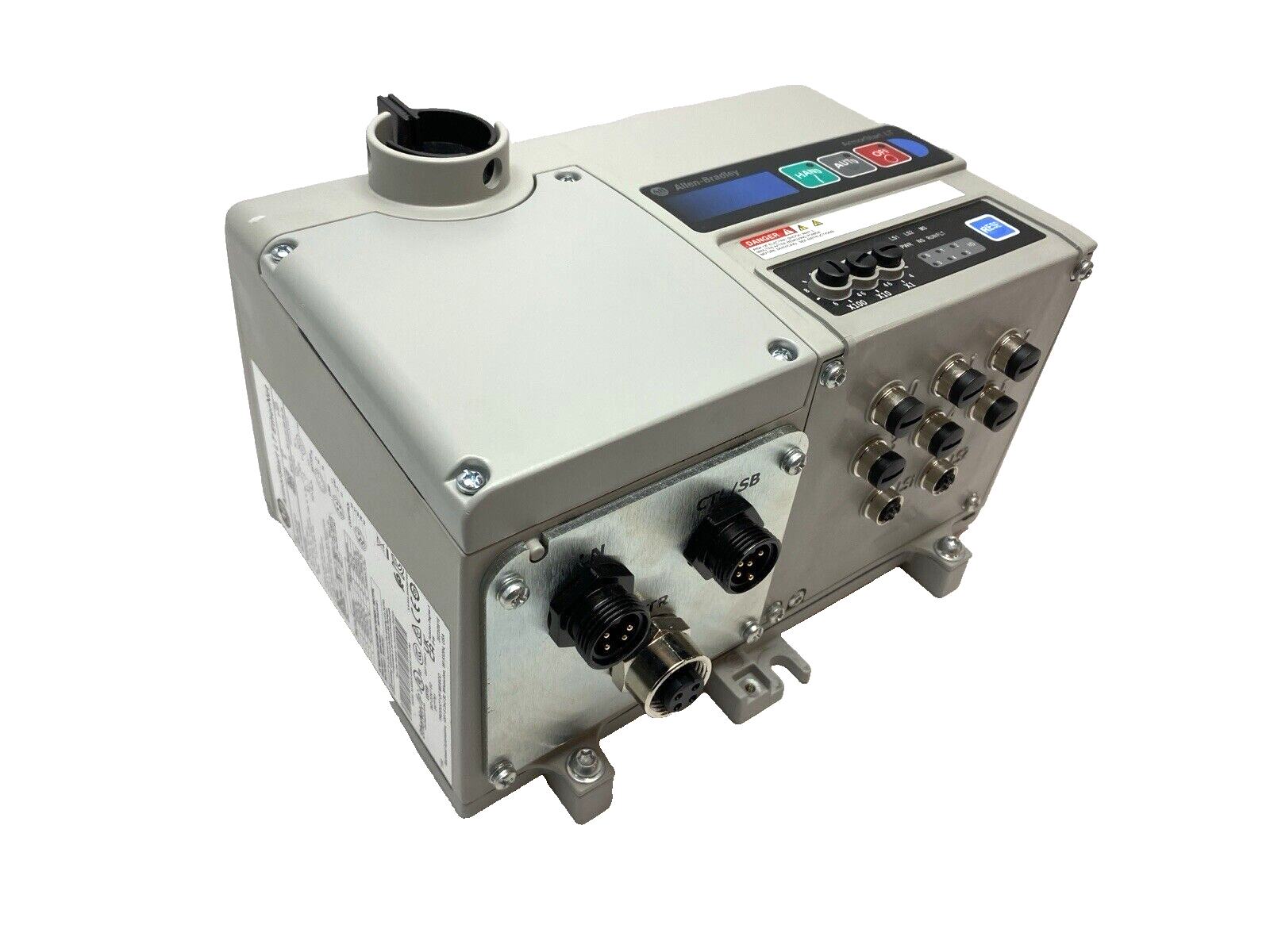

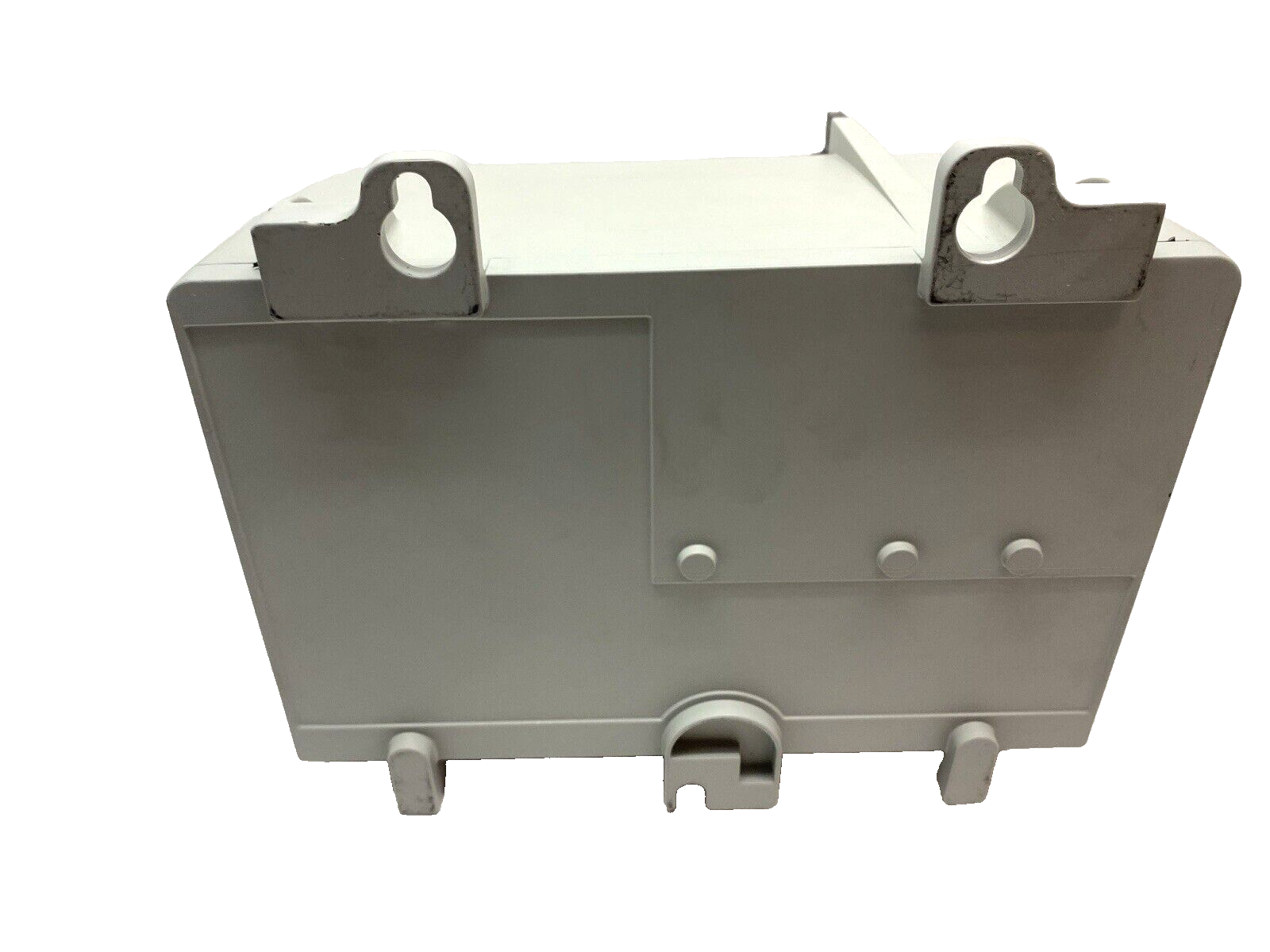

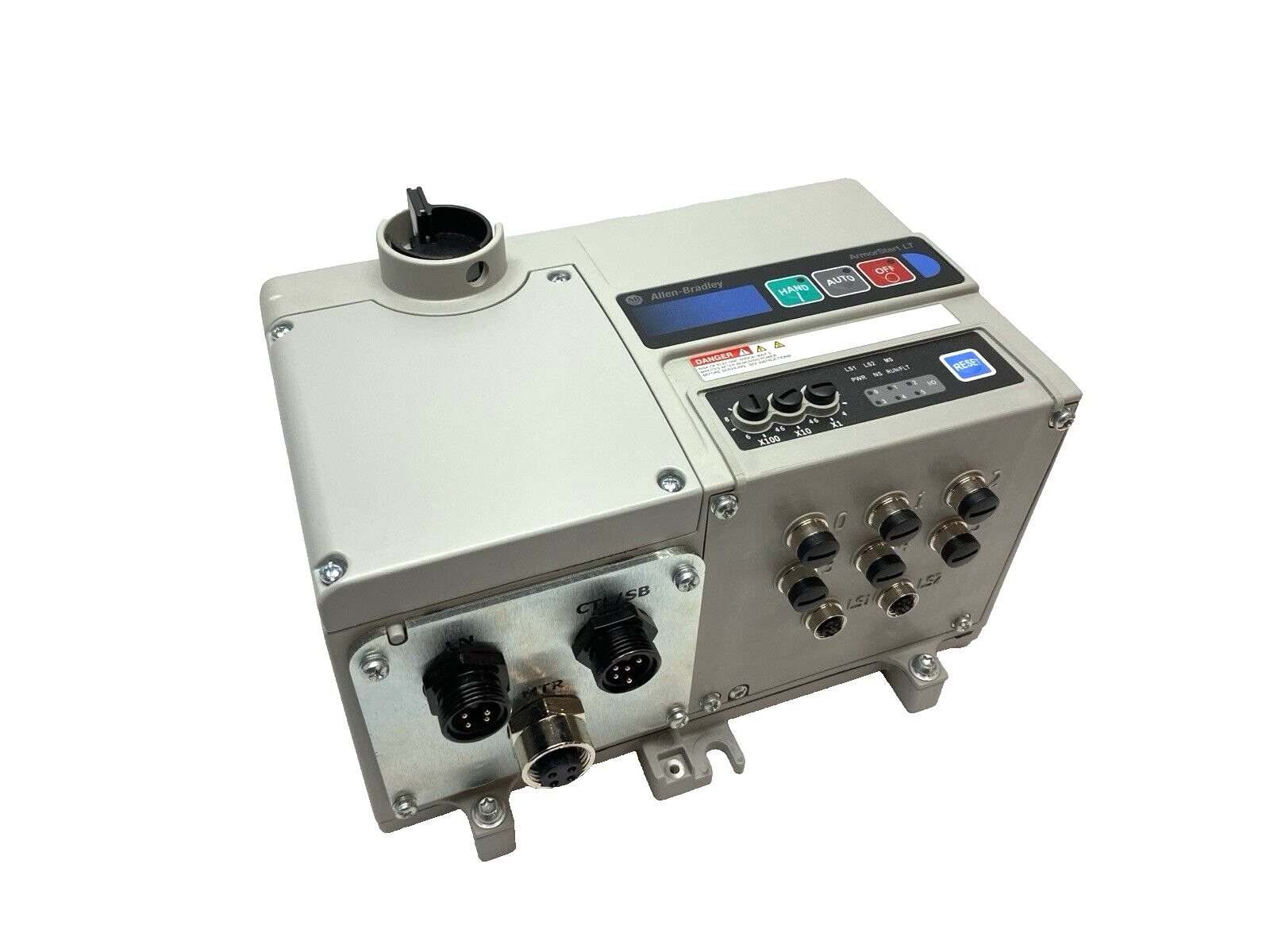

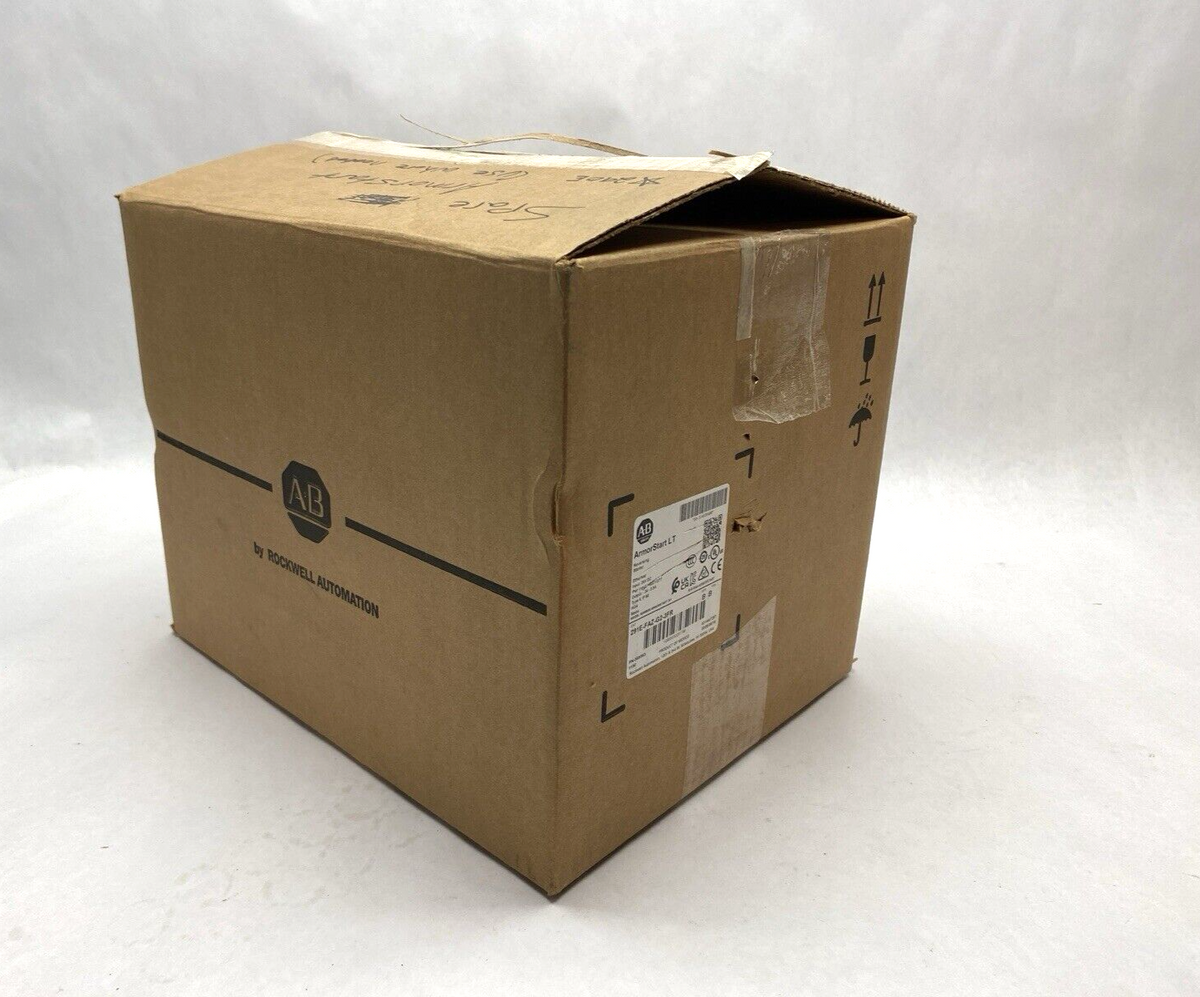

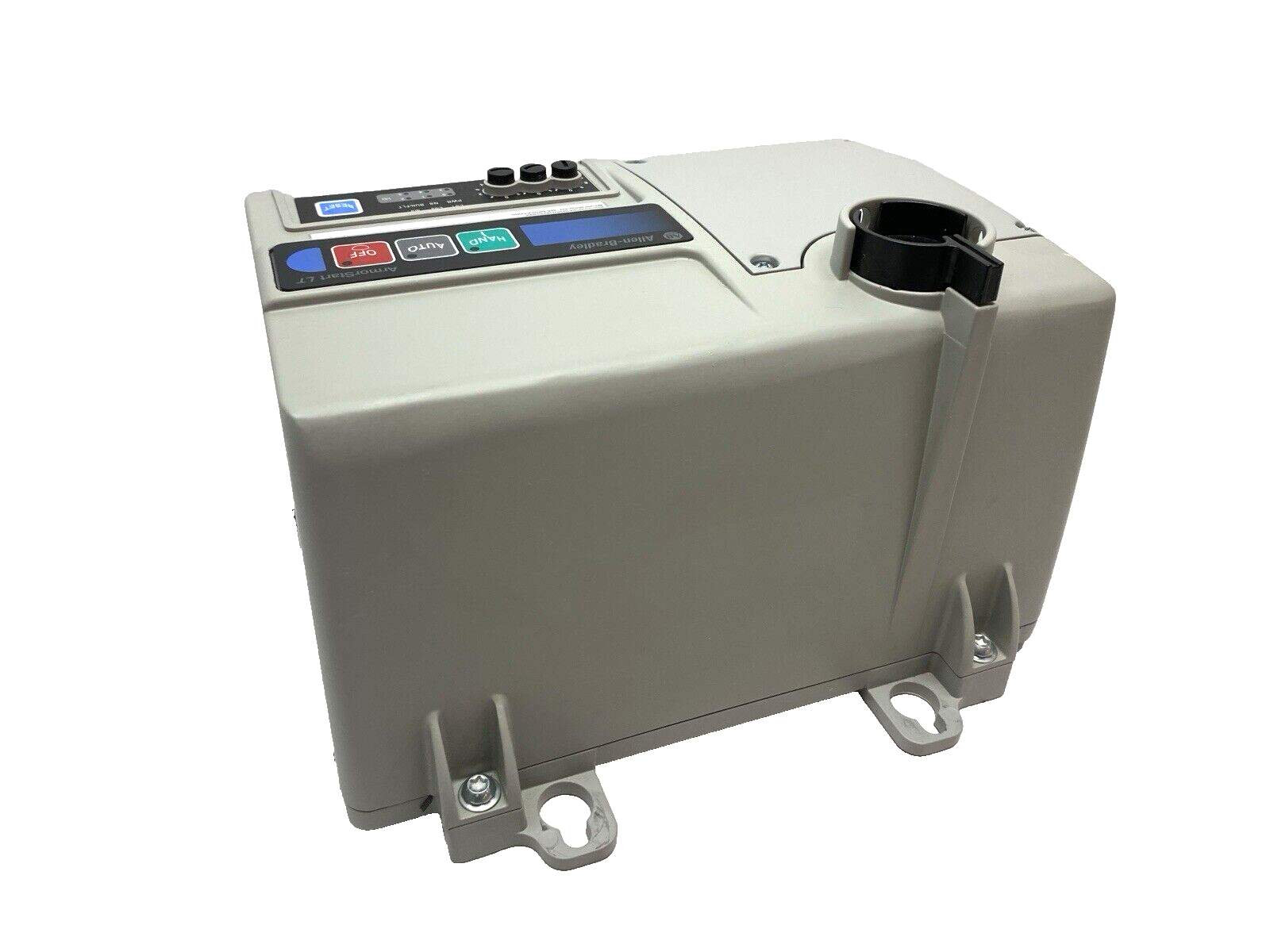

Condition Description: Used item as seen in the images. MRO Room Spare. No additional items are included in the sale. 30-day warranty included.

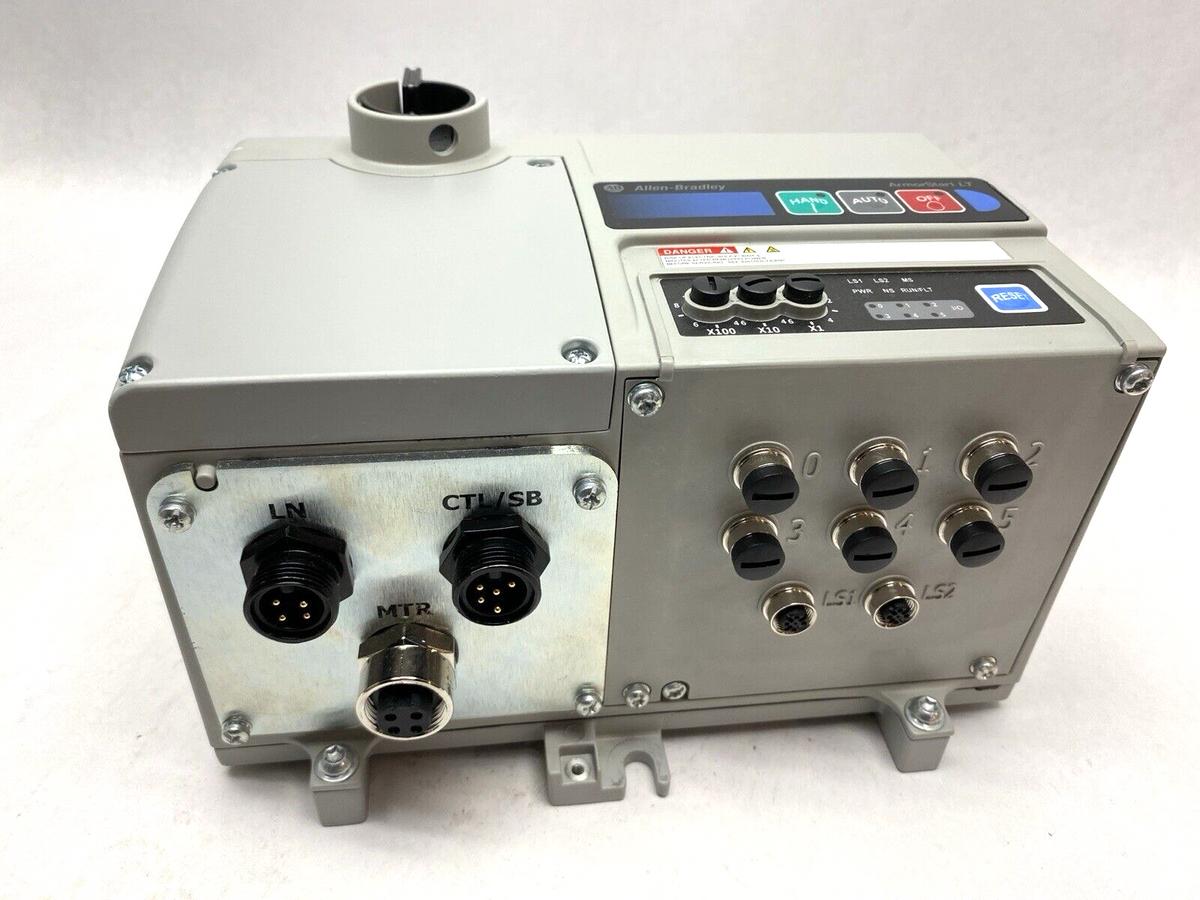

Model: FRN B Armorstart LT Reversing Starter

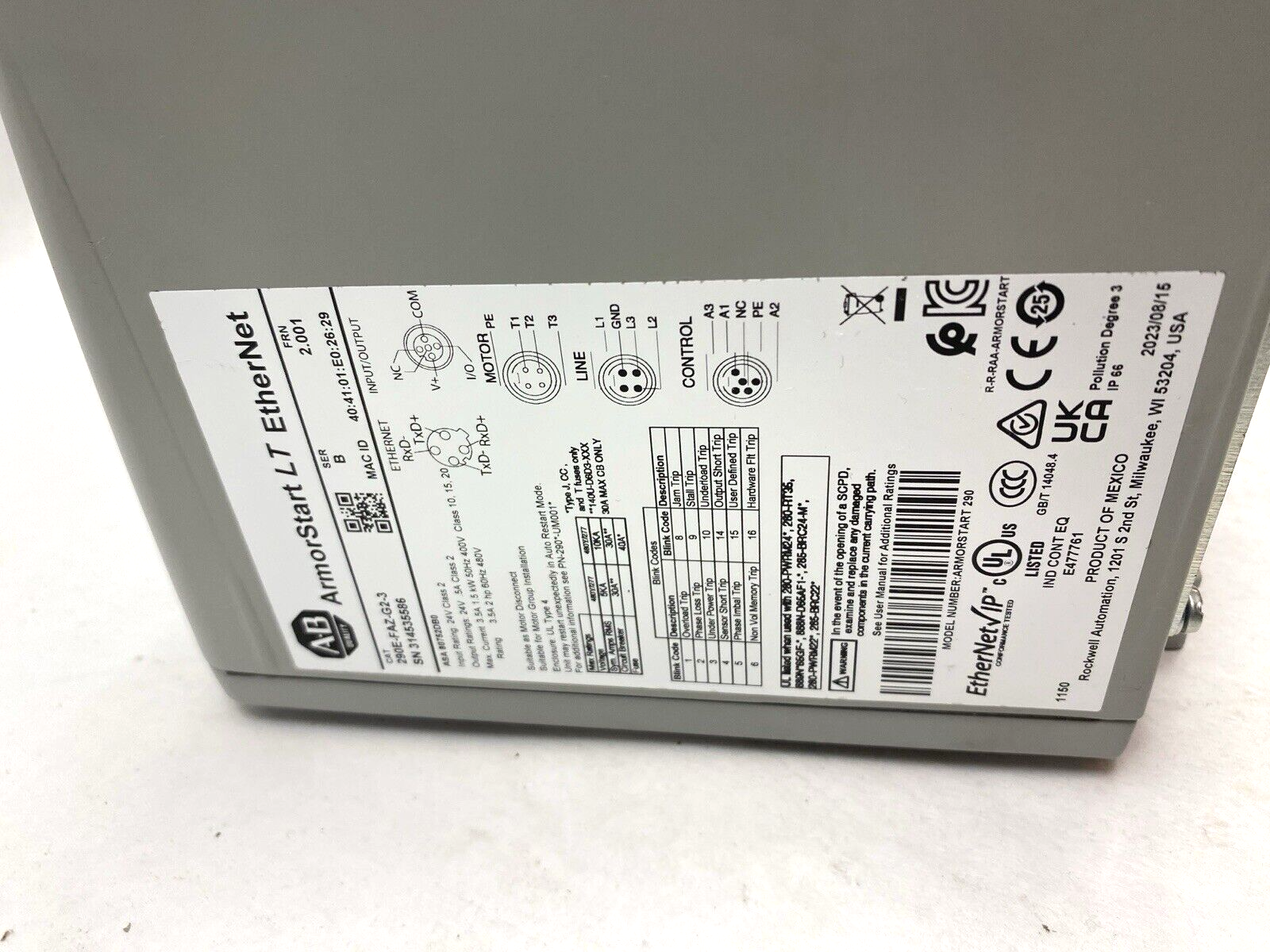

MPN: 291E-FAZ-G2-3FR SER B
Custom Label: 10-36F-90237-MY-ET
Specifications
| Brand | Allen-Bradley |
|---|---|
| Catalog Number | 291E-FAZ-G2-3FR |
| Series | B |
| Product Type | Direct Online Reversing Starter |
| Input Voltage | 24V DC (±10%, -20%) |
| Output Voltage (Power Circuit) | 400Y/230...480Y/277 V, 3-Phase, 50/60 Hz |
| Rated Operating Current | 0.24...3.5 A @ 2 HP (1.5 kW) |
| Digital I/O | 6 Configurable (Max 6 Inputs, Max 6 Outputs) |
| Input Connection | M12 Quick Disconnect, Single Keyed |
| Output Connection | M12 Quick Disconnect, Single Keyed |
| Ethernet Ports | 2 (Embedded Switch, M12 D-Code, 10/100 Mbps) |
| Communication Protocol | EtherNet/IP |
| Short Circuit Current Rating | 10 kA @ 480Y/277 |
| Motor Disconnect | Yes |
| Reset Mode | Automatic/Manual |
