Description

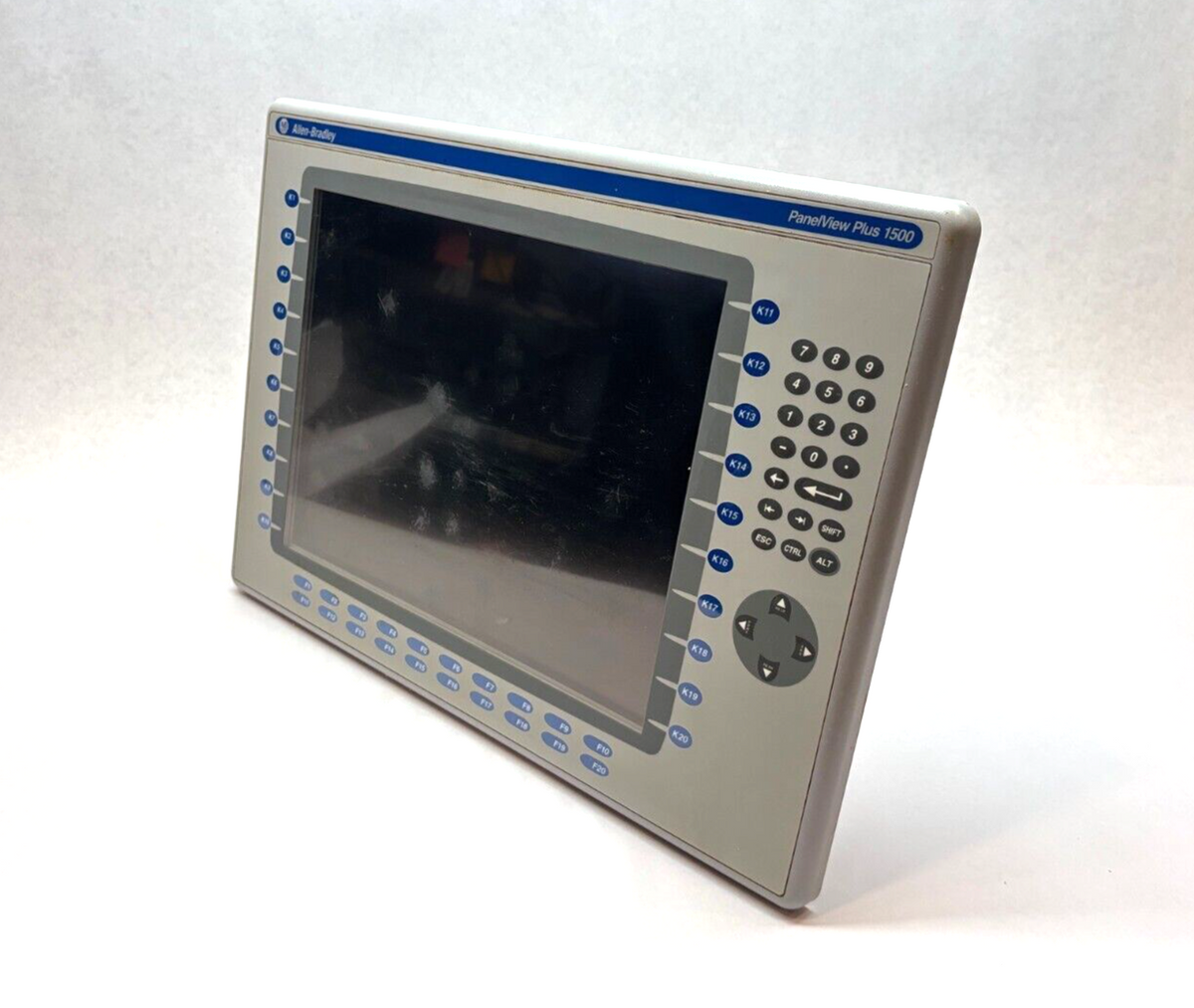

Allen Bradley 2711P-B15C4A9 Ser. A PanelView Plus 1500 HMI Control Terminal
Condition: Used

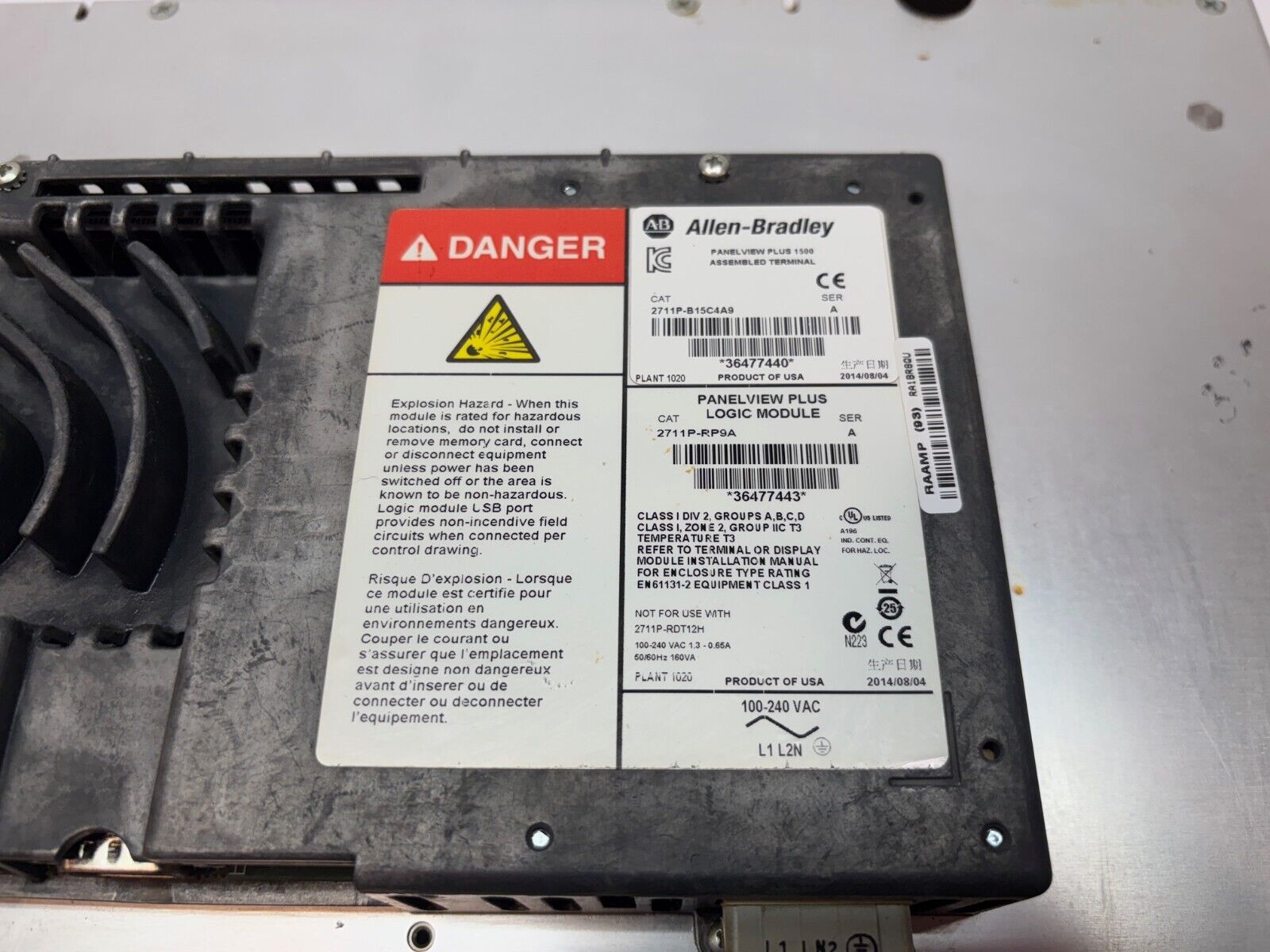

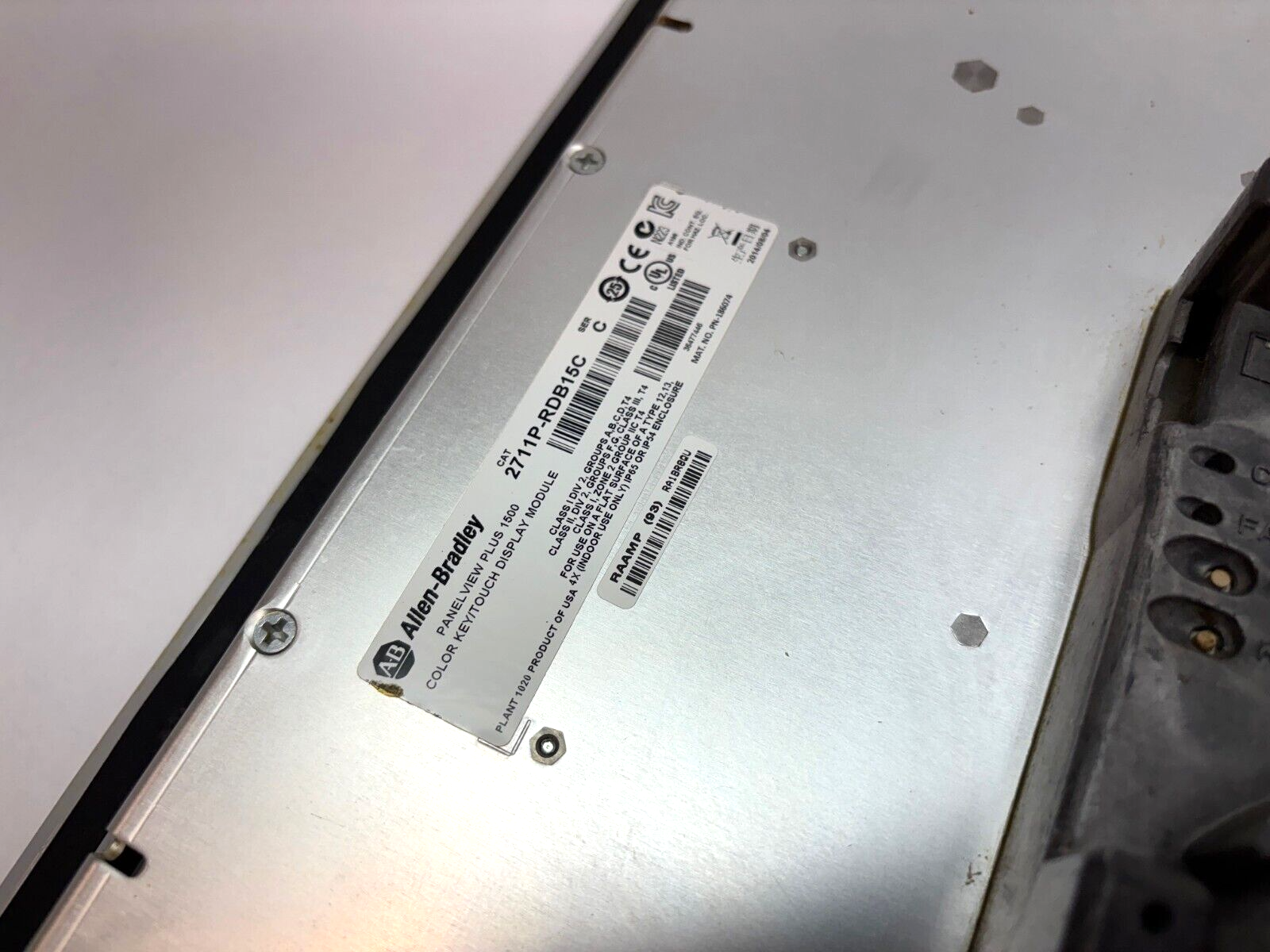

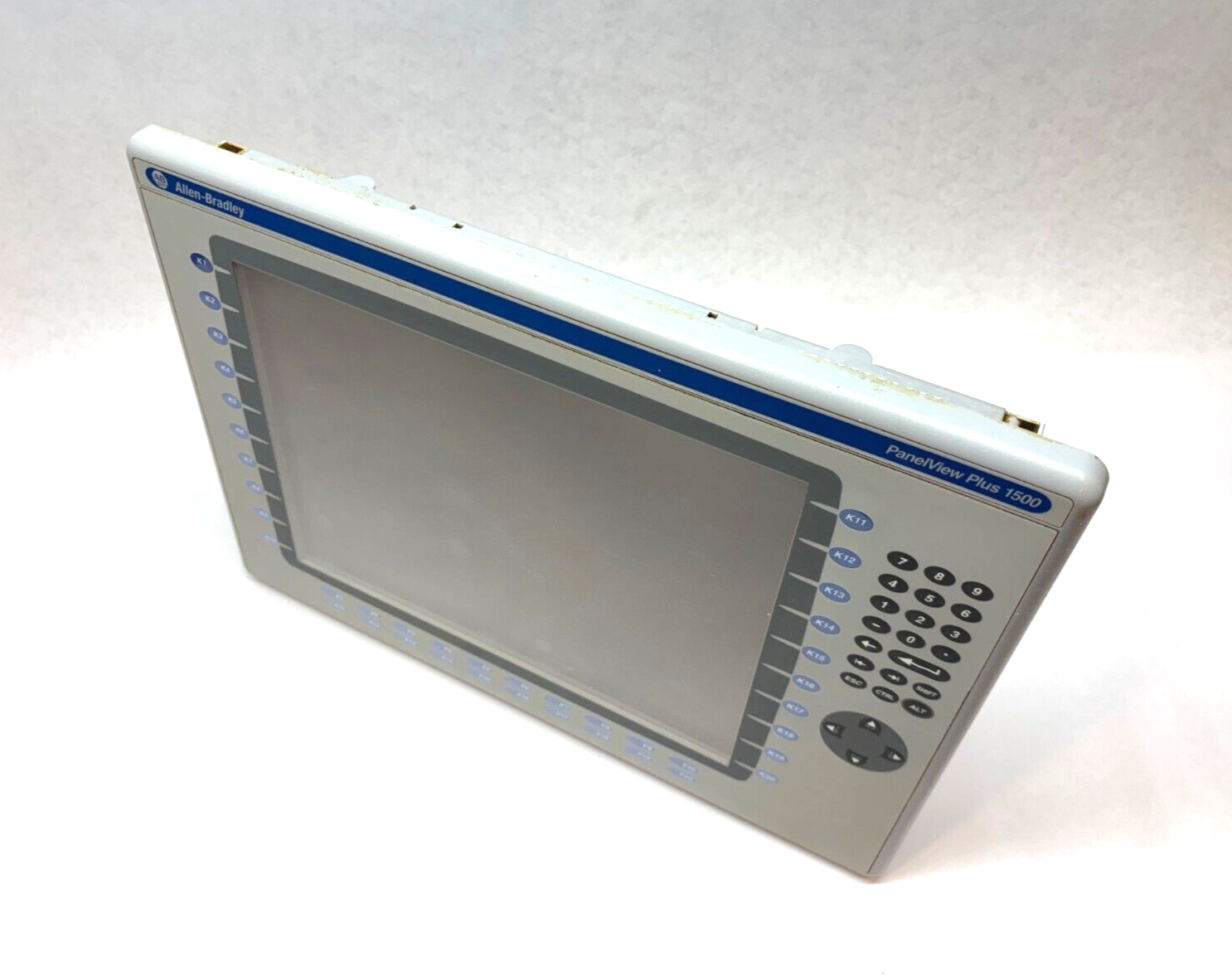

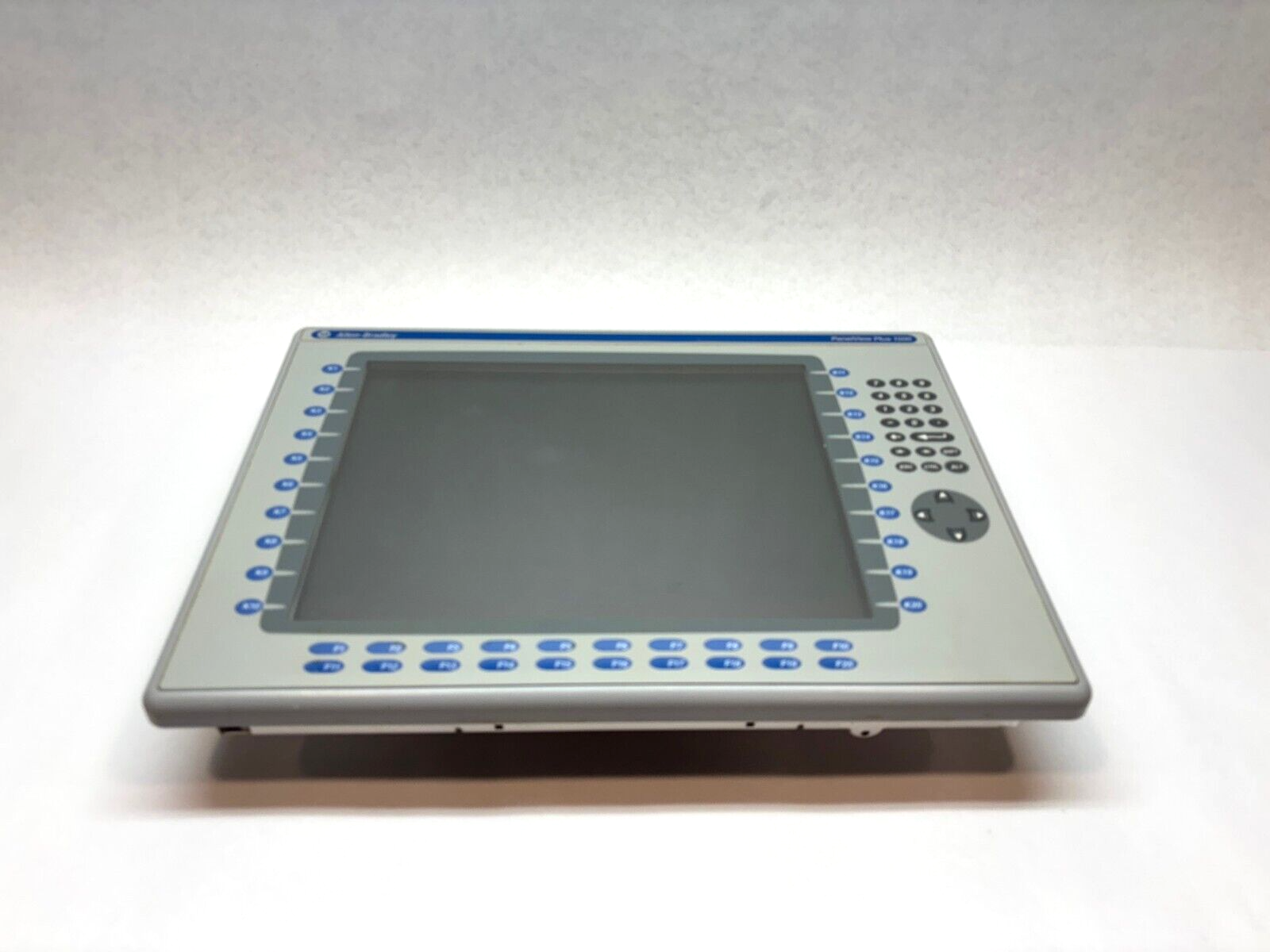

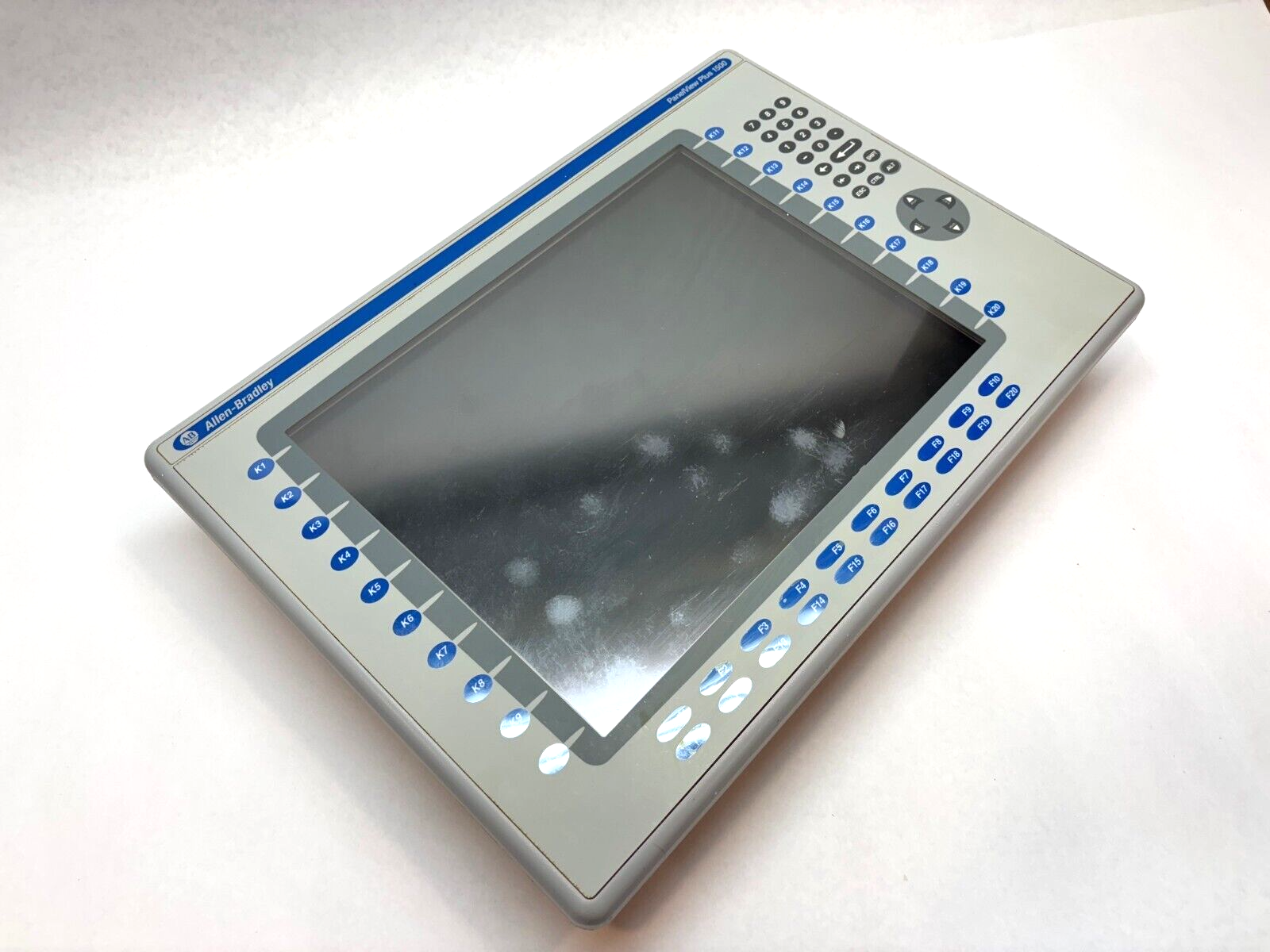

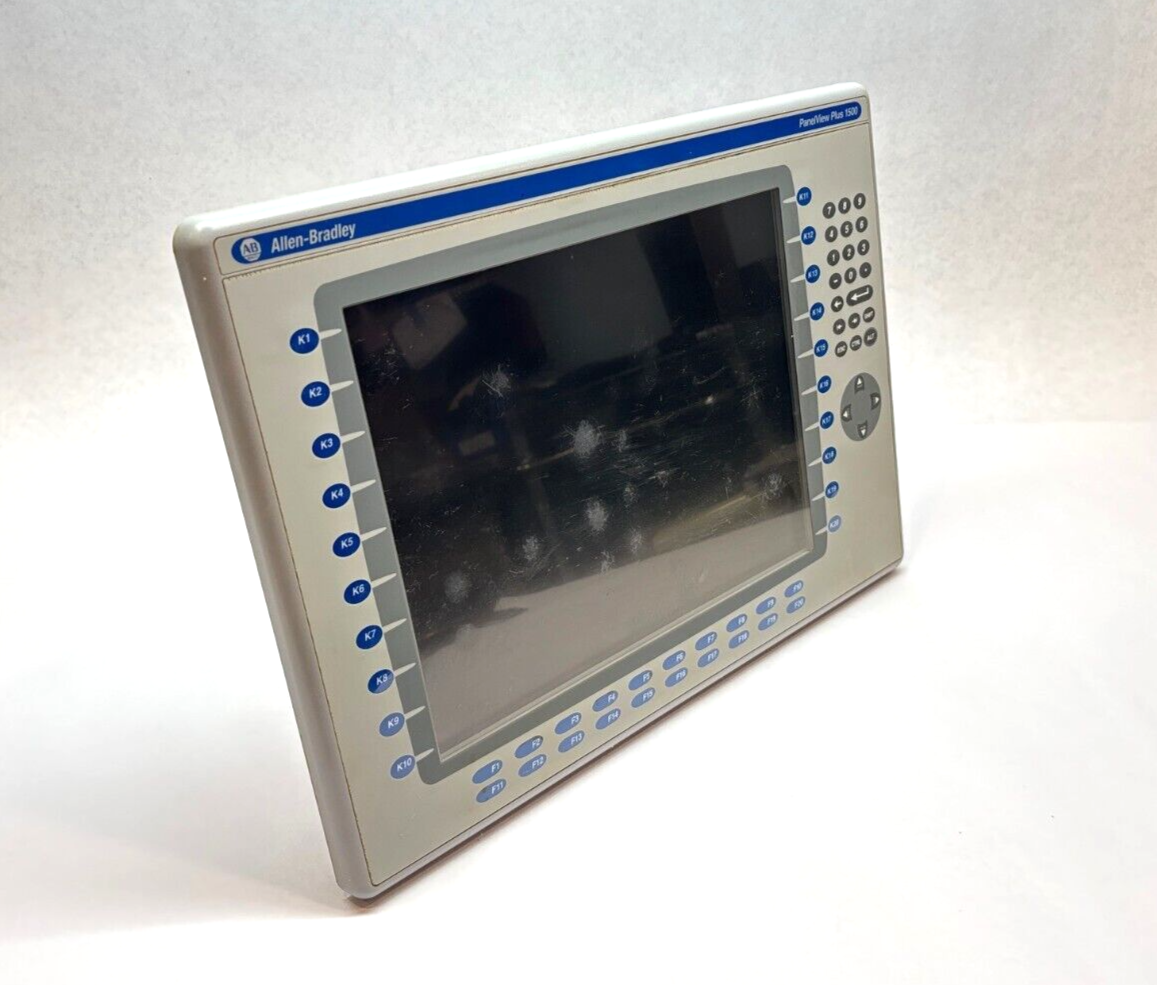

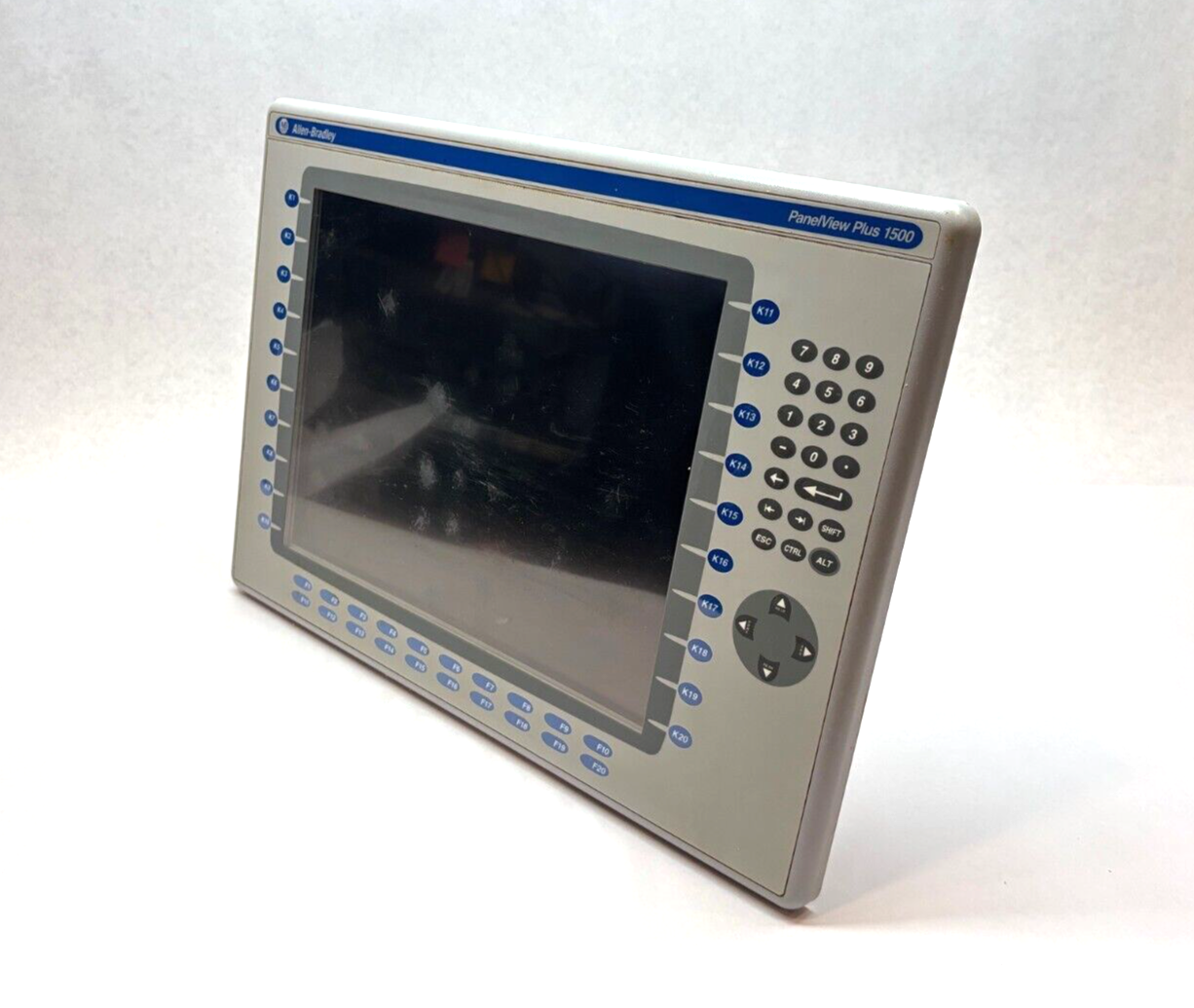

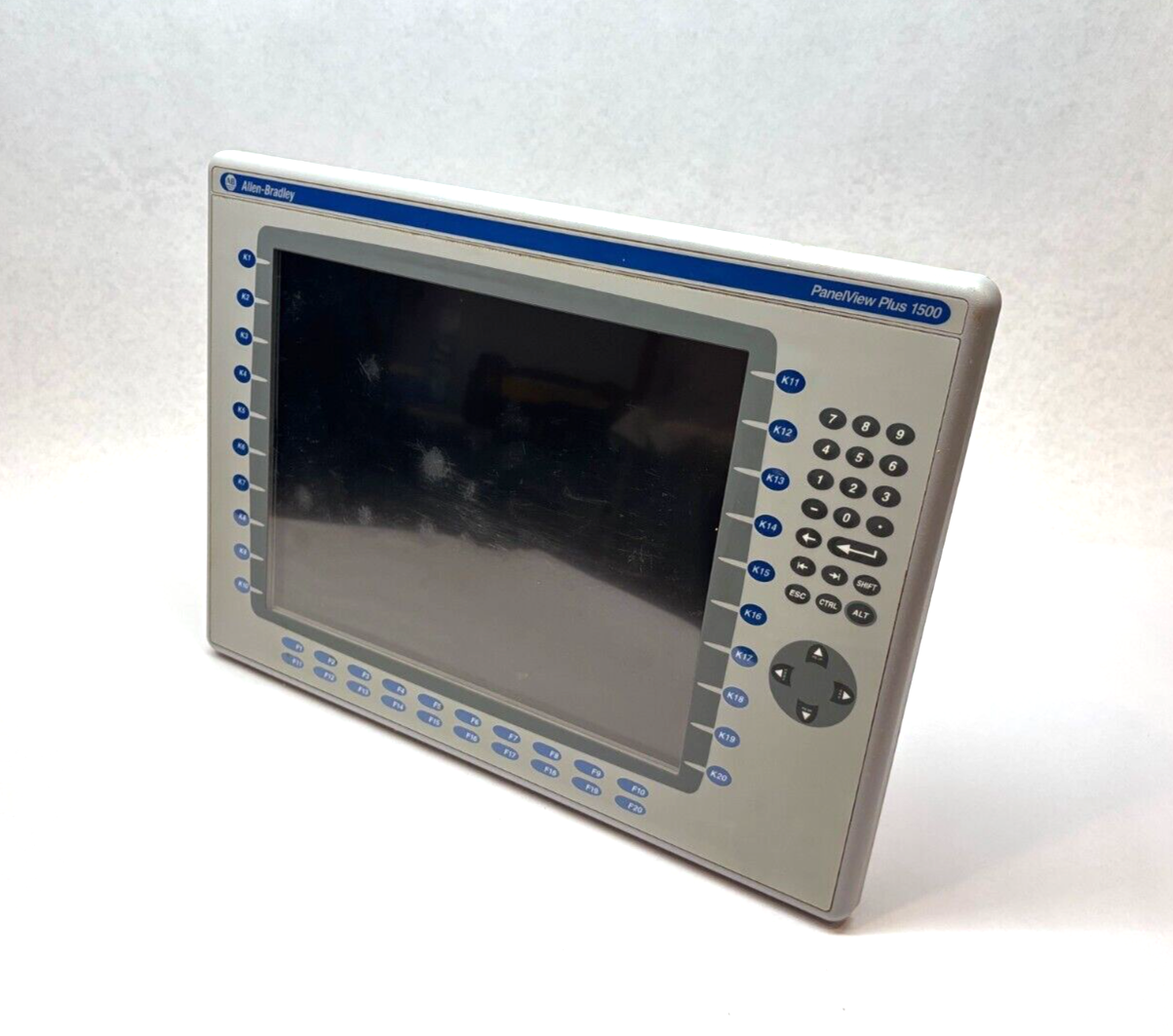

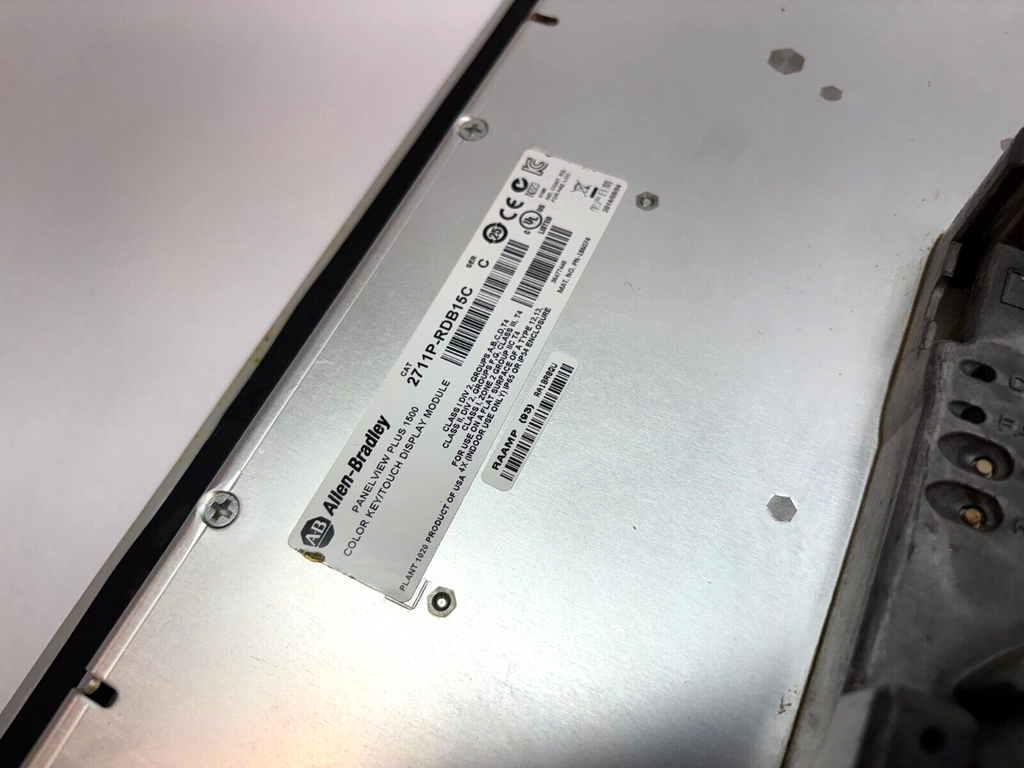

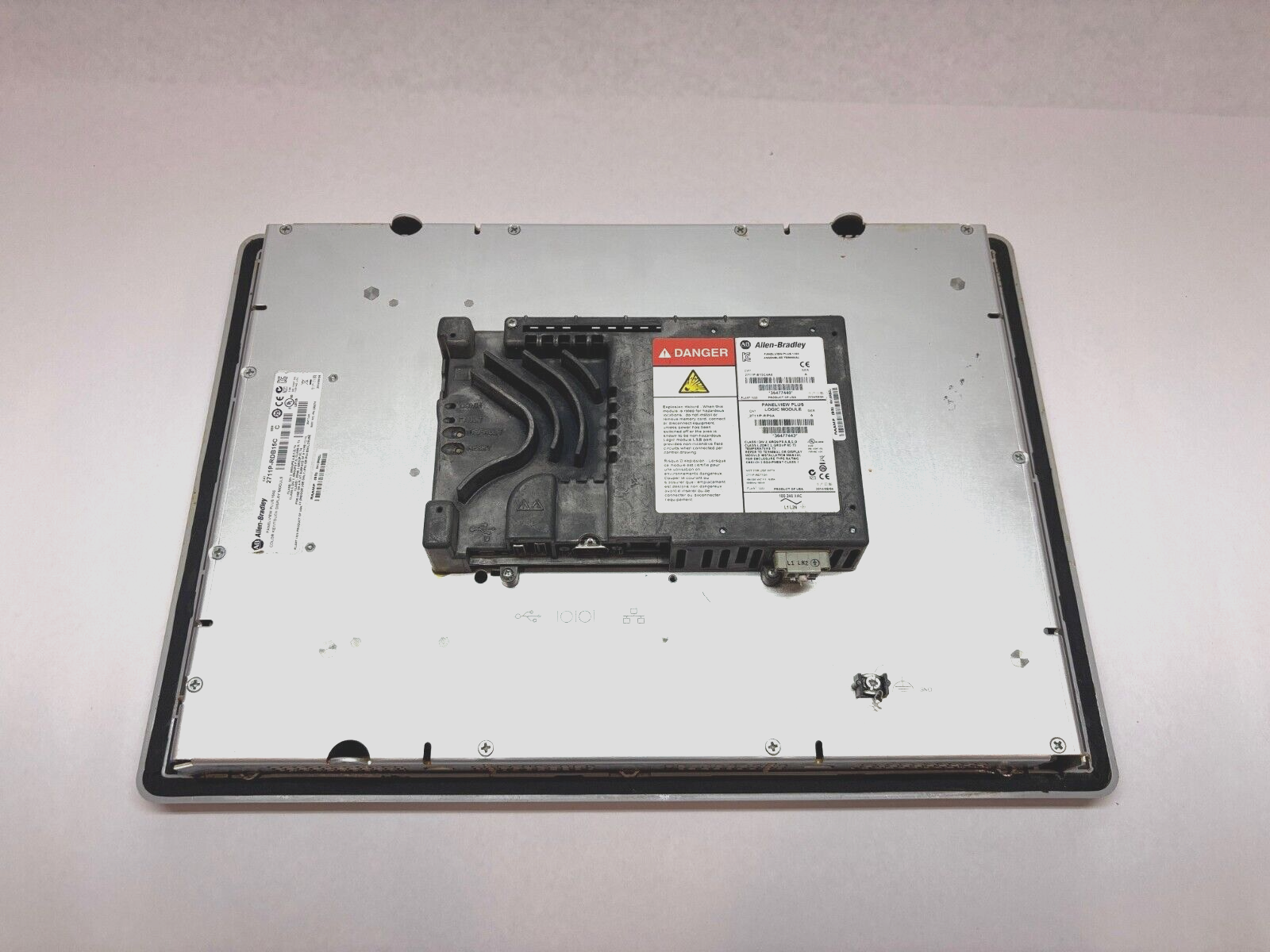

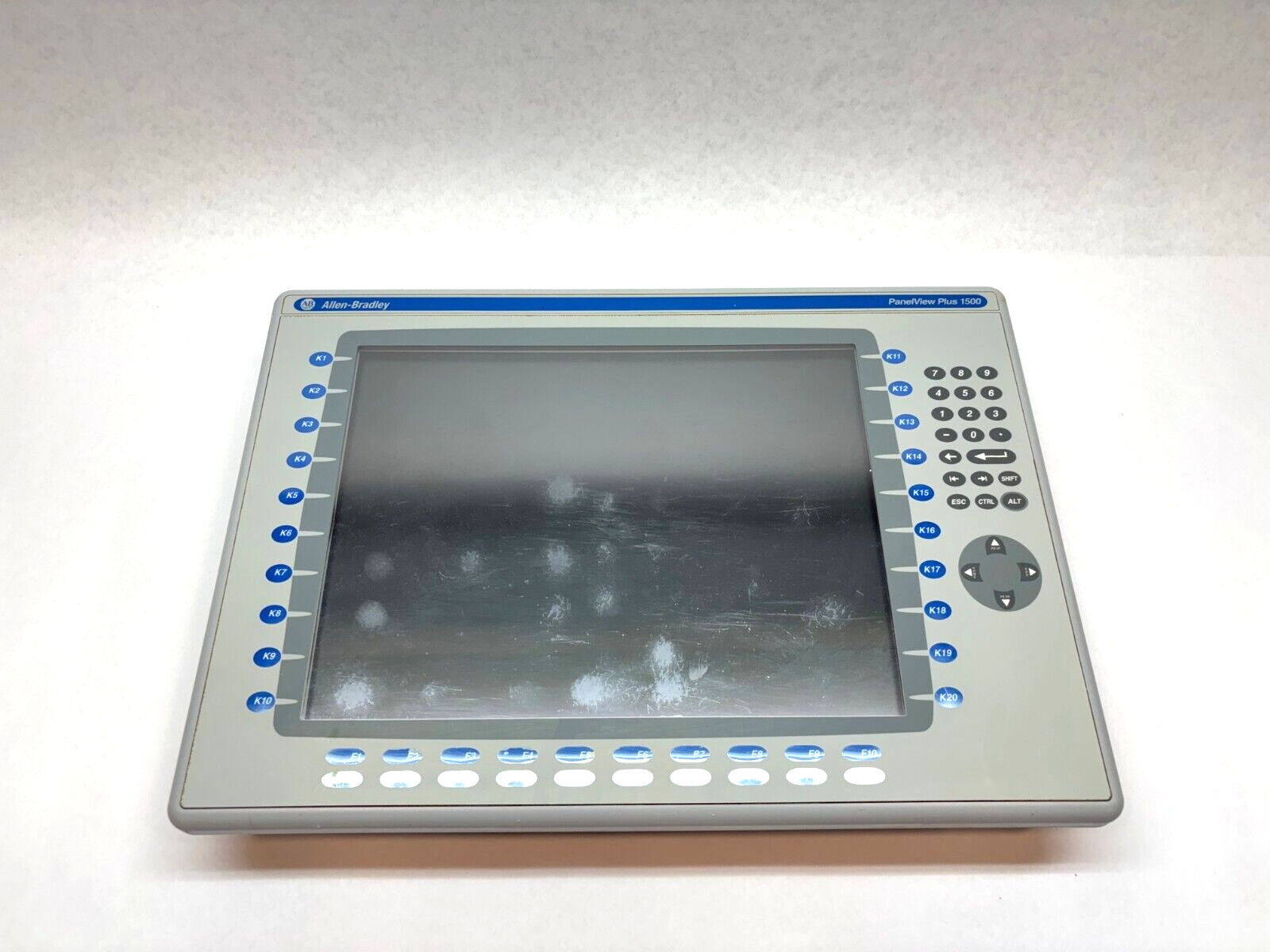

Condition Description: Used unit as seen in the images. Includes 30 day warranty.
Model: PanelView Plus 1500
MPN: 2711P-B15C4A9
Custom Label: 2-K1E-93972-MG-ZN
Specifications
| Brand | Allen-Bradley |
|---|---|
| Catalog Number | 2711P-B15C4A9 |
| Series | A |
| Product Type | PanelView Plus Terminal |
| Display Size | 15 in Color TFT, 1024×768 |
| Input Interface | Keypad & 8-wire Resistive Touch |
| Communication Ports | Ethernet (10/100 Mbps), RS-232, (2) USB Host |
| Protocol Support | EtherNet/IP, TCP/IP |
| Operating Voltage | 100–240V AC, 50–60 Hz |
| Power Consumption | 160VA max, 65VA typical |
| Memory | 512 MB RAM / 512 MB Nonvolatile (~79 MB user) |
| Operating System | Windows CE 6.0 |
| IP / NEMA Rating | IP65 / NEMA 4X (front); IP54, 12, 13 overall |
| Dimensions | 330×416×65 mm (with touch); 4.2 kg |
| Software | FactoryTalk View Machine Edition v6.0+ |
| Backlight | CCFL, 50,000 hr min, field-replaceable |
