Description
Condition: Used
Condition Description: Used item as seen in the images. No additional items are included in the sale. 30-day warranty included.

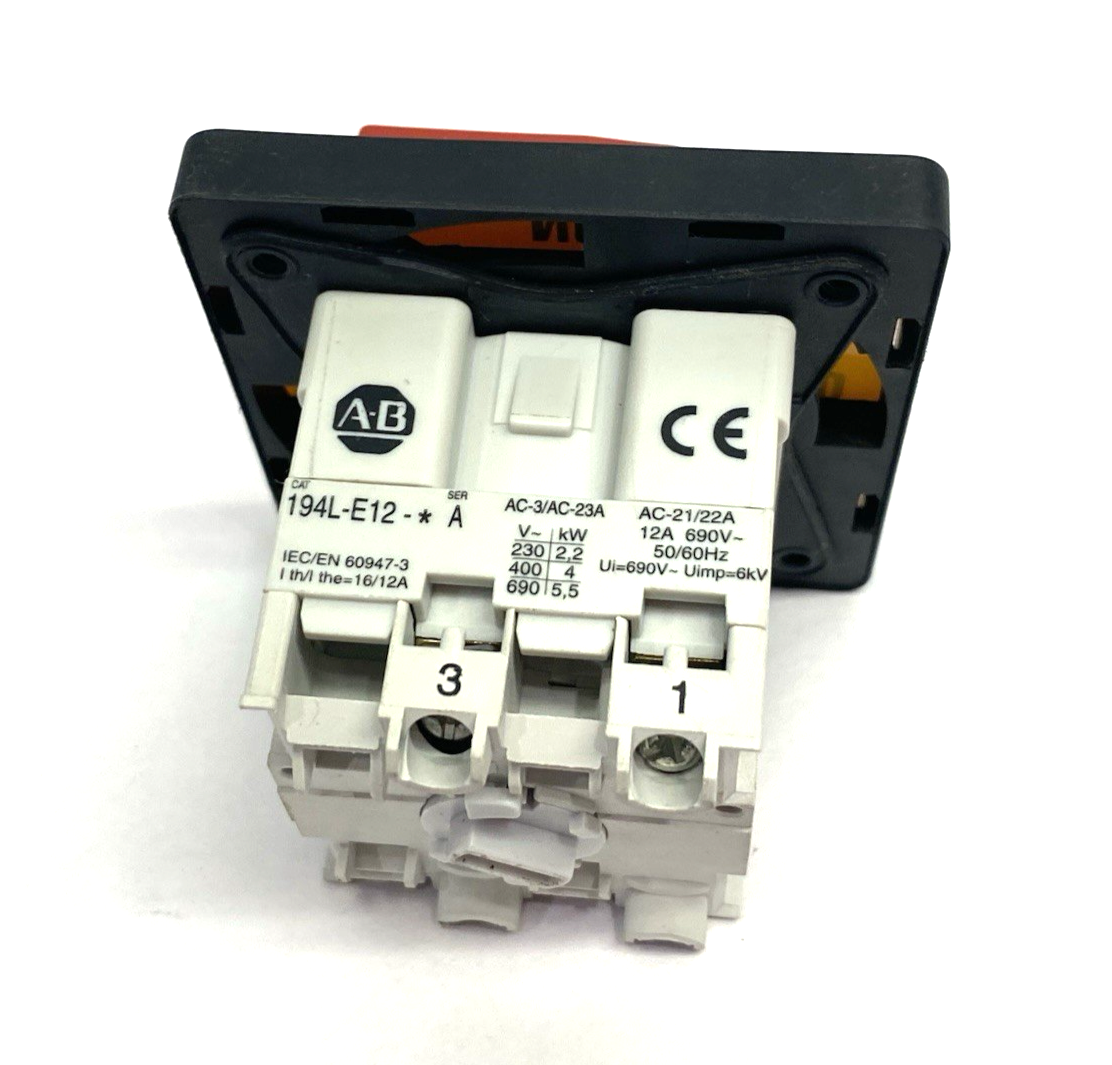

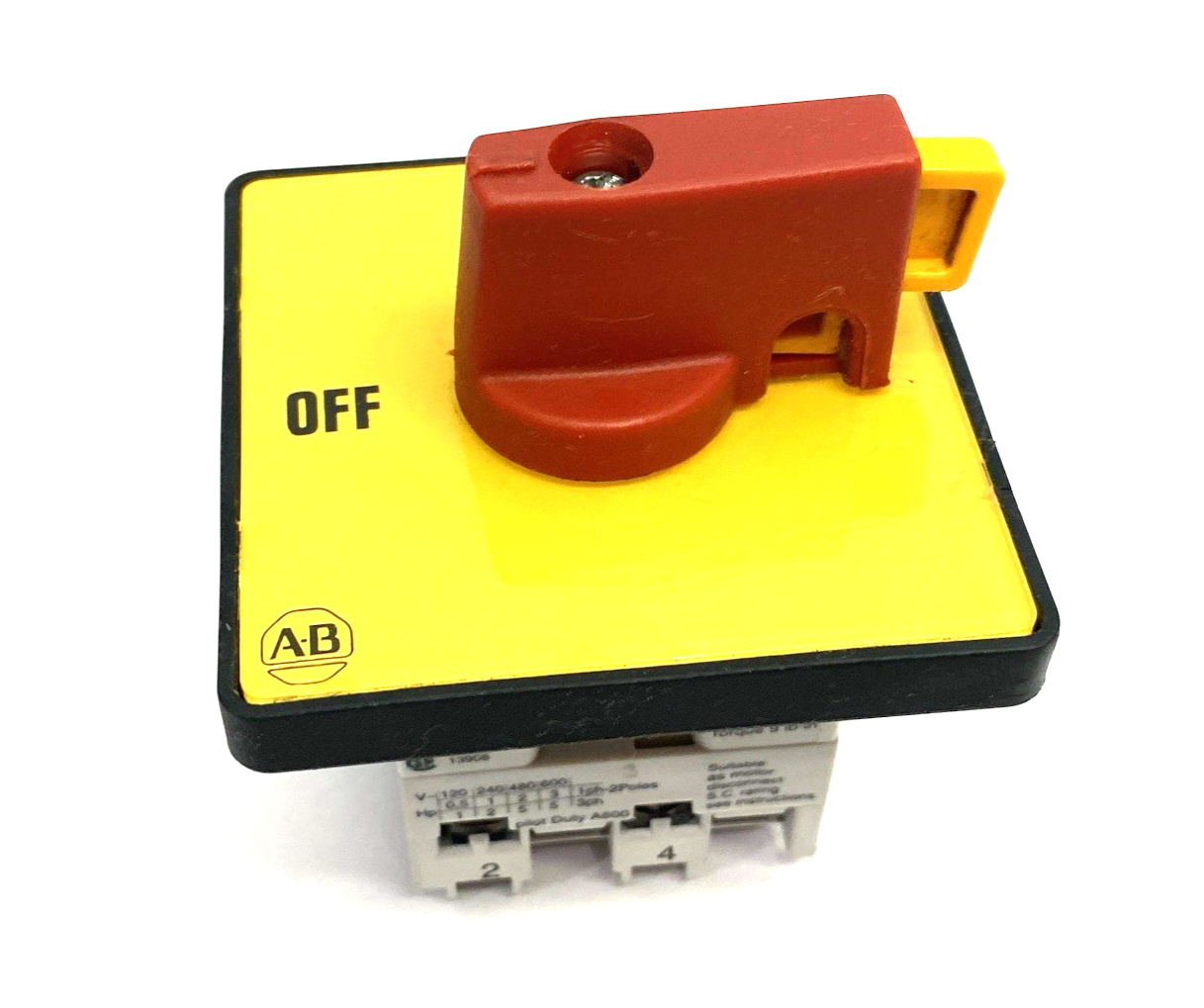

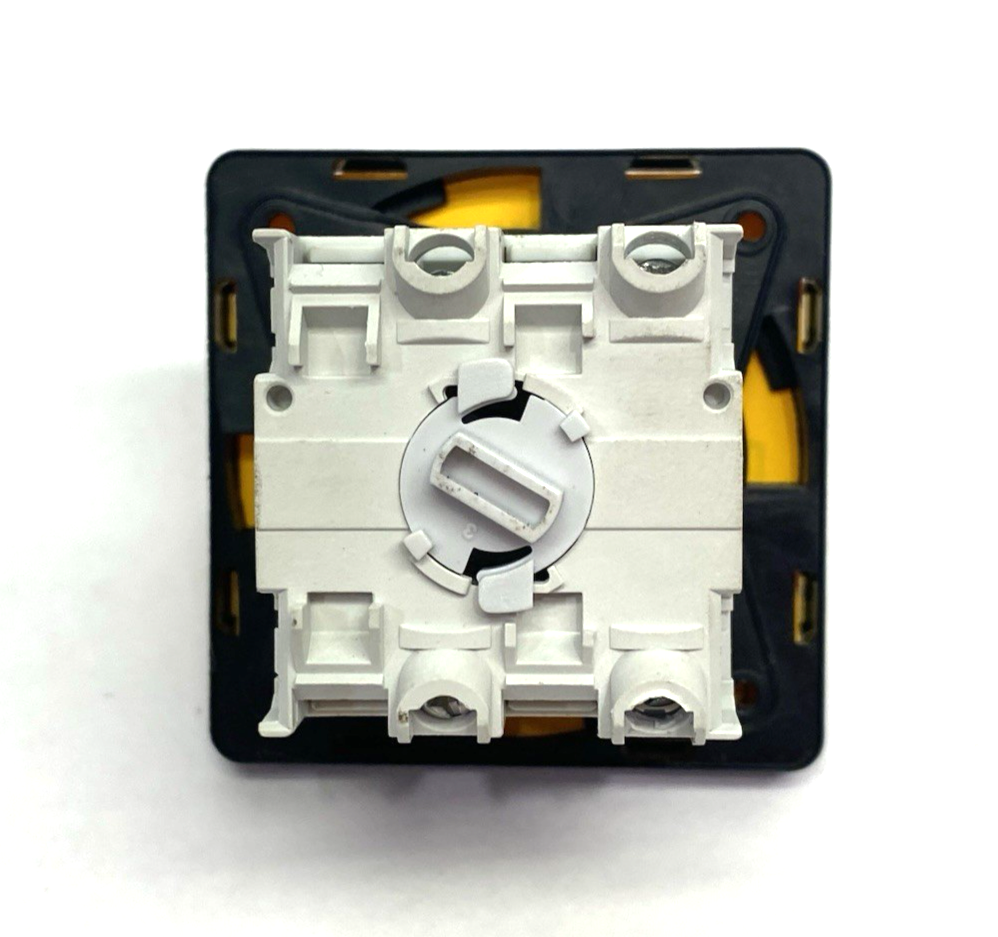

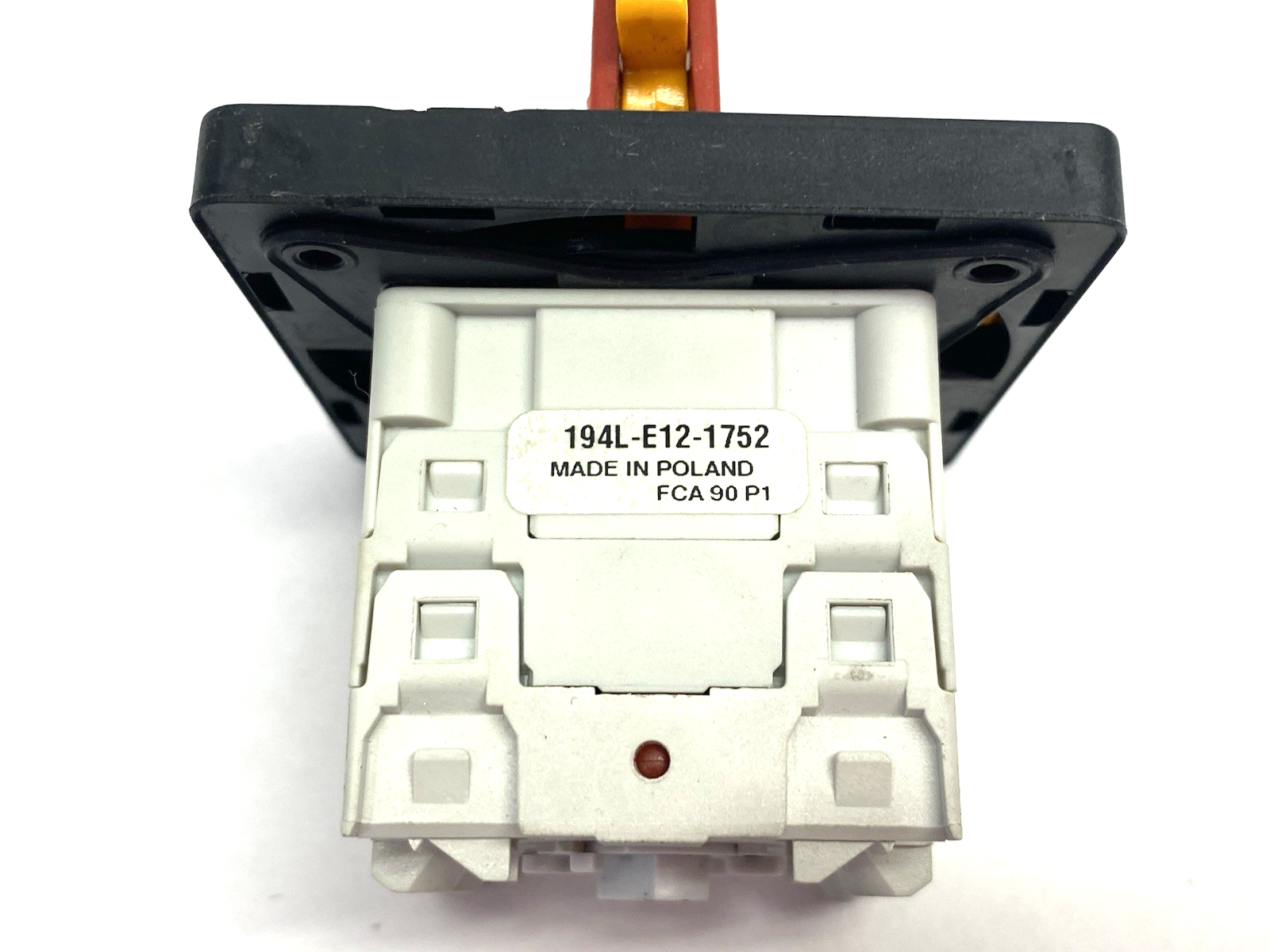

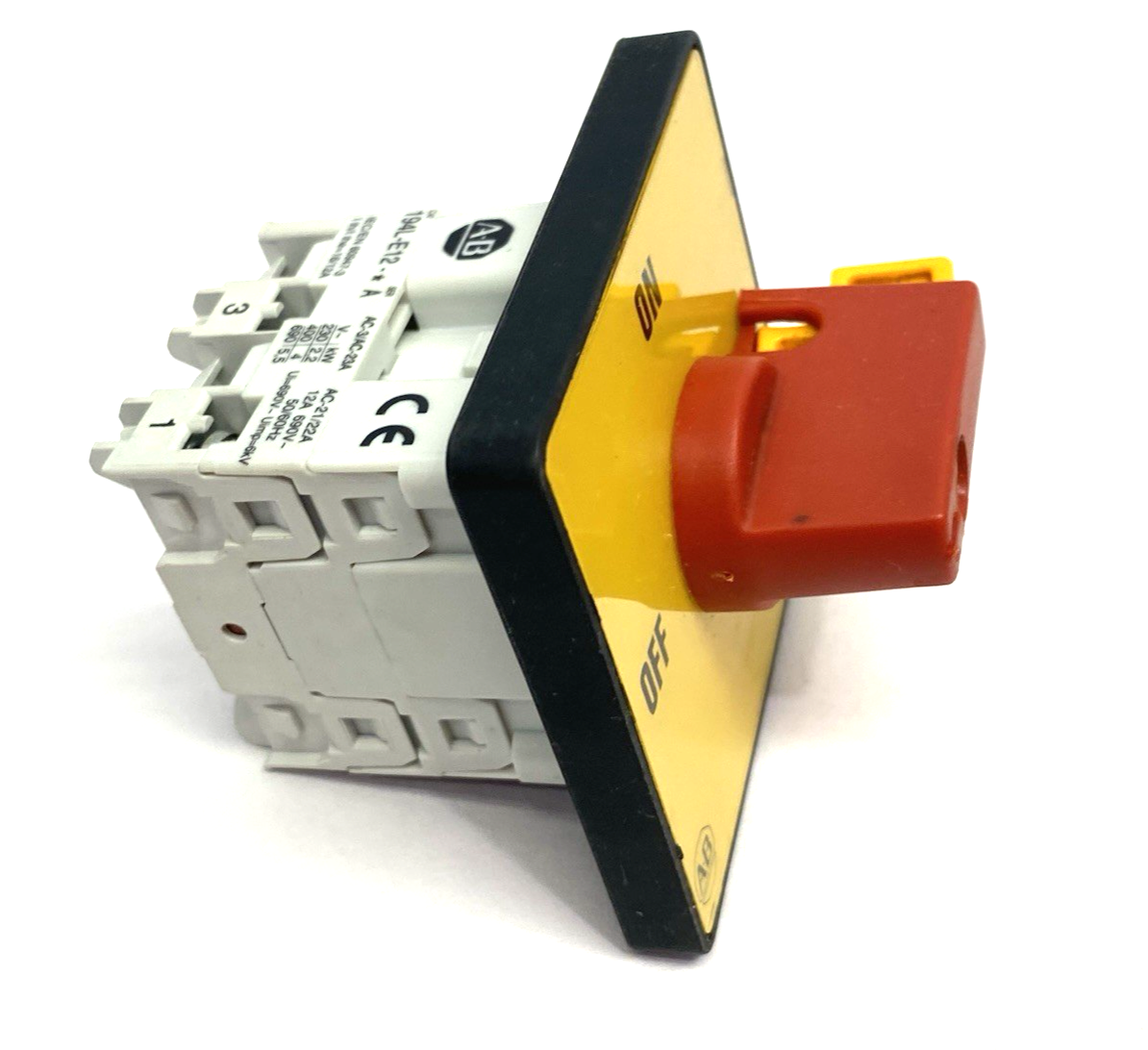

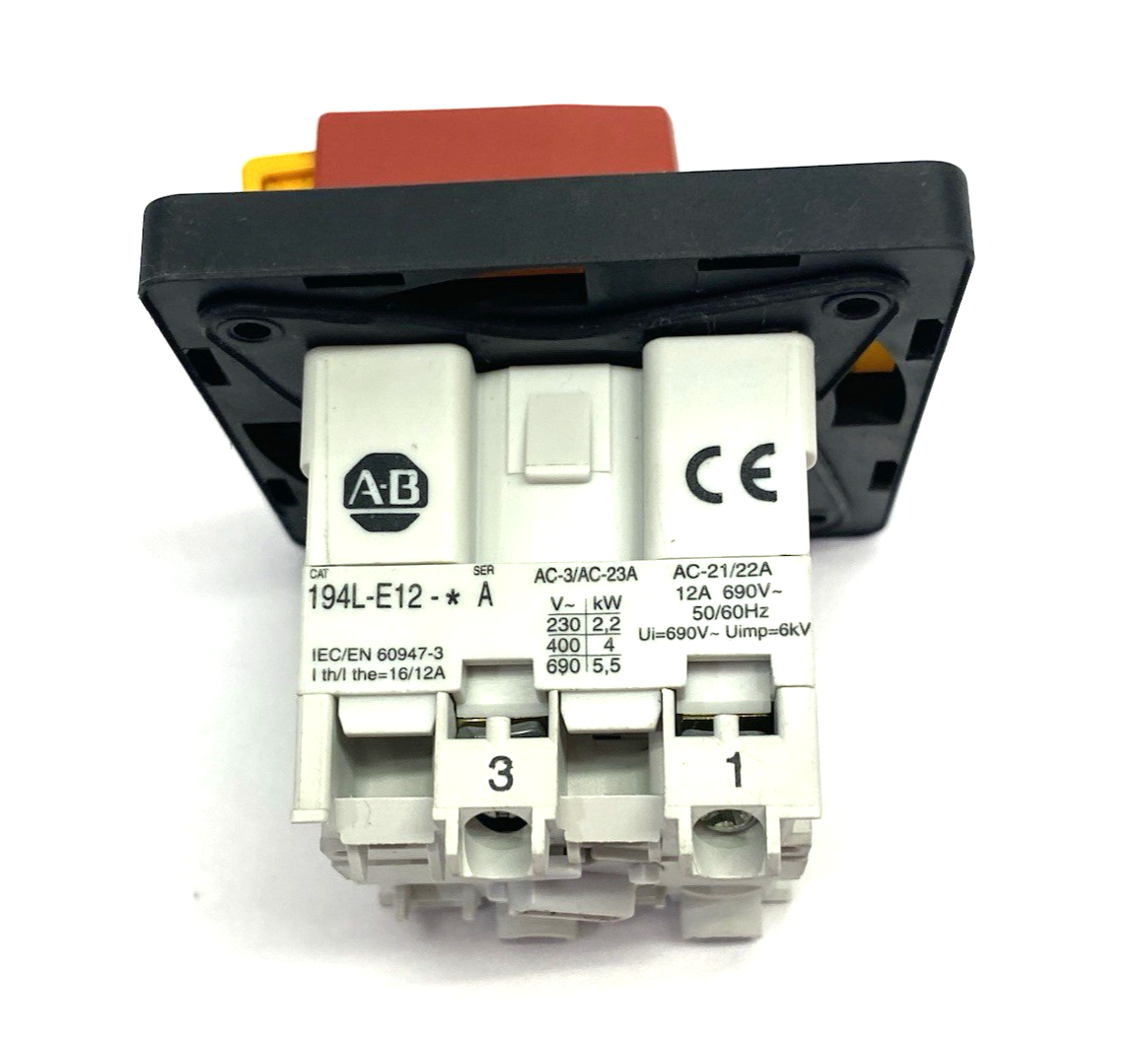

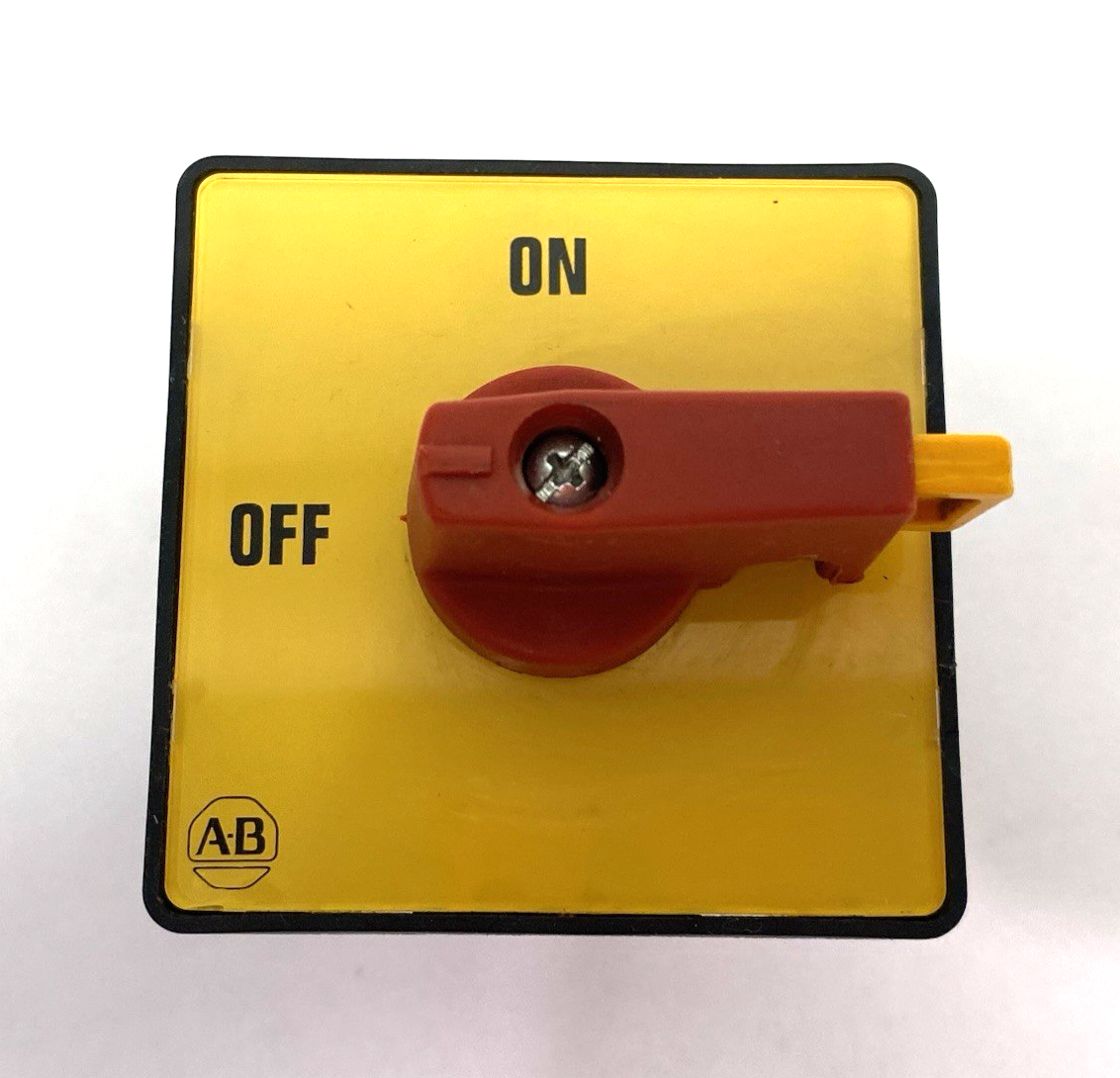

Model: Ser. A IEC Control and Load Switch w/ 194L-HE6L-175I
MPN: 194L-E12-1752
Custom Label: 2-F2H-120576-JL-GX
Specifications
| Brand | Allen-Bradley |
|---|---|
| Catalog Number | 194L-E12-1752 |
| Series | A |
| Product Type | Load Switch |
| Switch Type | ON/OFF 90° Manual Load Switch |
| Current Rating | 12 A (Rated Permanent Current) |
| Voltage Rating | 690V per IEC-947 |
| Poles | 2 |
| Connection Type | Screw Terminals |
| IP Rating | IP66 (Front Side) / IP20 (Switch Bodies) |
| Wire Gauge | 18–12 AWG (1–2.5 mm²) |
| Housing Material | Plastic |
| Installation | Front-Mount, Open-Front/Door |
| Mechanical Life | 1,000,000 operations |
