Description
Condition: Used
Condition Description: Used item as seen in the images. No additional items are included in the sale. 30-day warranty included.
MPN: 194E-E32-1753
Custom Label: 6-PP2G-109331-BL-GX
Specifications
| Brand | Allen-Bradley |
|---|---|

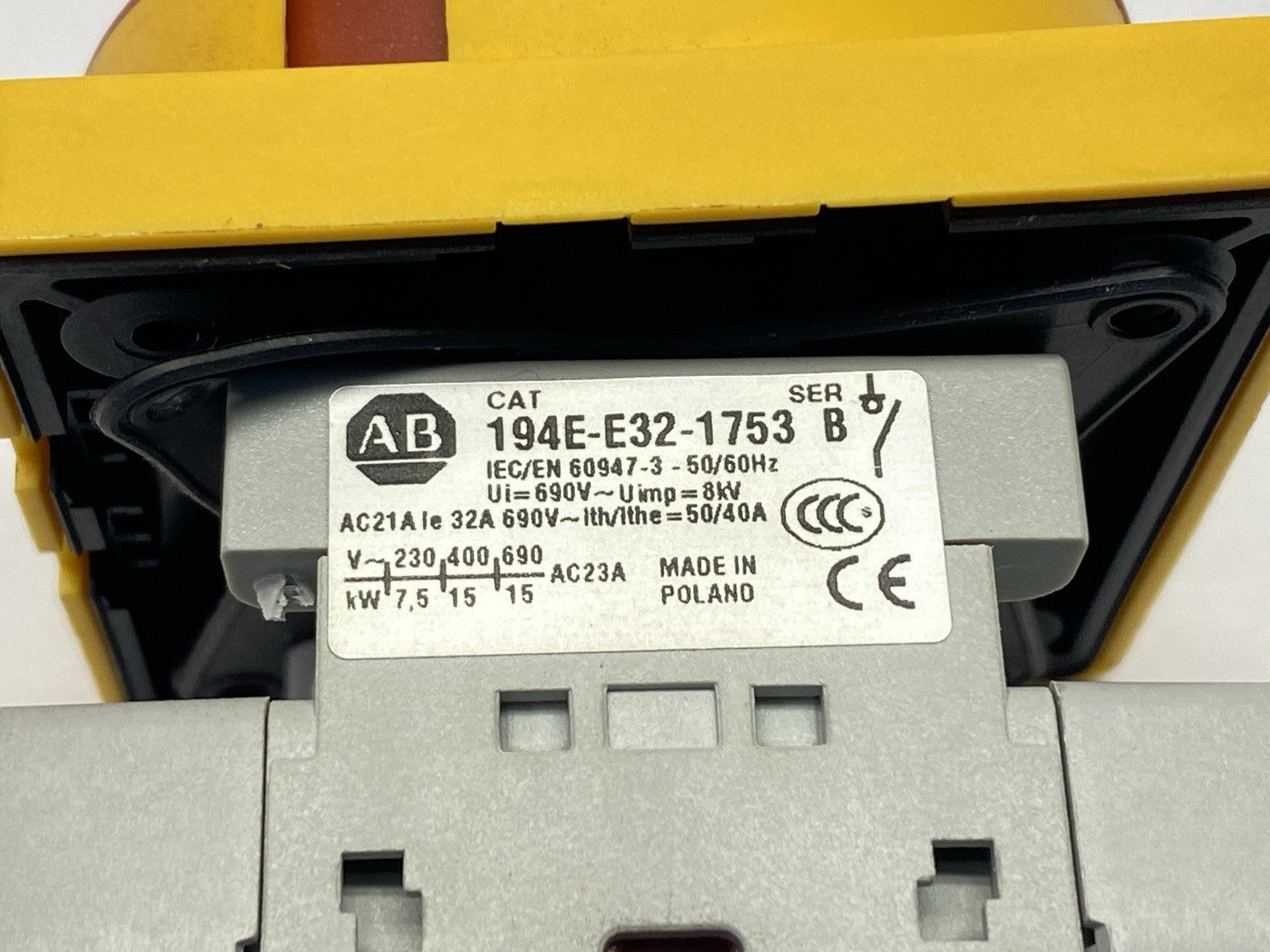

| Catalog Number | 194E-E32-1753 |
| Series | B |

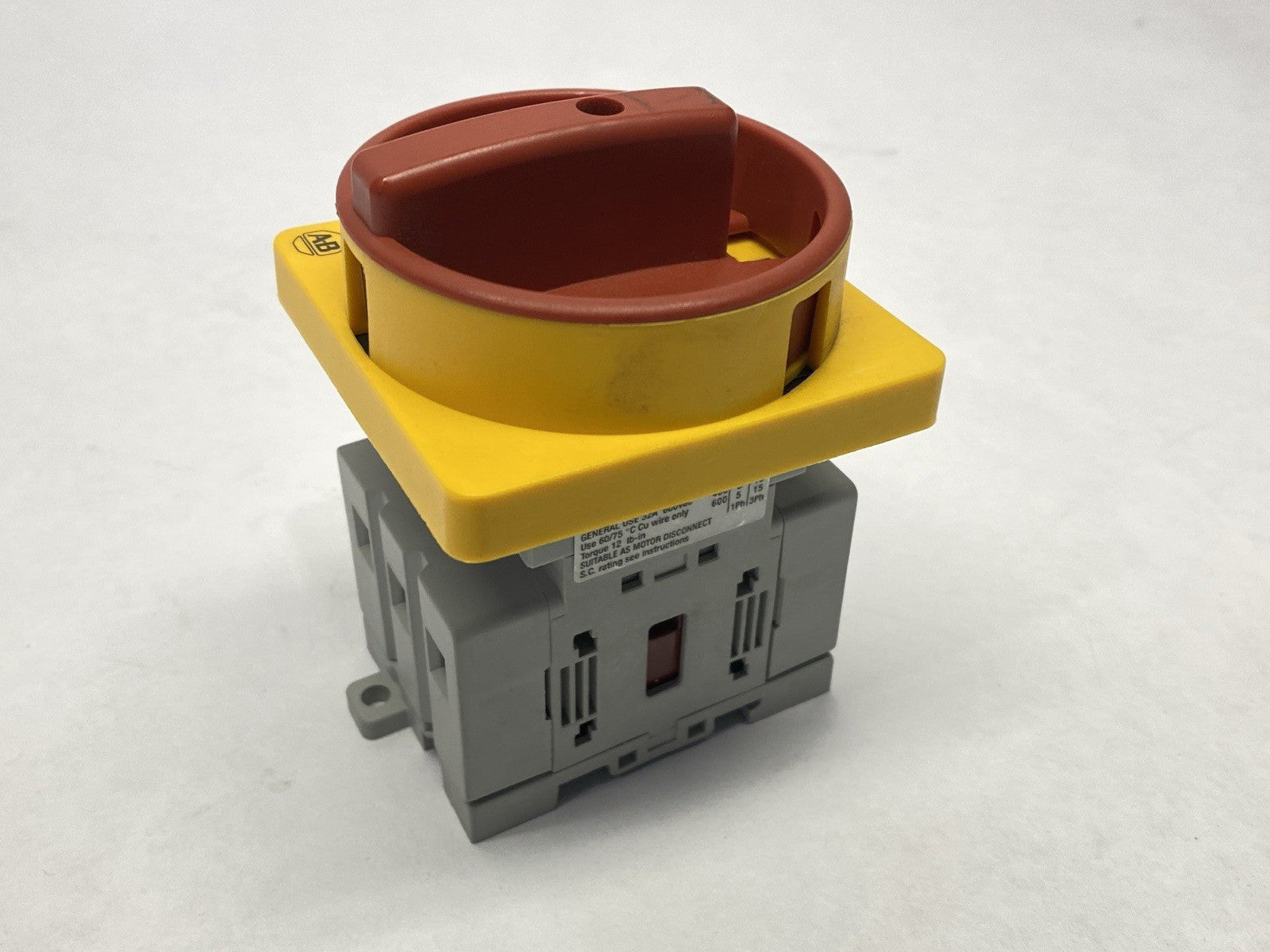

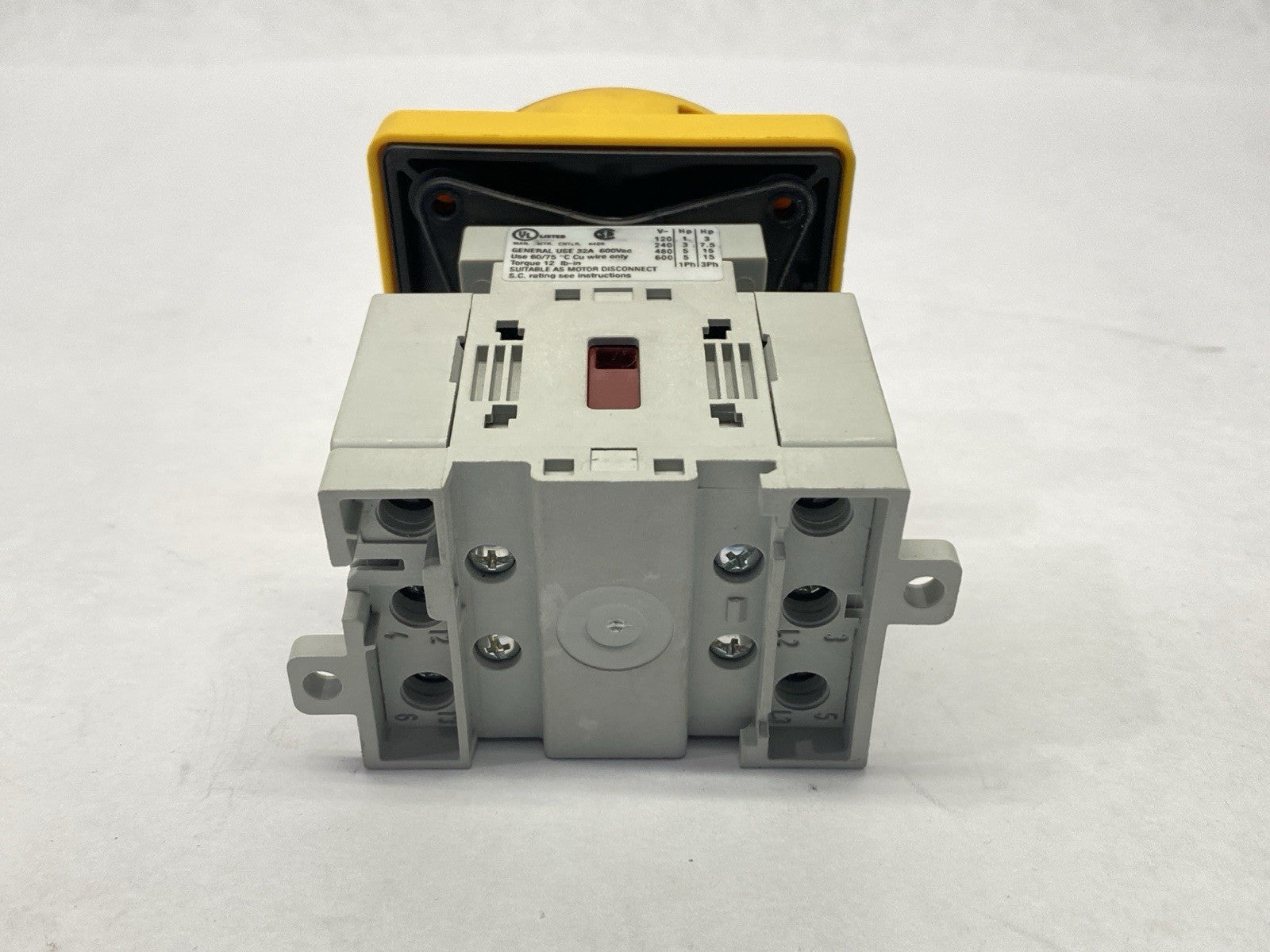

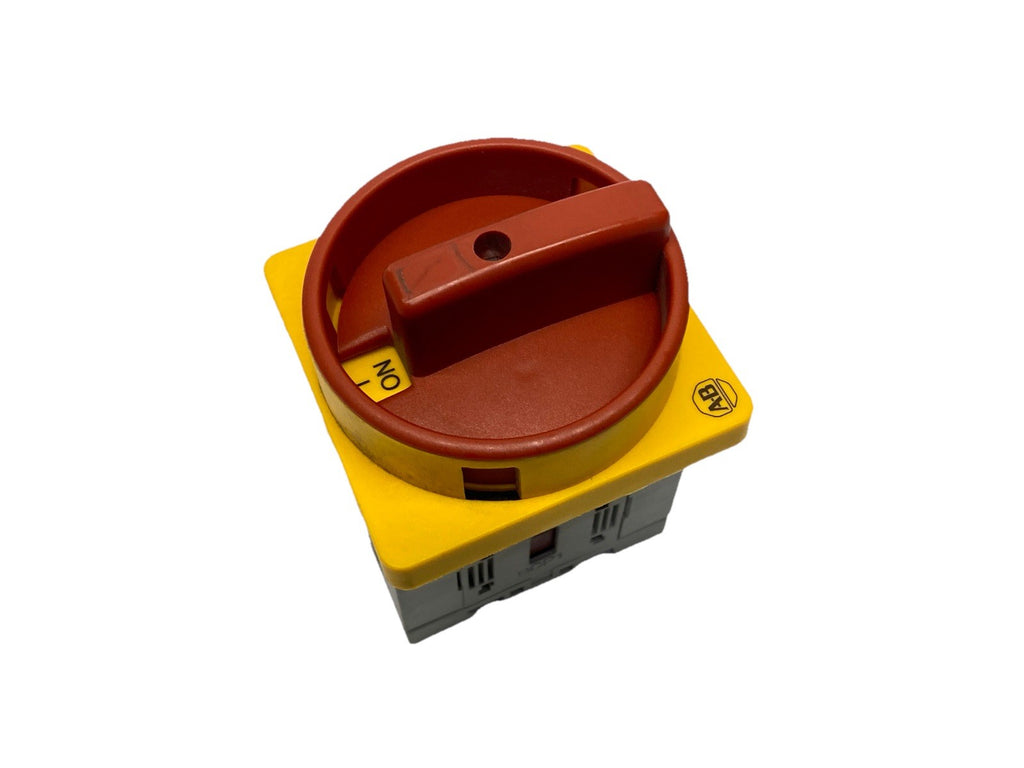

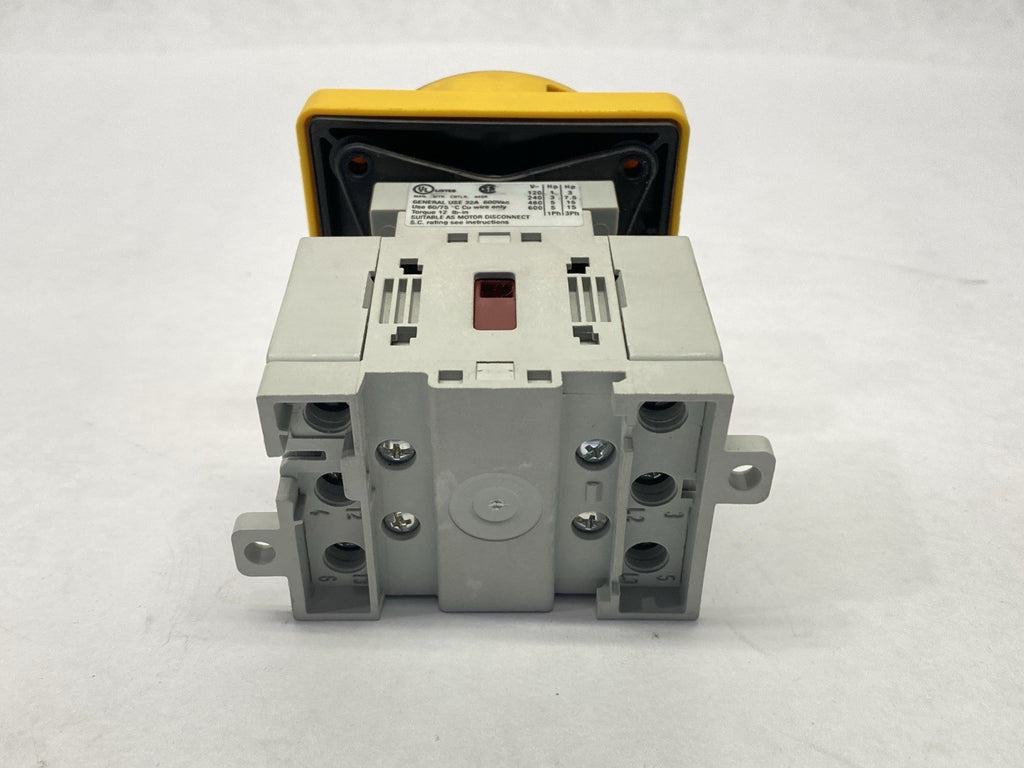

| Product Type | Load Switch |
| Type | 194E Load Switch, 32 A |
| Rated Current | 32 A |
| Rated Voltage | 690 V AC |
| Phase / Poles | 3-Phase, 3-Pole |

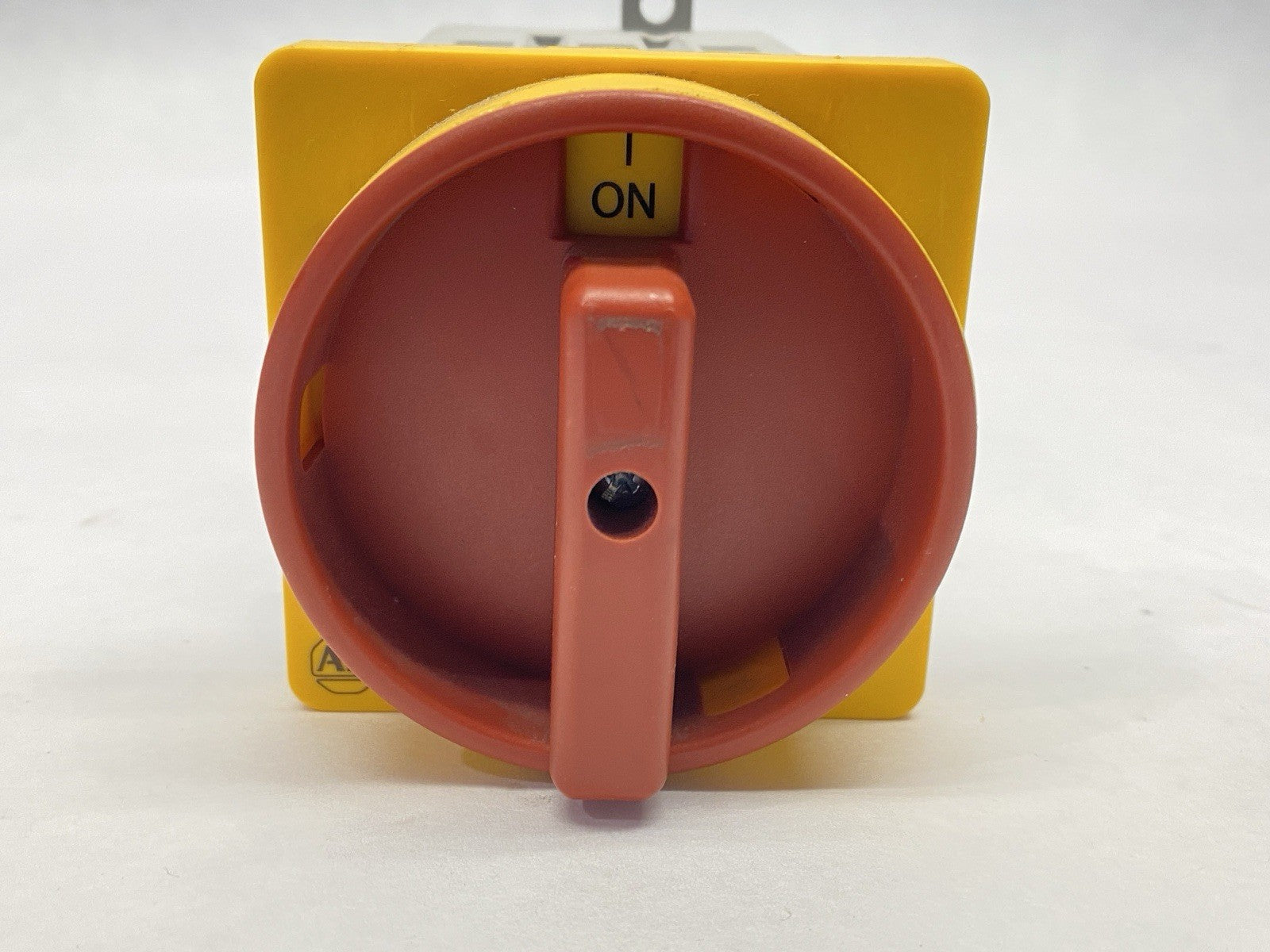

| Switch Configuration | OFF-ON 90°, Single Break |
| Rated Breaking Capacity (AC-23A) | 296 A @ 230V |
| Rated Operation Power (AC-3) | 11 kW @ 400V, 7.5 kW @ 230V |
| Motor Rating (UL/CSA) | 7.5 HP @ 240V, 60 Hz, 3-Phase |
| Connection Type | Screw Terminals |
| Degree of Protection | IP20 |
| Dimensions (W × H × D) | 45 × 64 × 60 mm |
| Installation | Front Mounting, Open-Front/Door |
