Description

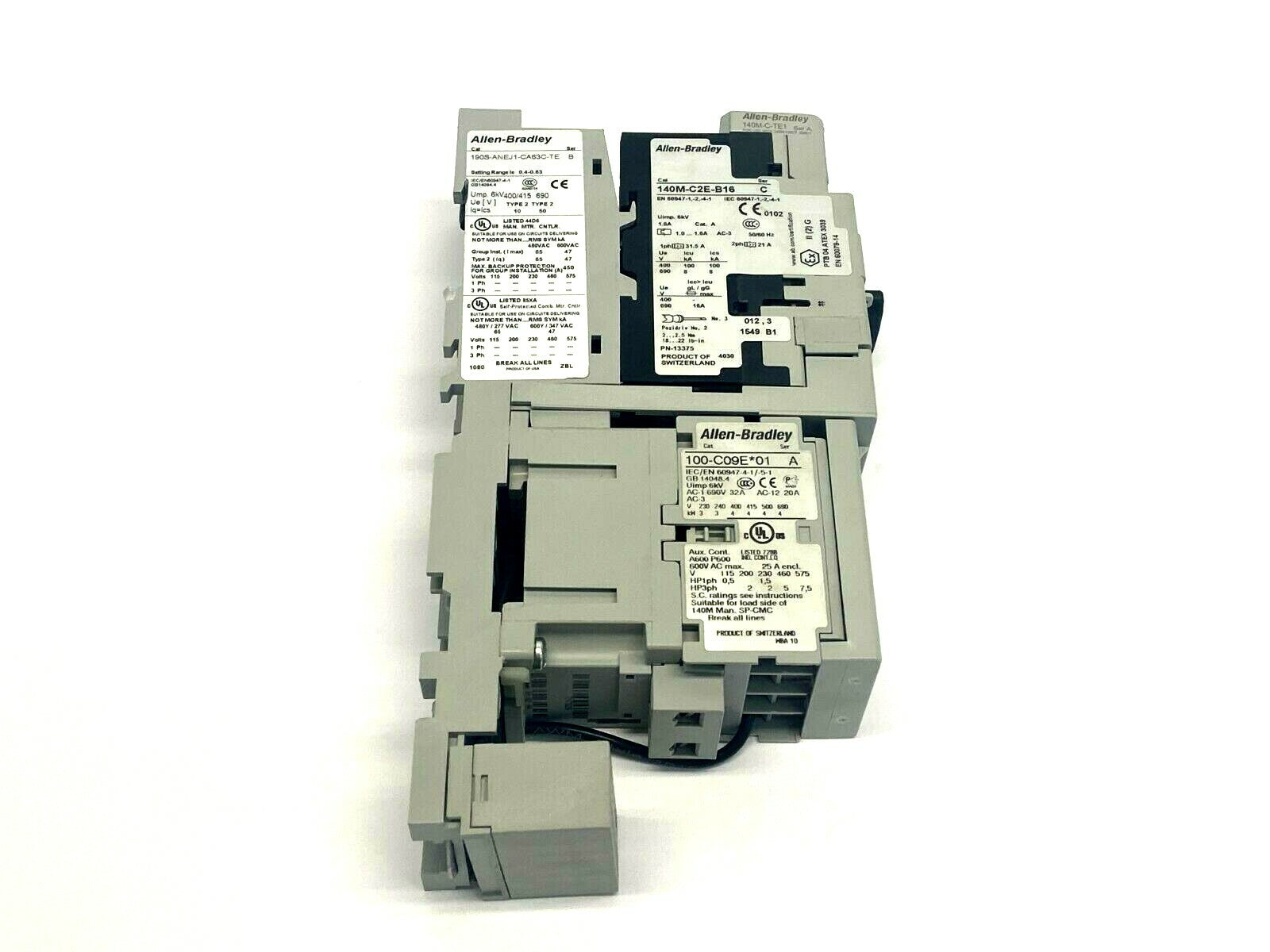

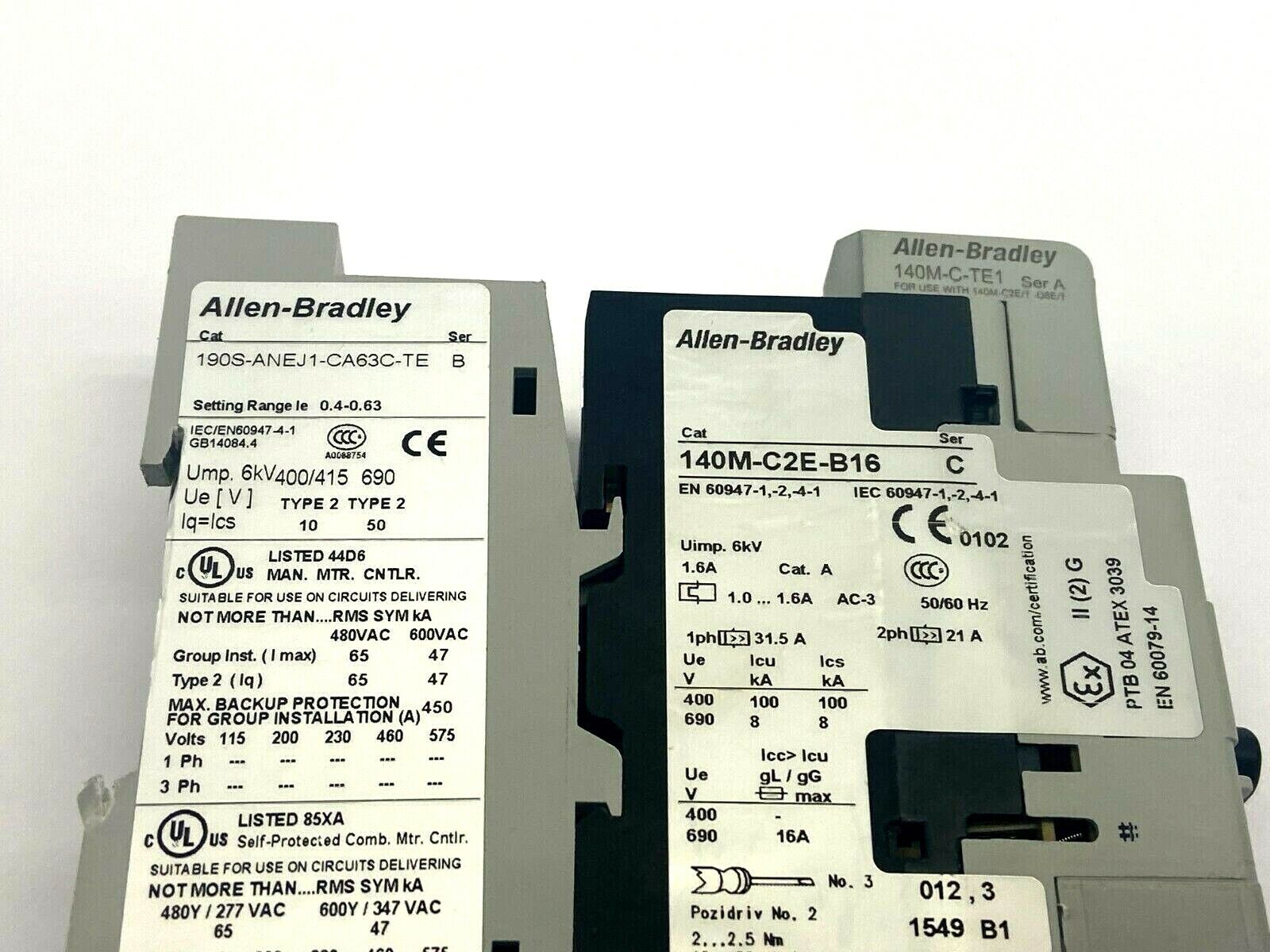

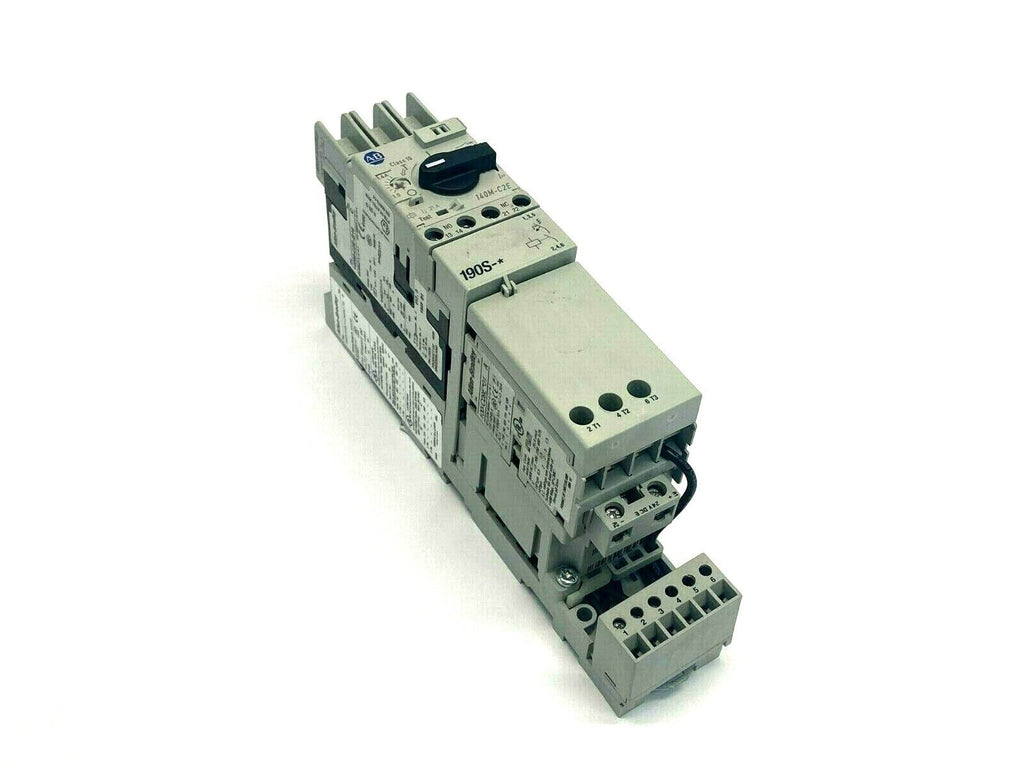

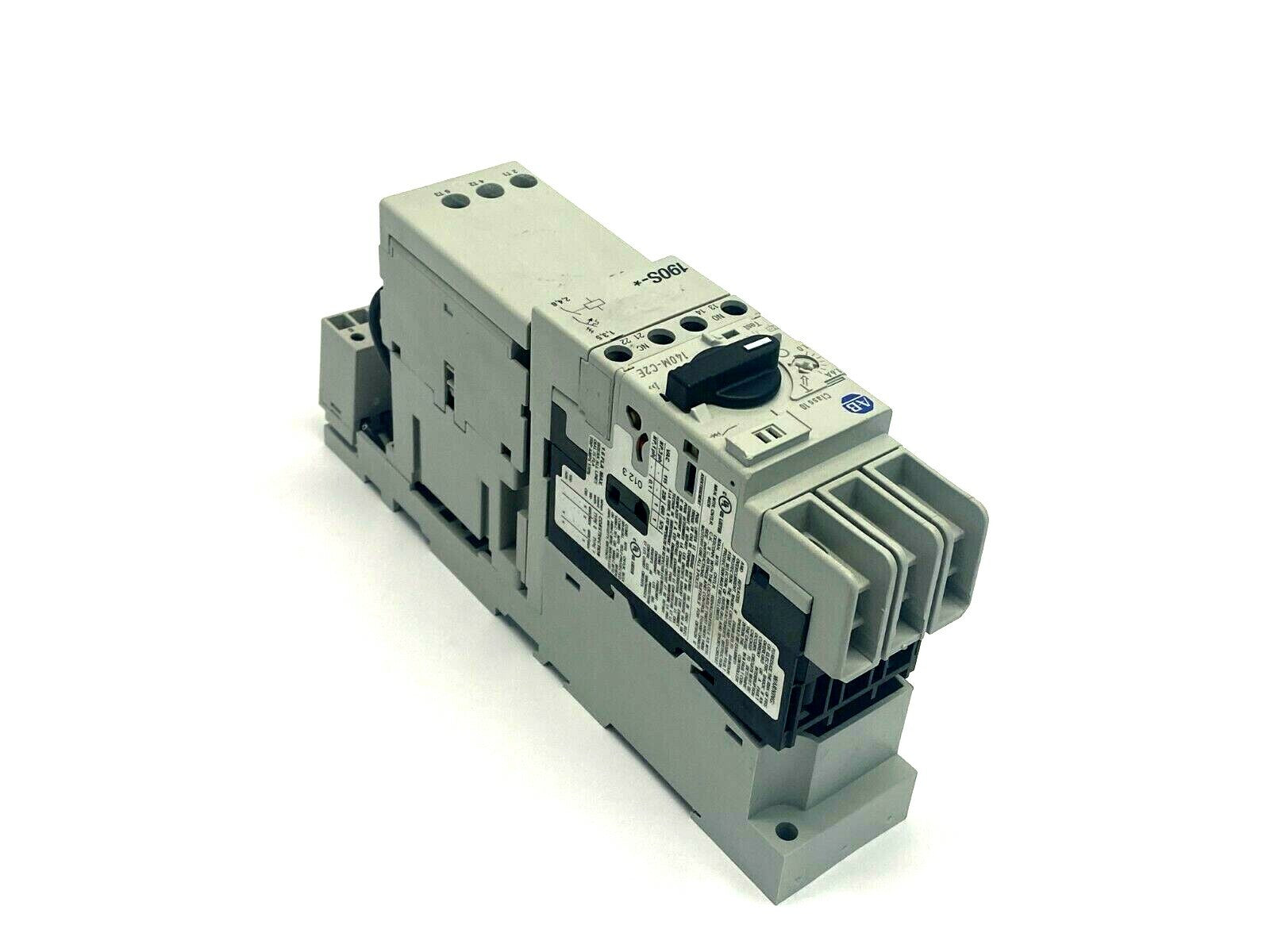

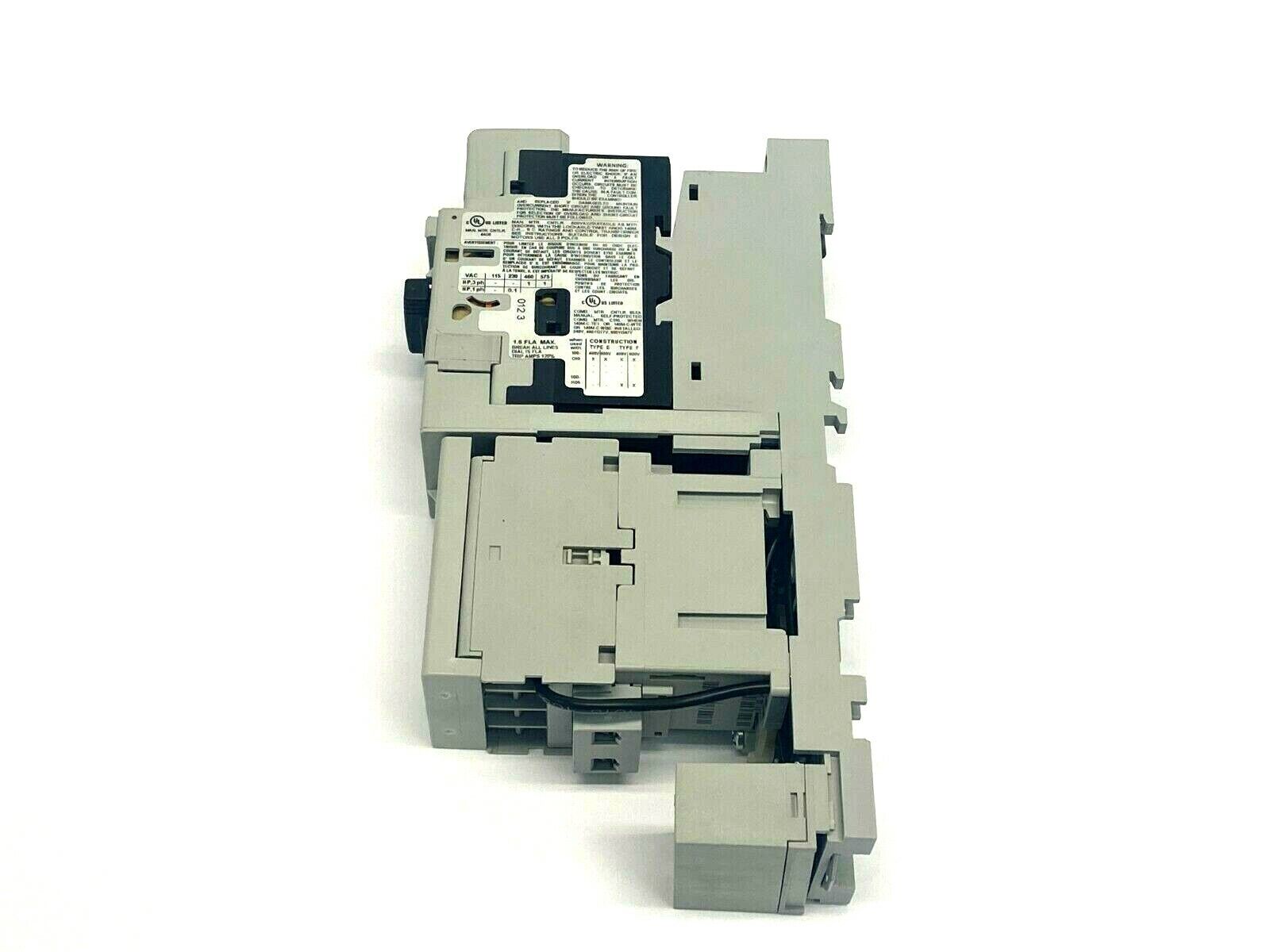

Allen Bradley 190S-ANEJ1-CA63C-TE Compact Combination Starter w/ Circuit Breaker
Condition: Used
Condition Description: Used unit as seen in them images. 30 day warranty included
MPN: 190S-ANEJ1-CA63C-TE
Custom Label: 7-XX7-54404-HX
Specifications
| Brand | Allen-Bradley |
|---|---|
| Catalog Number | 190S-ANEJ1-CA63C-TE |
| Product Type | Compact Combination Motor Starter with Circuit Breaker |
| Coil Voltage | 24V DC (Electronic) |
| Contactor Size | 100-C09 |
| Circuit Breaker Frame | 140M-C2E, High Break |
| Auxiliary Contacts | 1 NO + 1 NC |
| Overload Release Setting | 0.4 A |
| Connection Type | Screw Terminals |
| Enclosure Style | Open Type |
| Short-Circuit Rating (IEC) | 65 kA @ 500V AC (Type 1 & 2) |
| Short-Circuit Rating (UL508/CSA) | 65 kA @ 480Y/277V AC |
| Dimensions (W × H × D) | 45 × 215 × 181 mm |
| Max Motor Rating | 0.37 kW @ 690V AC 50Hz |
