Description
Condition: Used

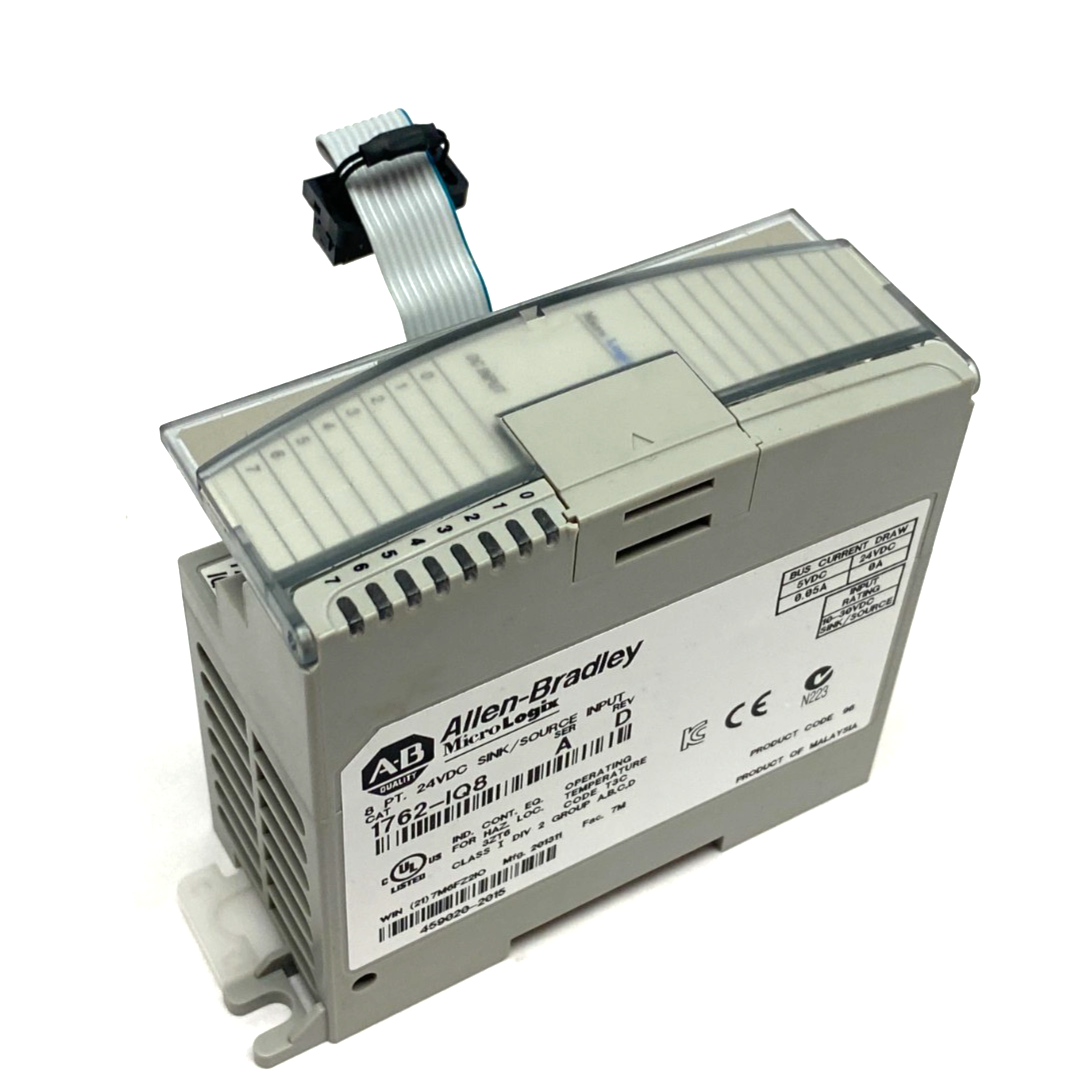

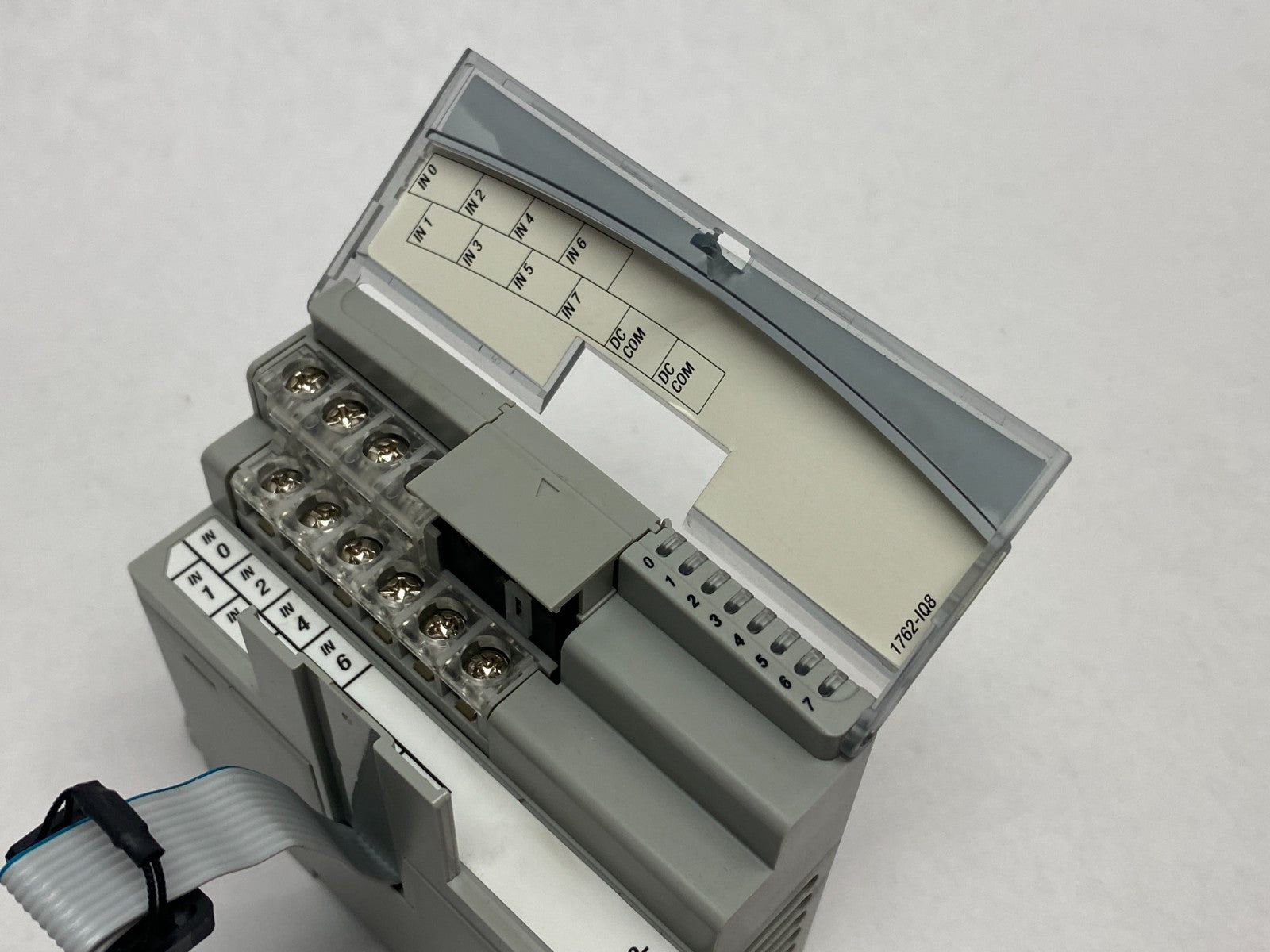

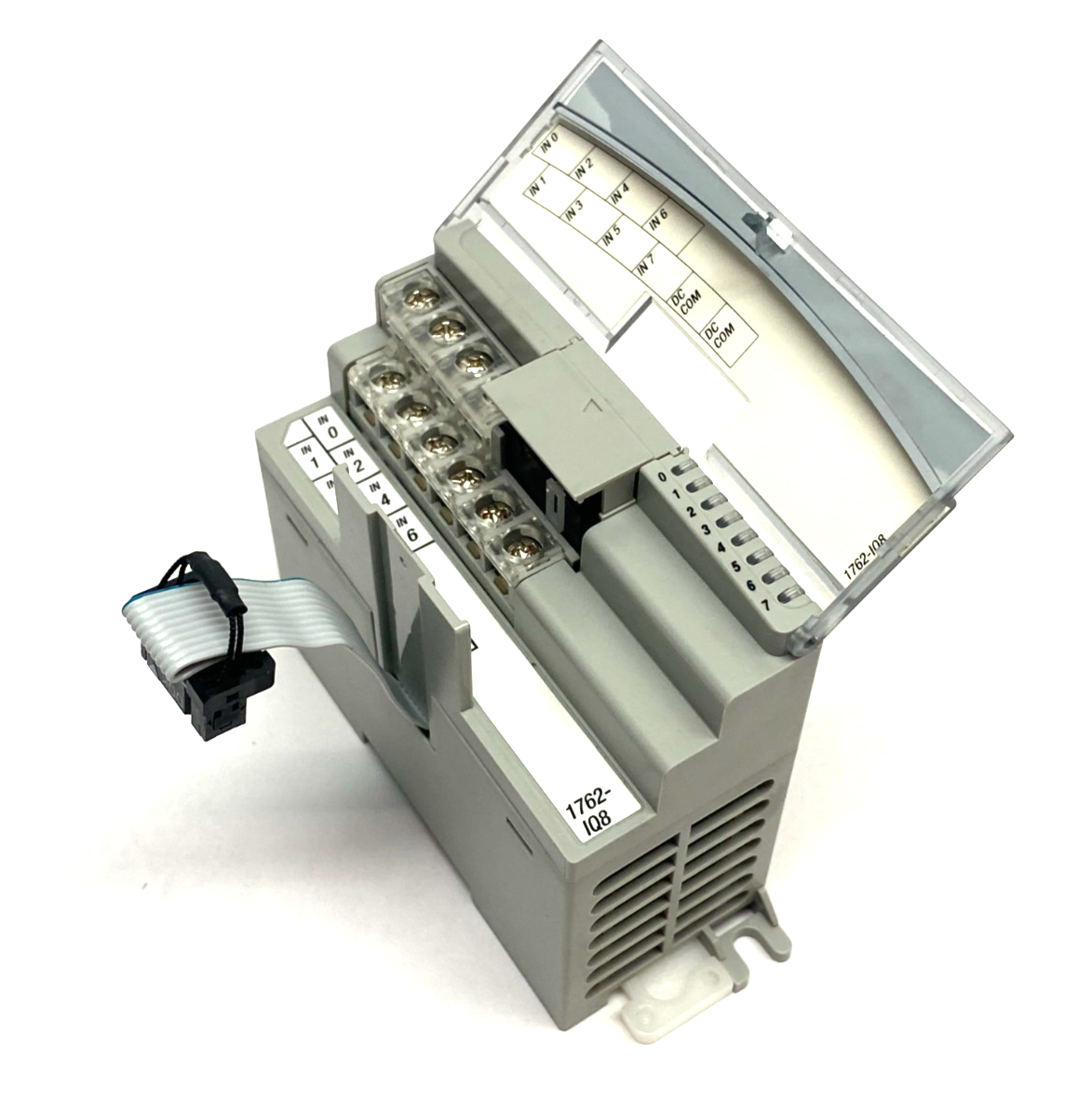

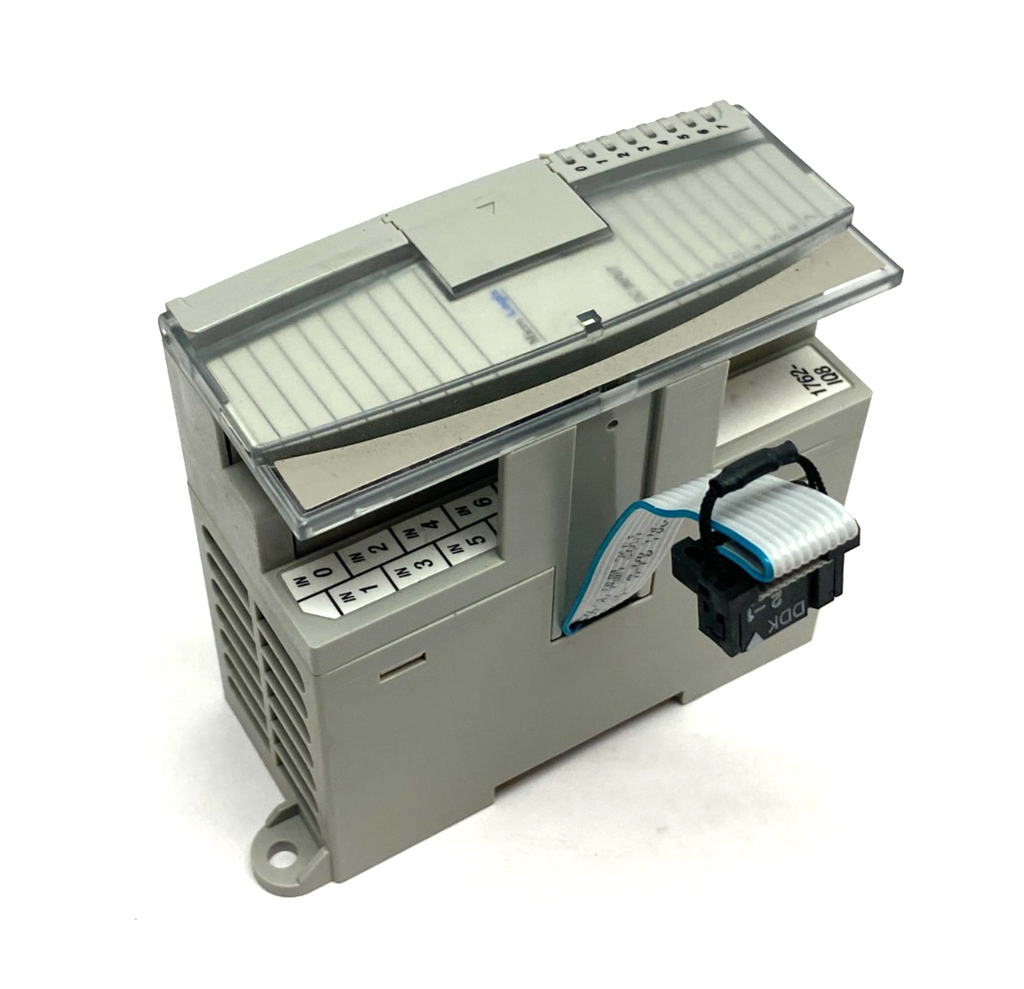

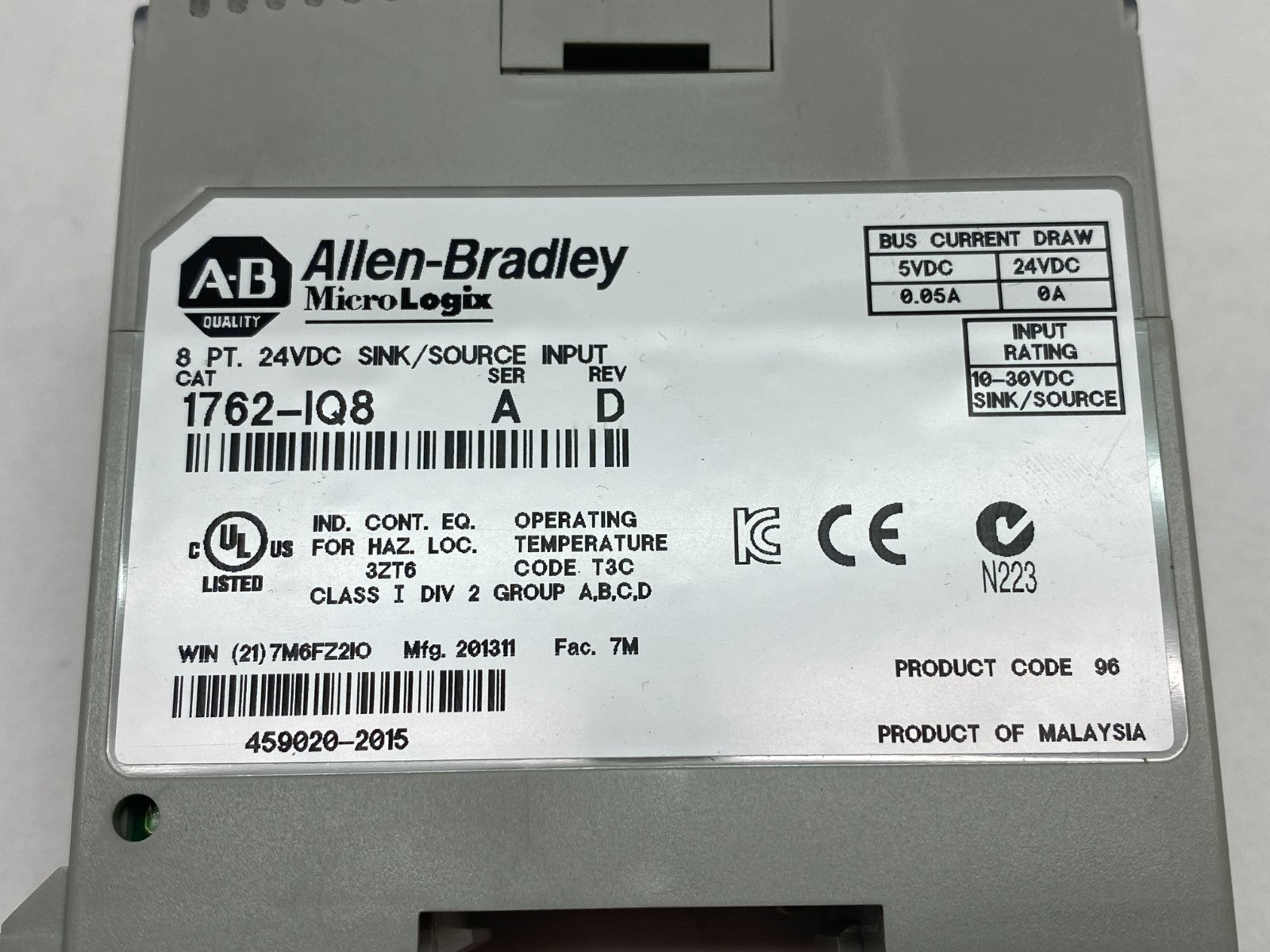

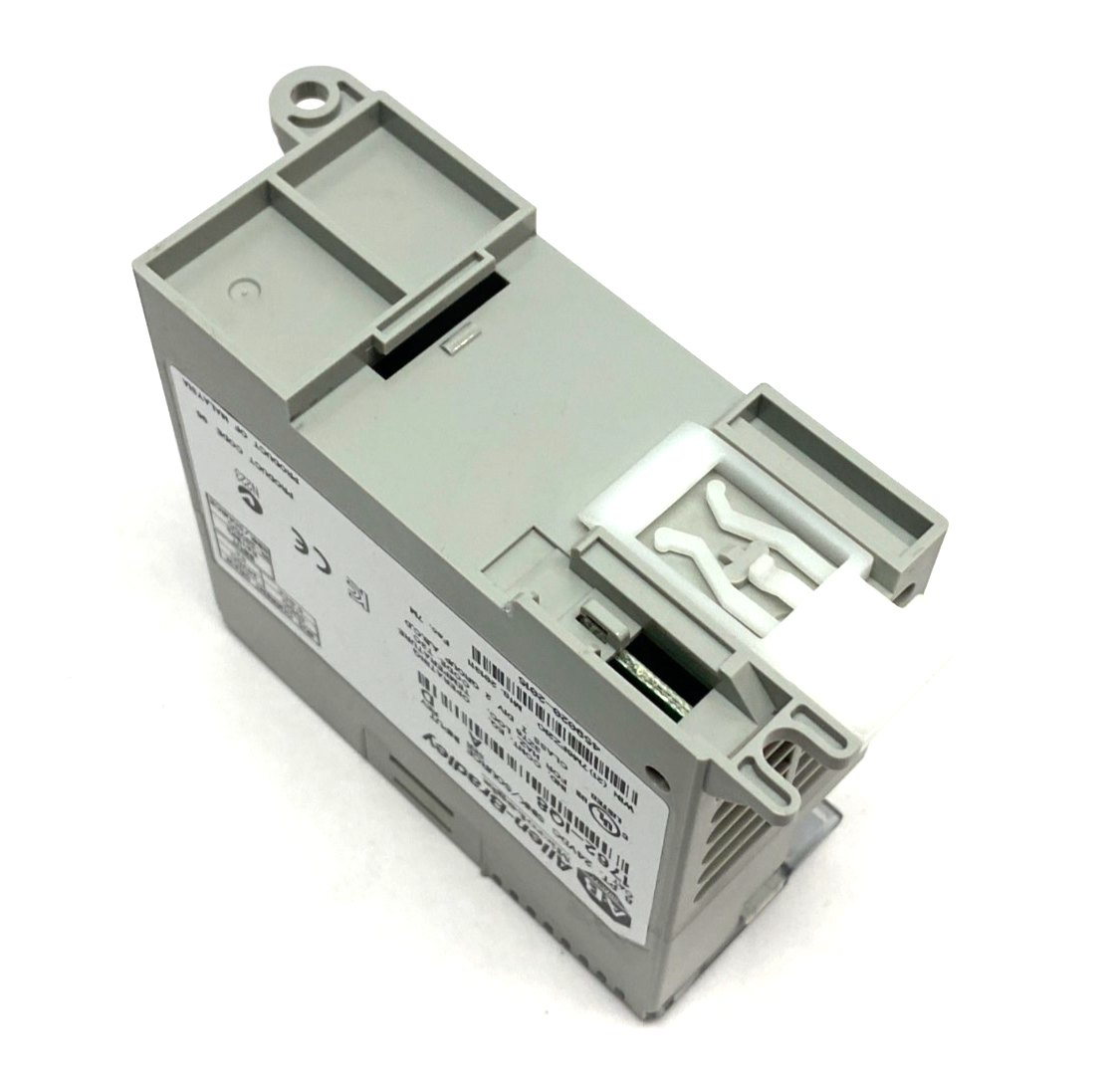

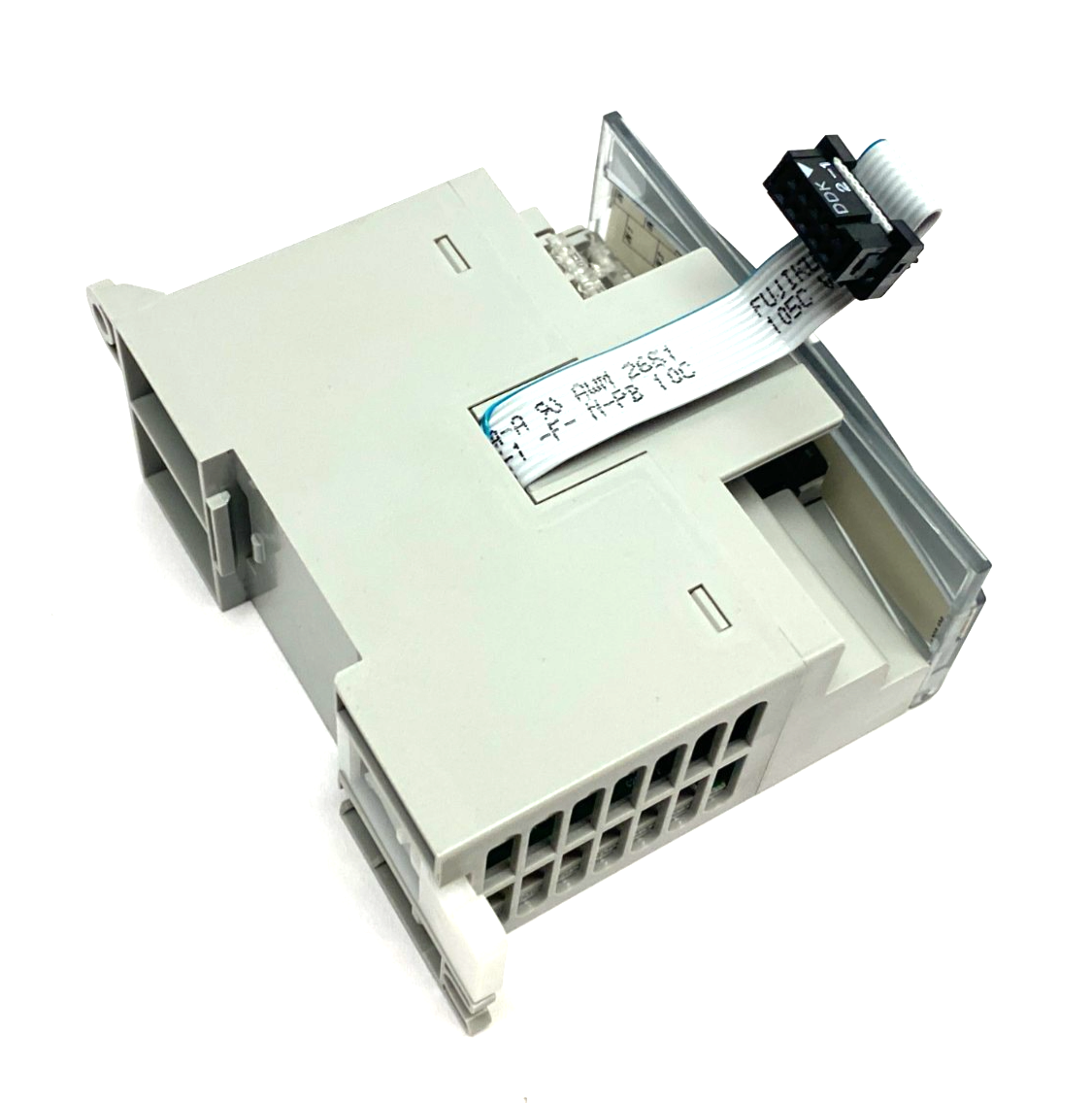

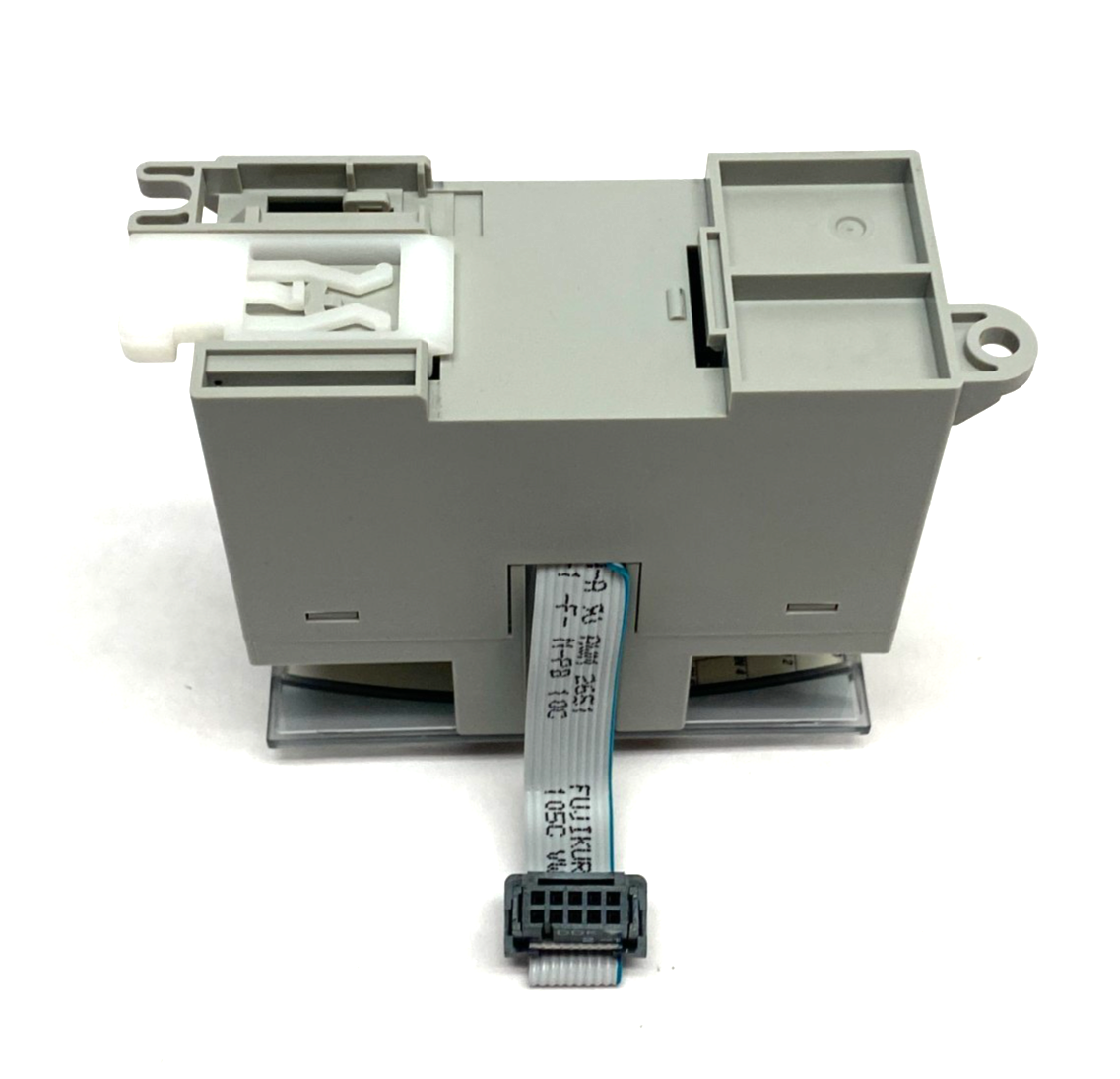

Condition Description: Used item as seen in the images. No additional items are included in the sale. 30-day warranty included.

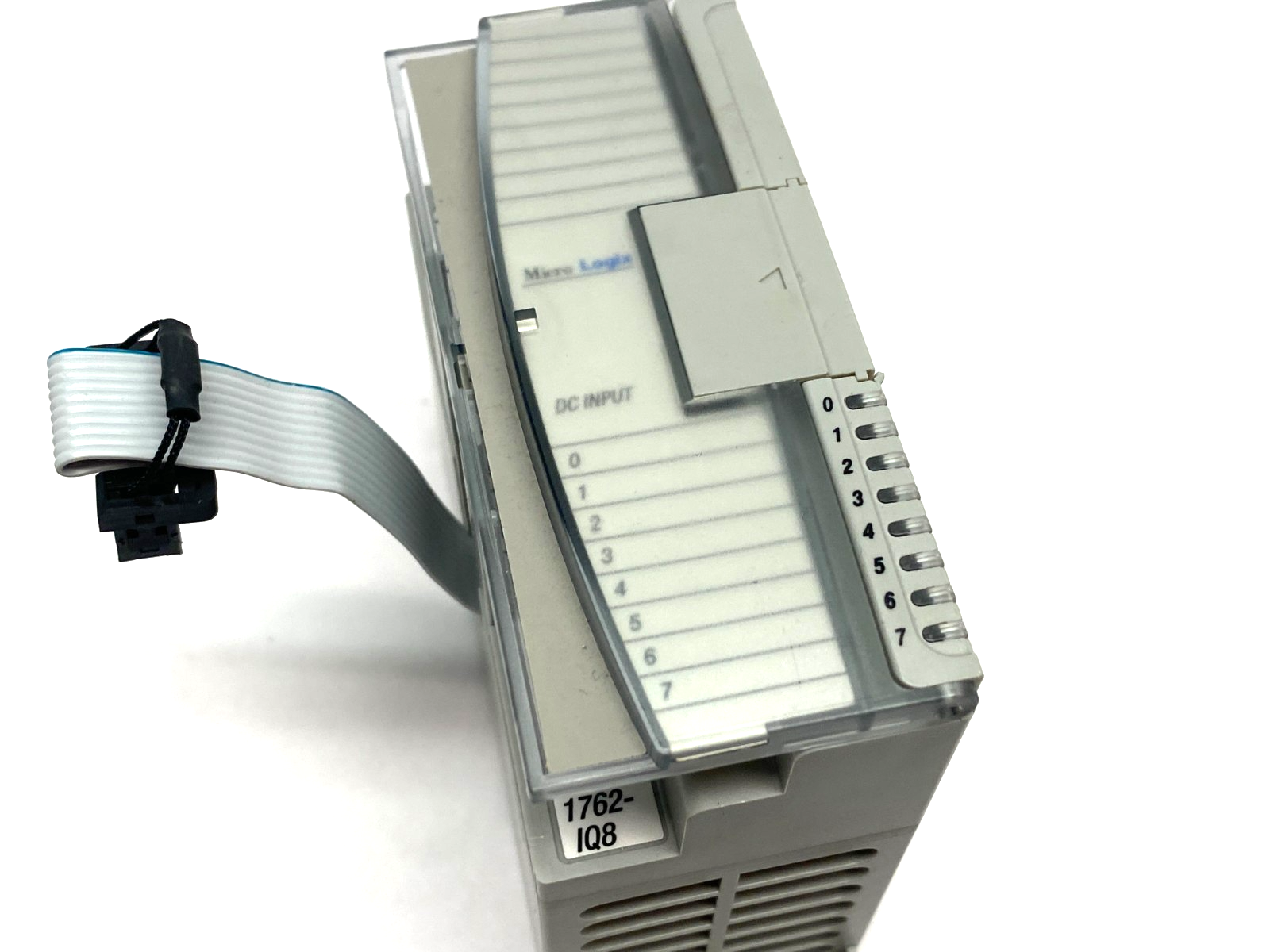

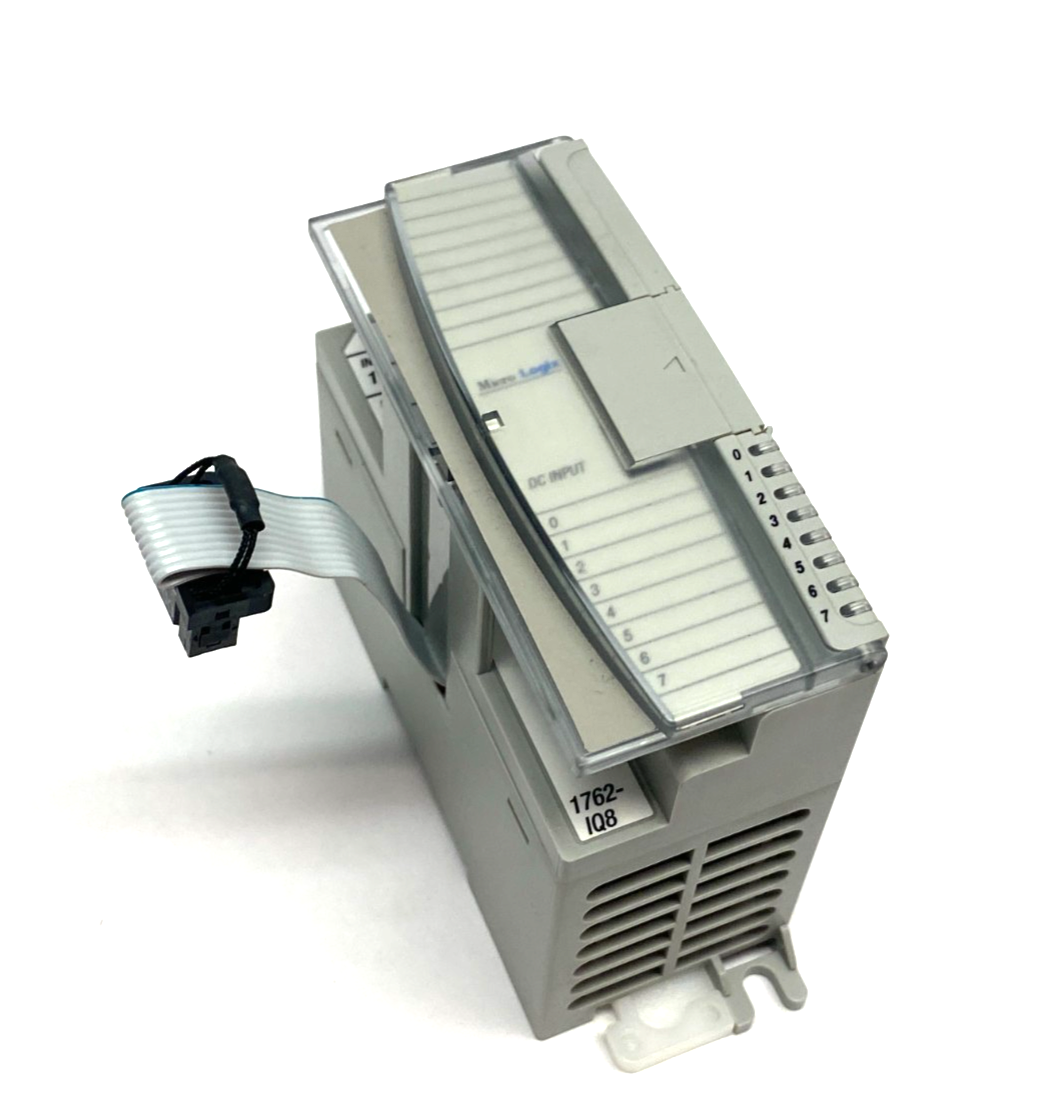

Model: Ser. A MicroLogix 8-Point Sink/Source Input Module Rev. D
MPN: 1762-IQ8
Custom Label: 1-B3I-109361-JL-XX
Specifications
| Brand | Allen-Bradley |
|---|---|
| Catalog Number | 1762-IQ8 |
| Series | A |
| Product Type | MicroLogix 8 Point Digital Input Module |
| I/O Count | 8 Digital Inputs |
| Operating Voltage | 10–30V DC @ 30°C; 10–26.4V DC @ 55°C |
| Input Type | 24V DC Sink/Source |
| On-State Current | 2.0–12.0 mA (@ 10–30V DC) |
| Off-State Current | ≤ 1.5 mA (@ 5V DC max) |
| Signal Delay | 8 ms |

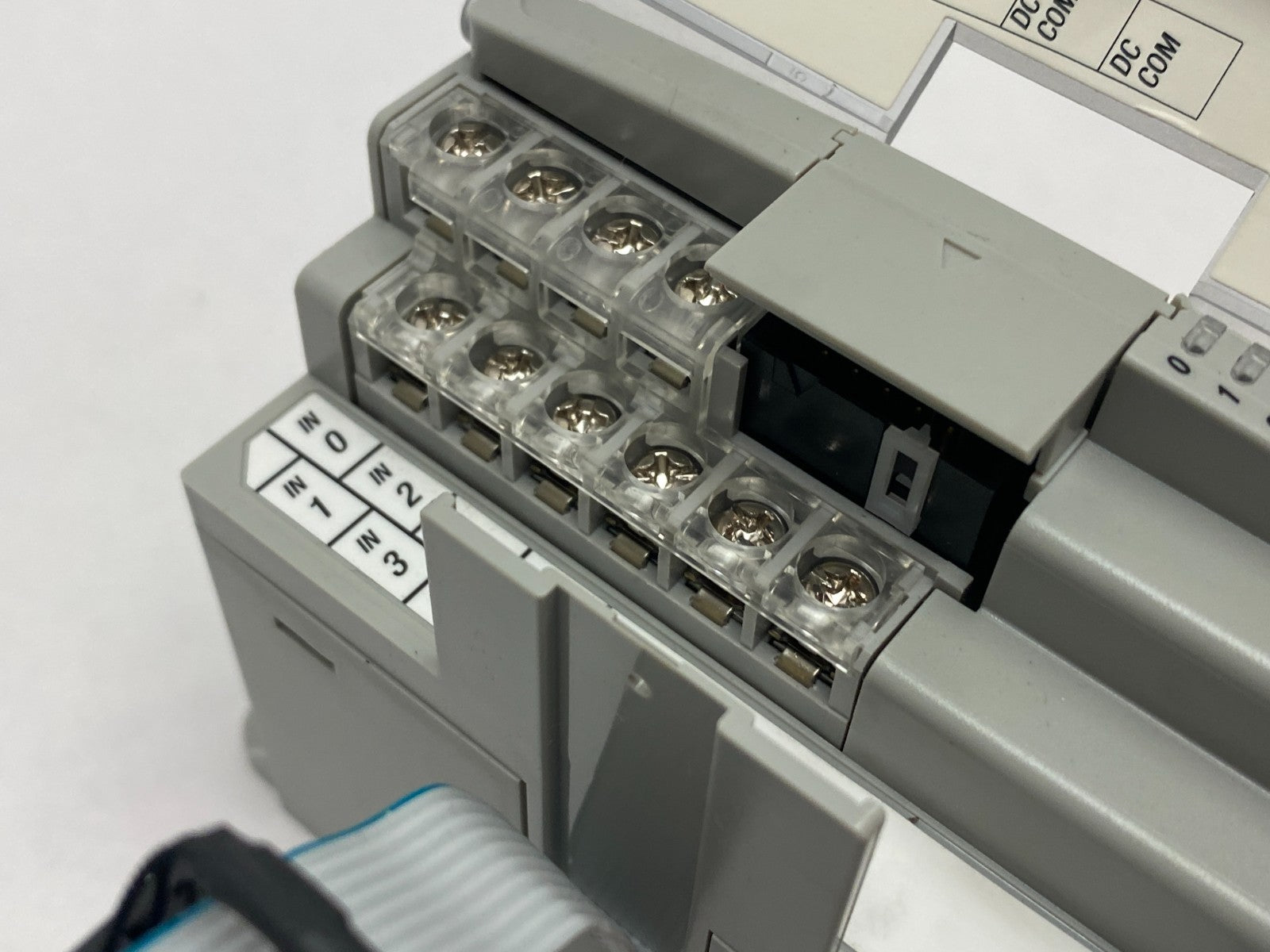

| Connection Type | Screw Terminals |
| I/O Isolation | Isolated (1200V AC @ 1s / 1697V DC @ 1s) |
| Status Indication | LED per Input |
| Dimensions (H×W×D) | 90 × 40.4 × 87 mm |
| Bus Current Draw | 50 mA @ 5V DC max (0.25 W) |
| Form Factor | DIN Rail Mount |
