1762-IQ16 | Allen Bradley Ser B MicroLogix 16-Point D/I Module MISSING SMALL COVER- Used

Allen-BradleySKU: 10-36A1-118245-JL-OC

Price:
Sale price$34.39
Stock:
Only 3 units left

Description

Condition: Used

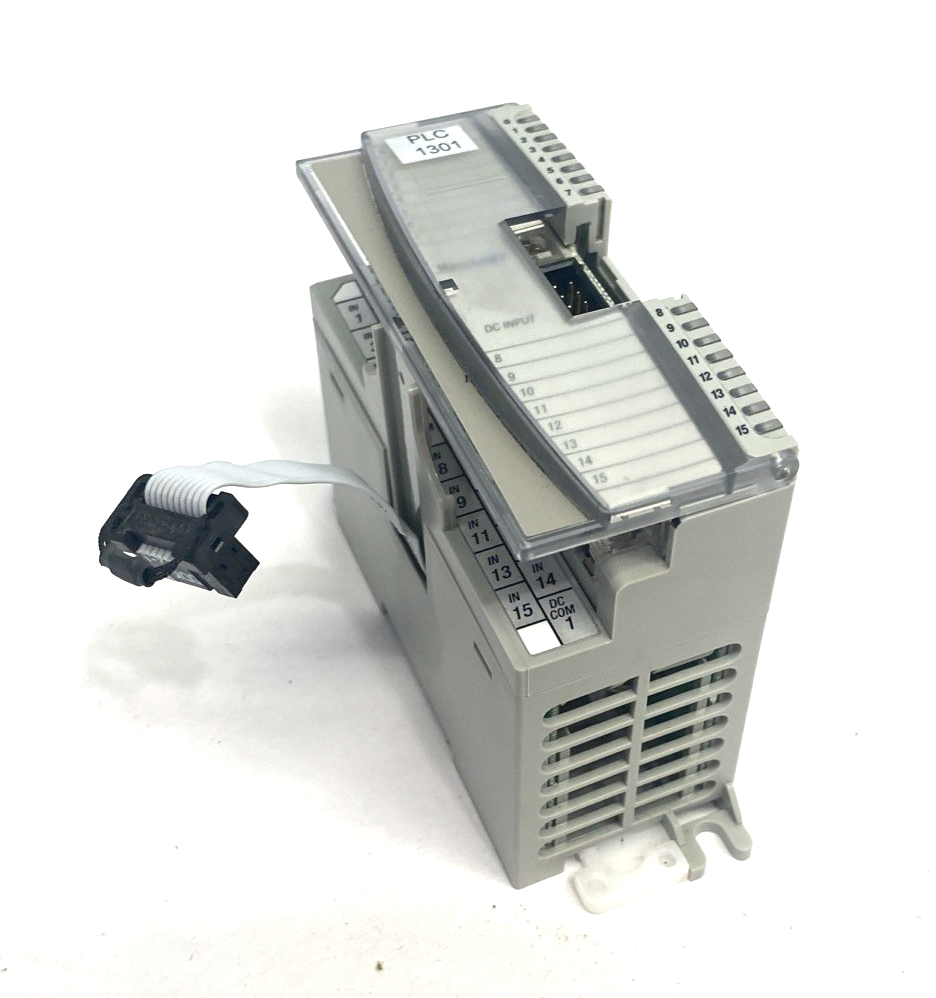

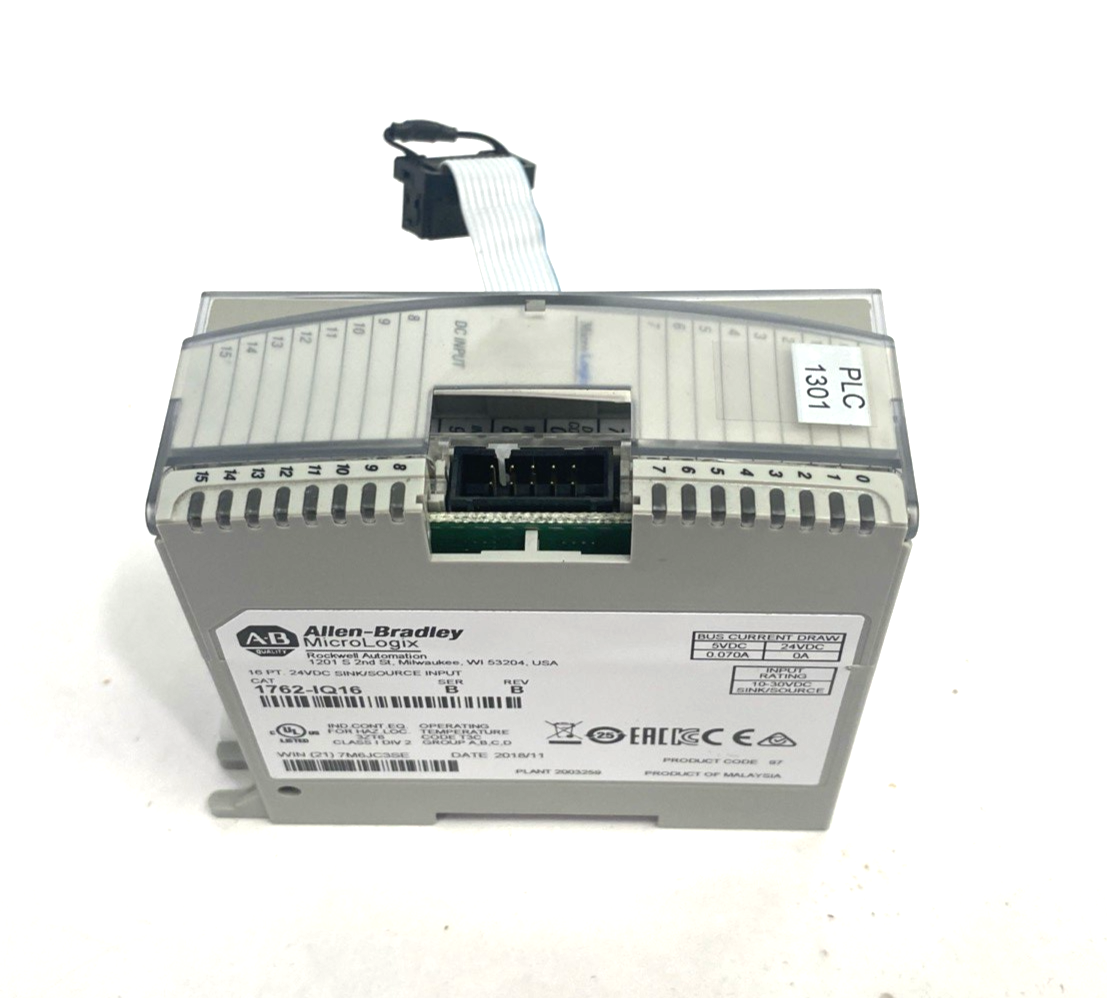

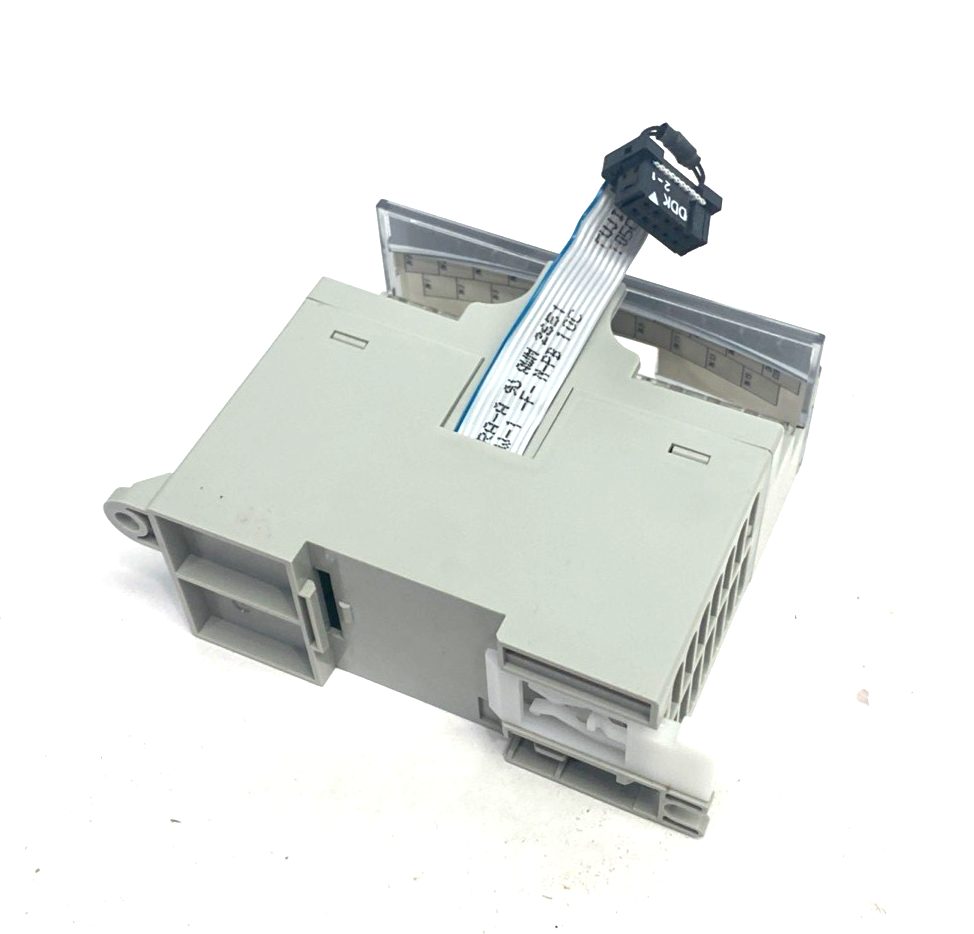

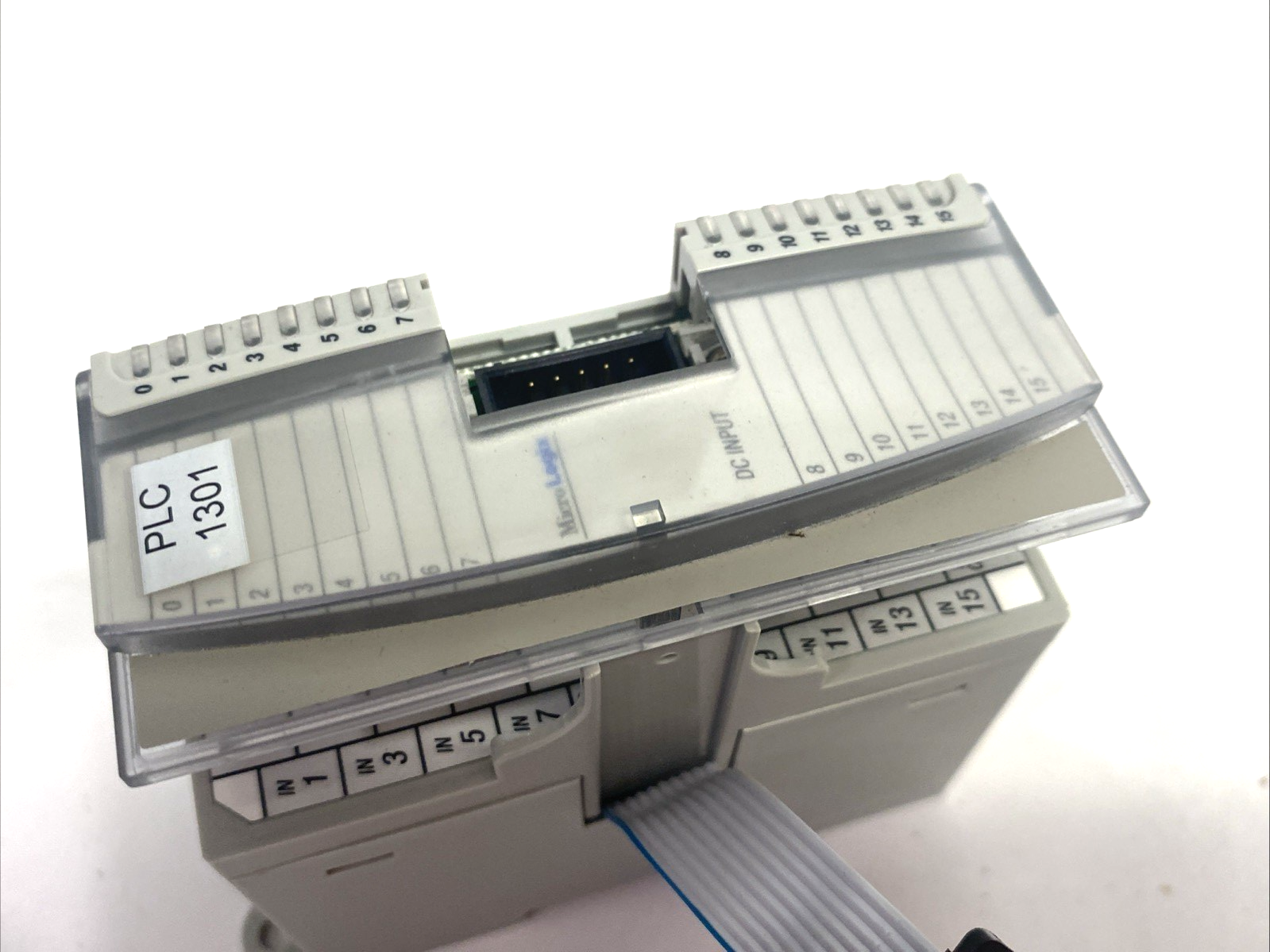

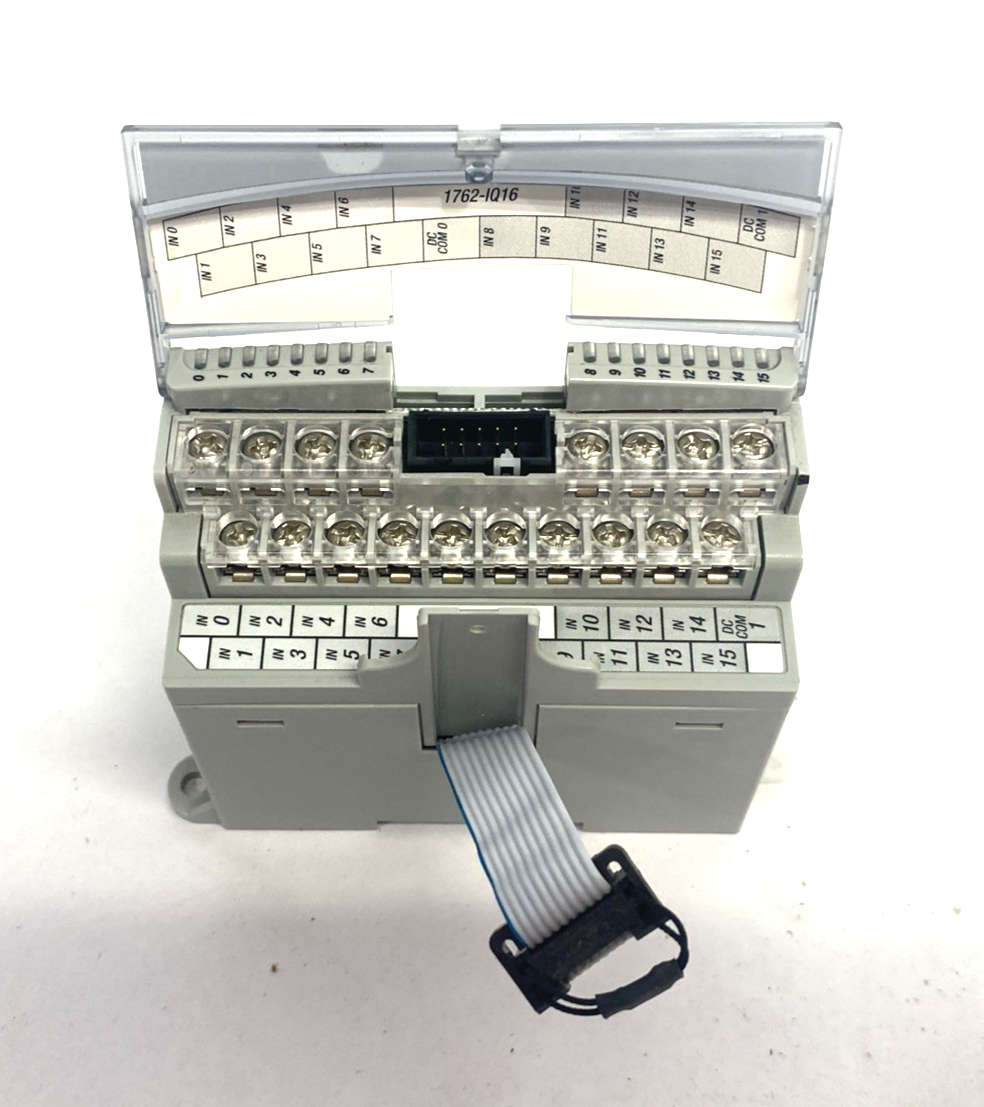

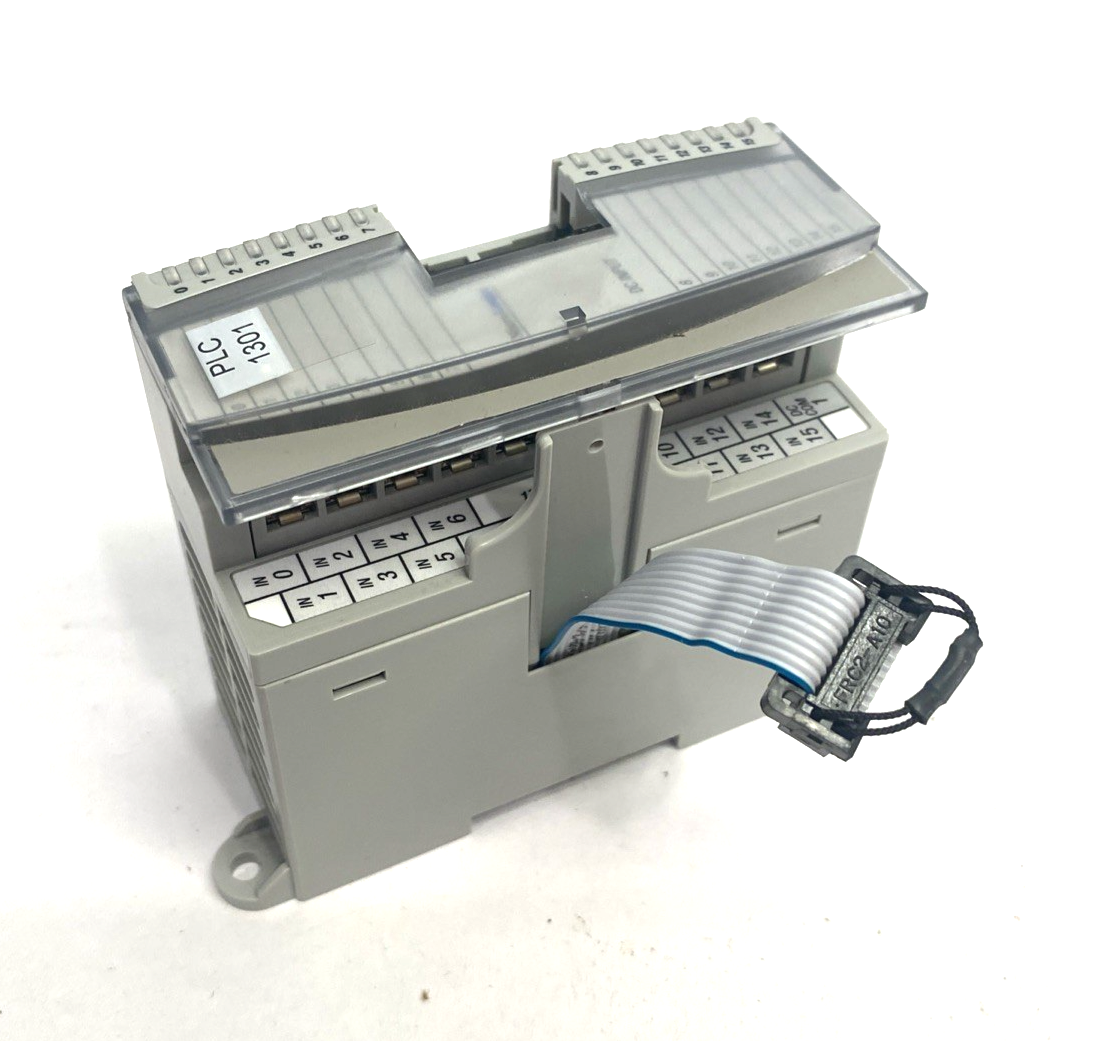

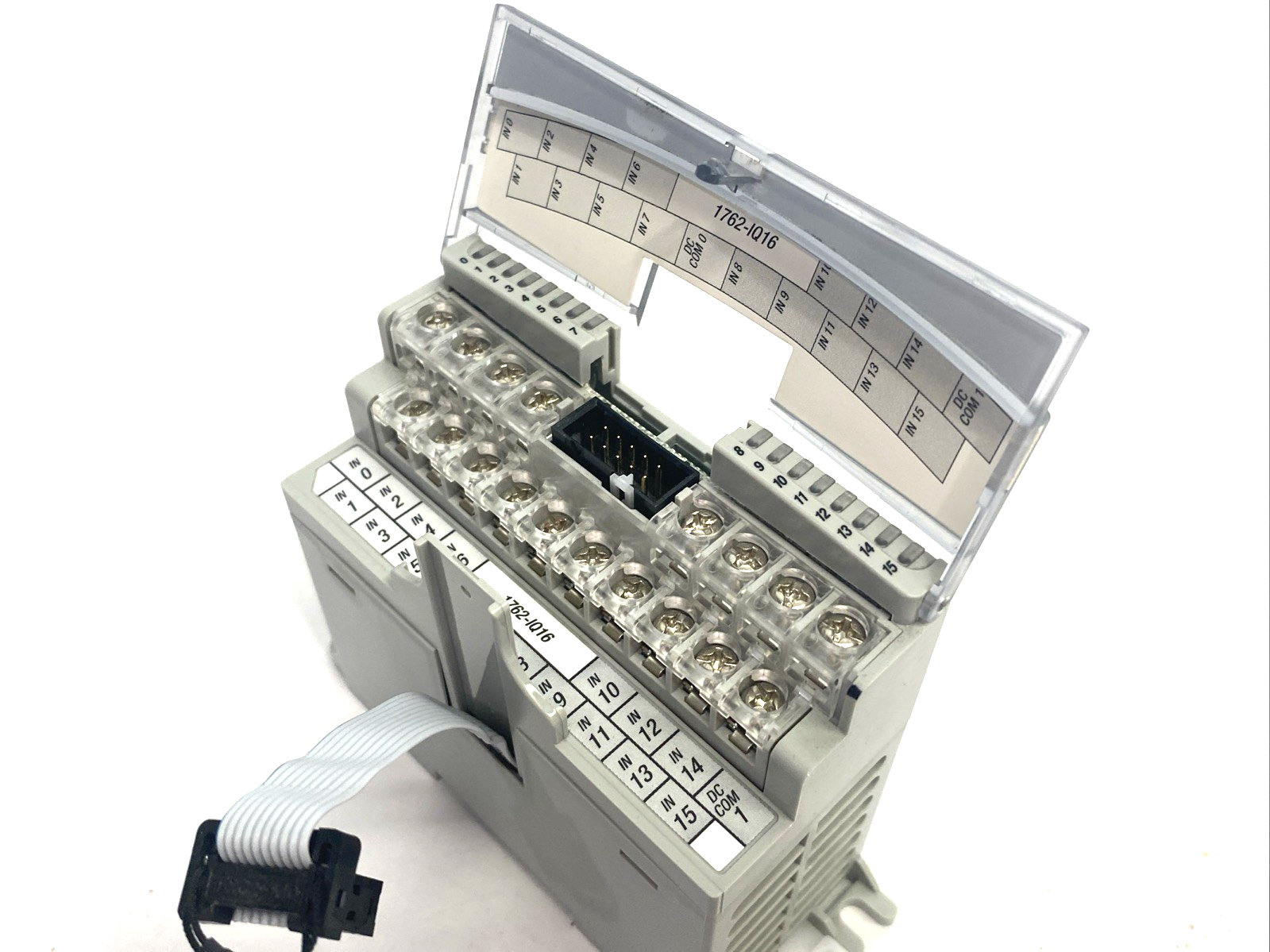

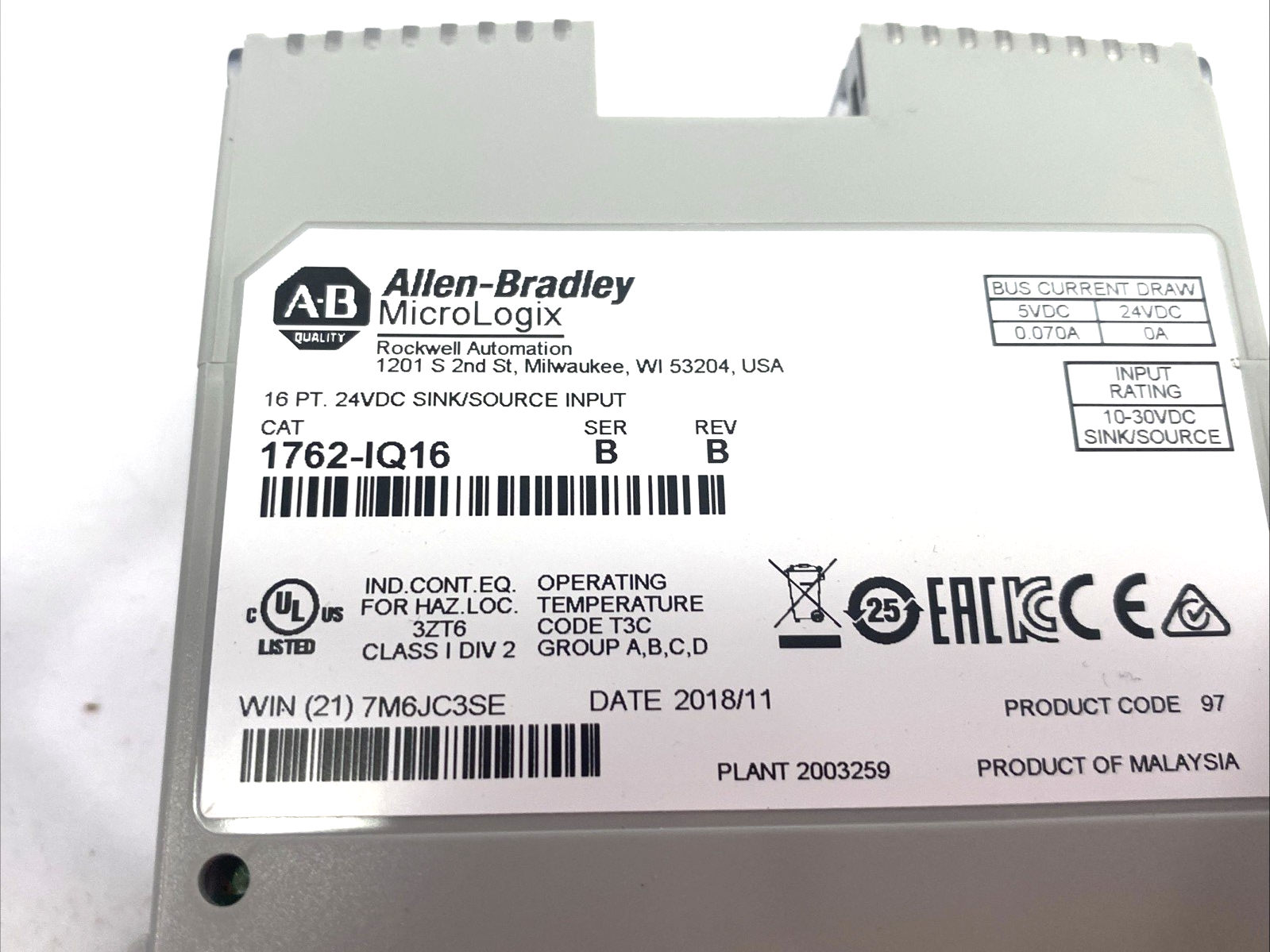

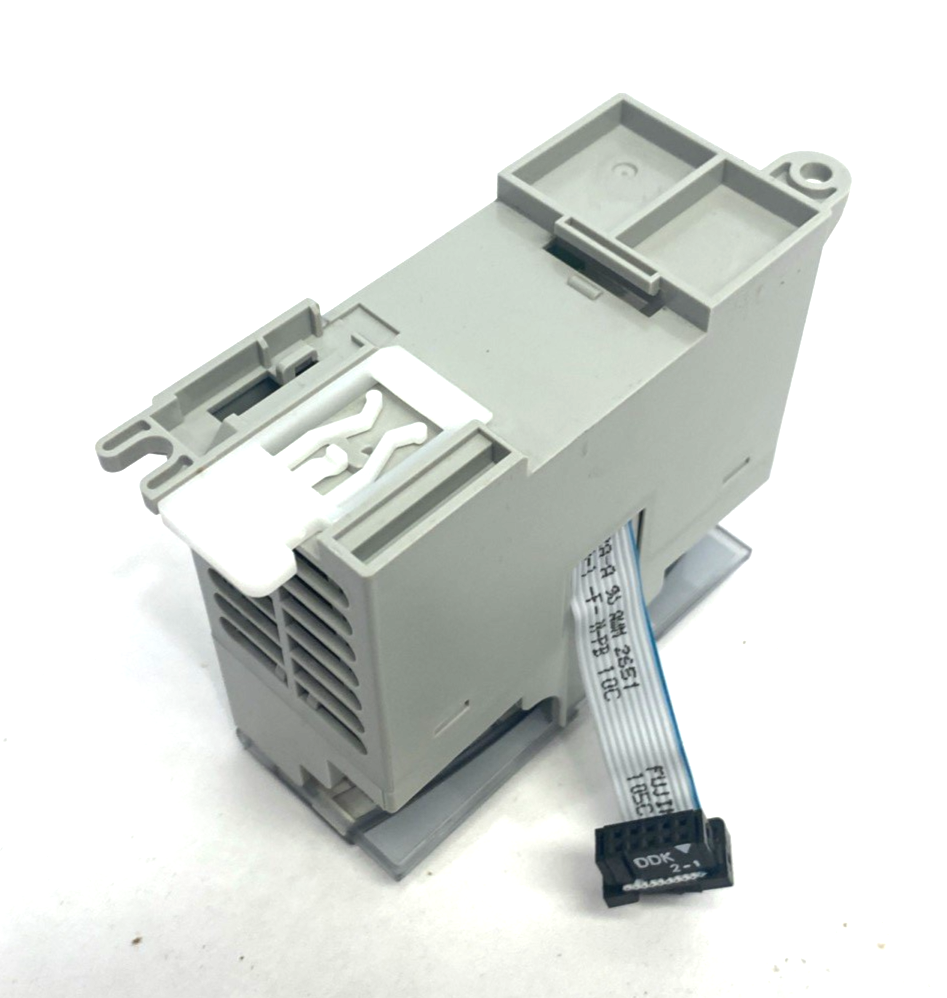

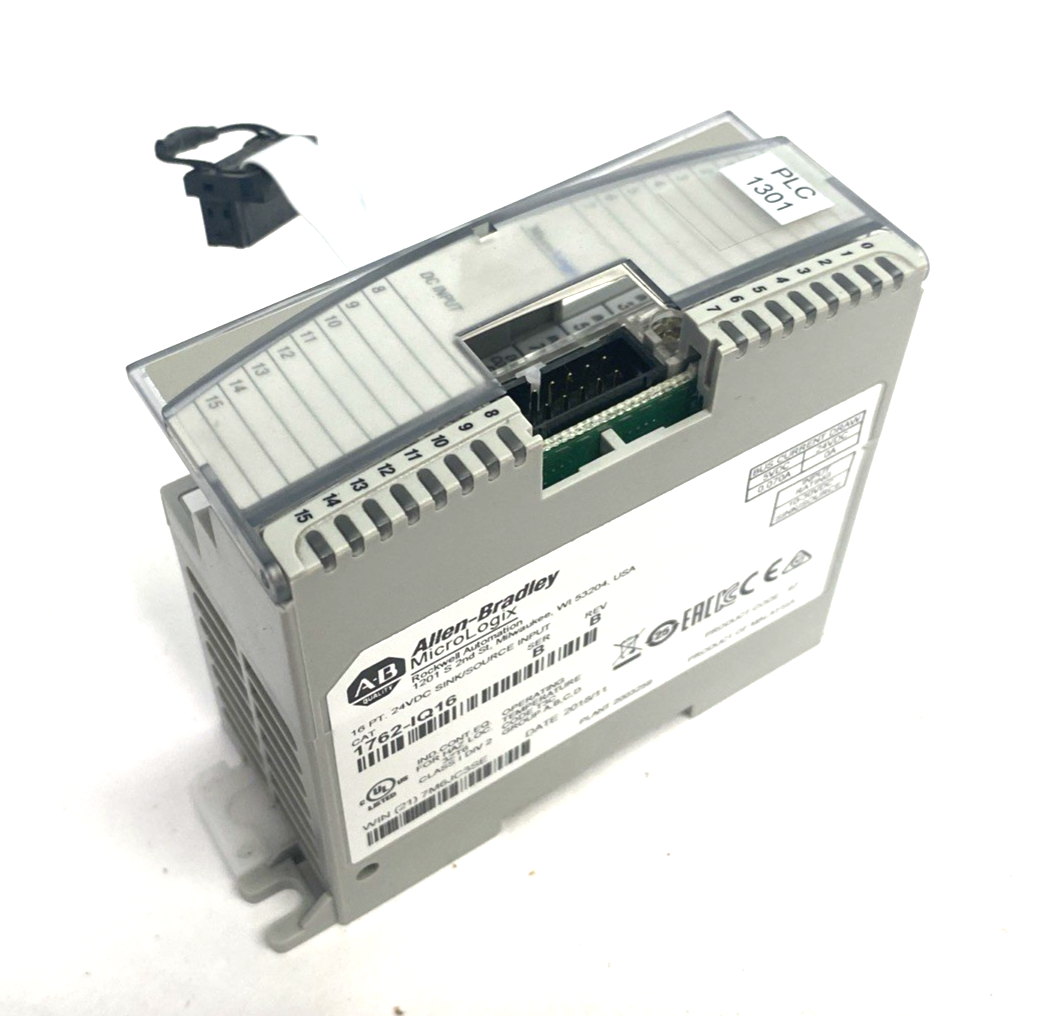

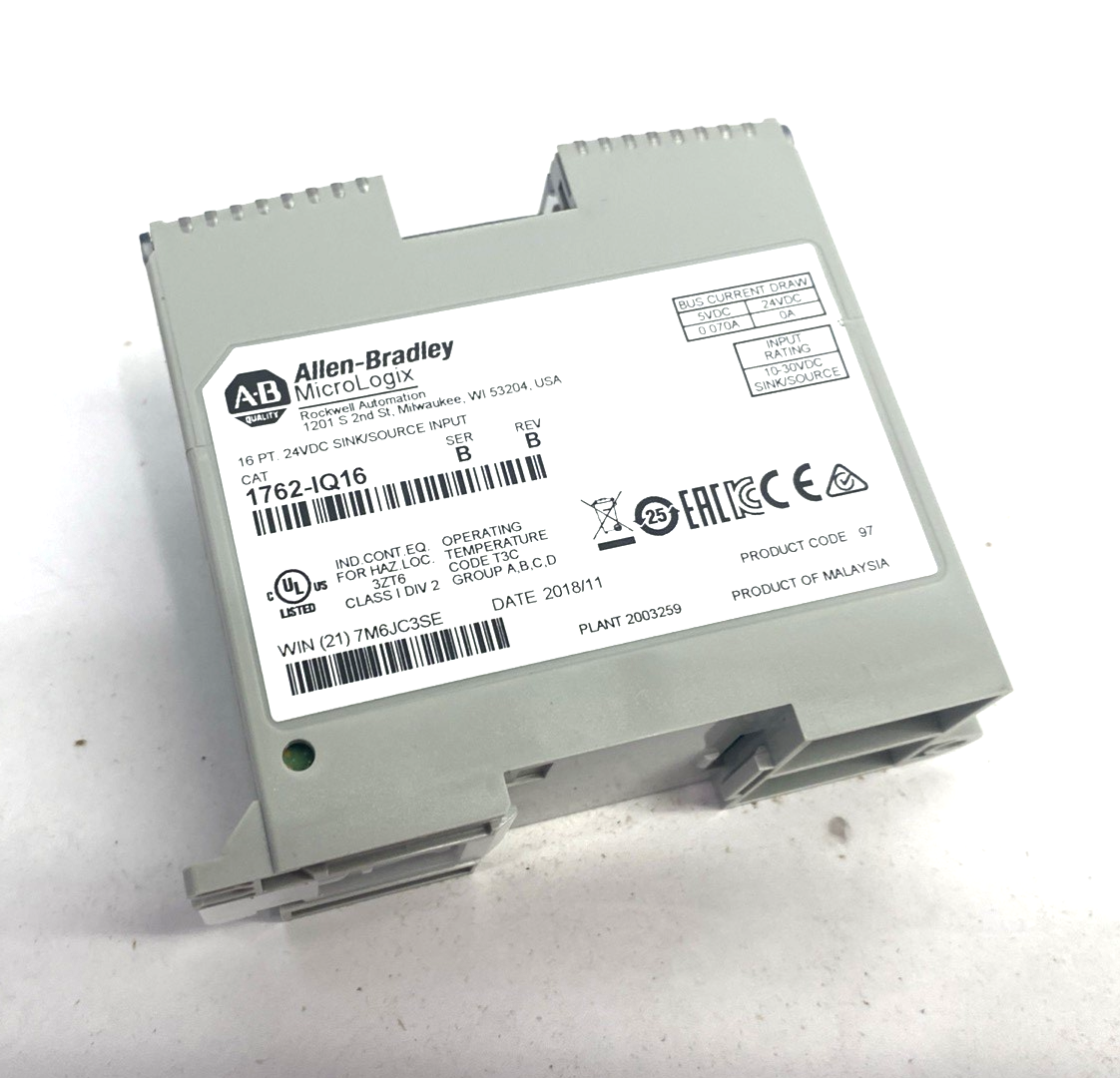

Condition Description: Used item as seen in the images. No additional items are included in the sale. 30-day warranty included.

Model: Ser B MicroLogix 16-Point D/I Module MISSING SMALL COVER

MPN: 1762-IQ16

Custom Label: 10-36A1-118245-JL-OC

Specifications

BrandAllen-Bradley
Catalog Number1762-IQ16
SeriesB
Product TypeDigital Input Module
TypeMicroLogix 16 Point Digital Input Module
I/O Count16 Digital Inputs
Input Voltage10–30V DC (24V DC nominal)
Input CurrentOn-state: 8.0 mA @ 24V DC (nom); 2.0–12.0 mA @ 10–30V DC range
Input Type24V DC Sink/Source
IsolationIsolated (2 groups: inputs 0–7, 8–15)
Connection TypeScrew Terminals
Signal Delay8 ms
Form FactorMicroLogix I/O Module (40.4 × 90 × 87 mm)
Status IndicationLED
Operating Voltage Range10–26.4V DC (module function); 10–30V DC (input range)
Dimensions (W × H × D)40.4 × 90 × 87 mm
