Description
Condition: Used
Condition Description: Used item as seen in the images. No additional items are included in the sale. 30-day warranty included.

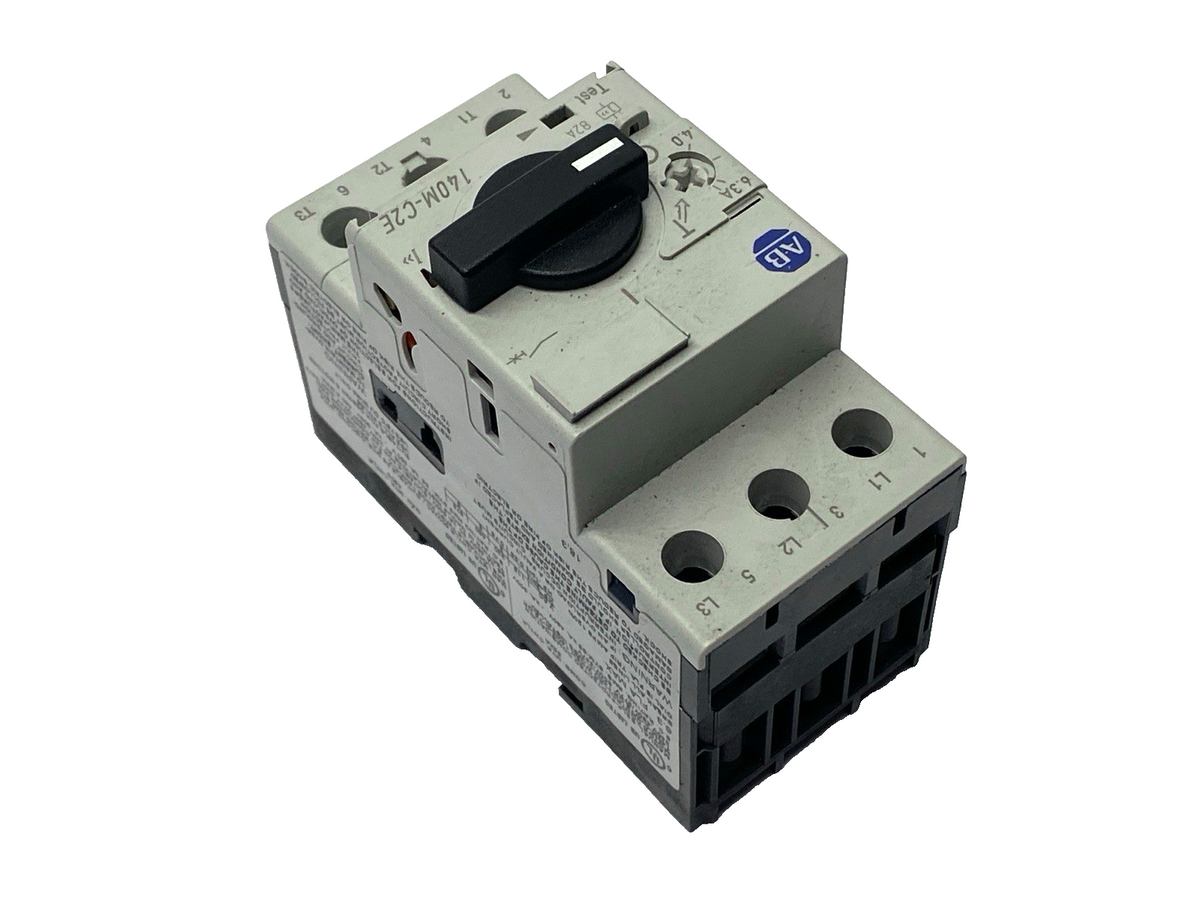

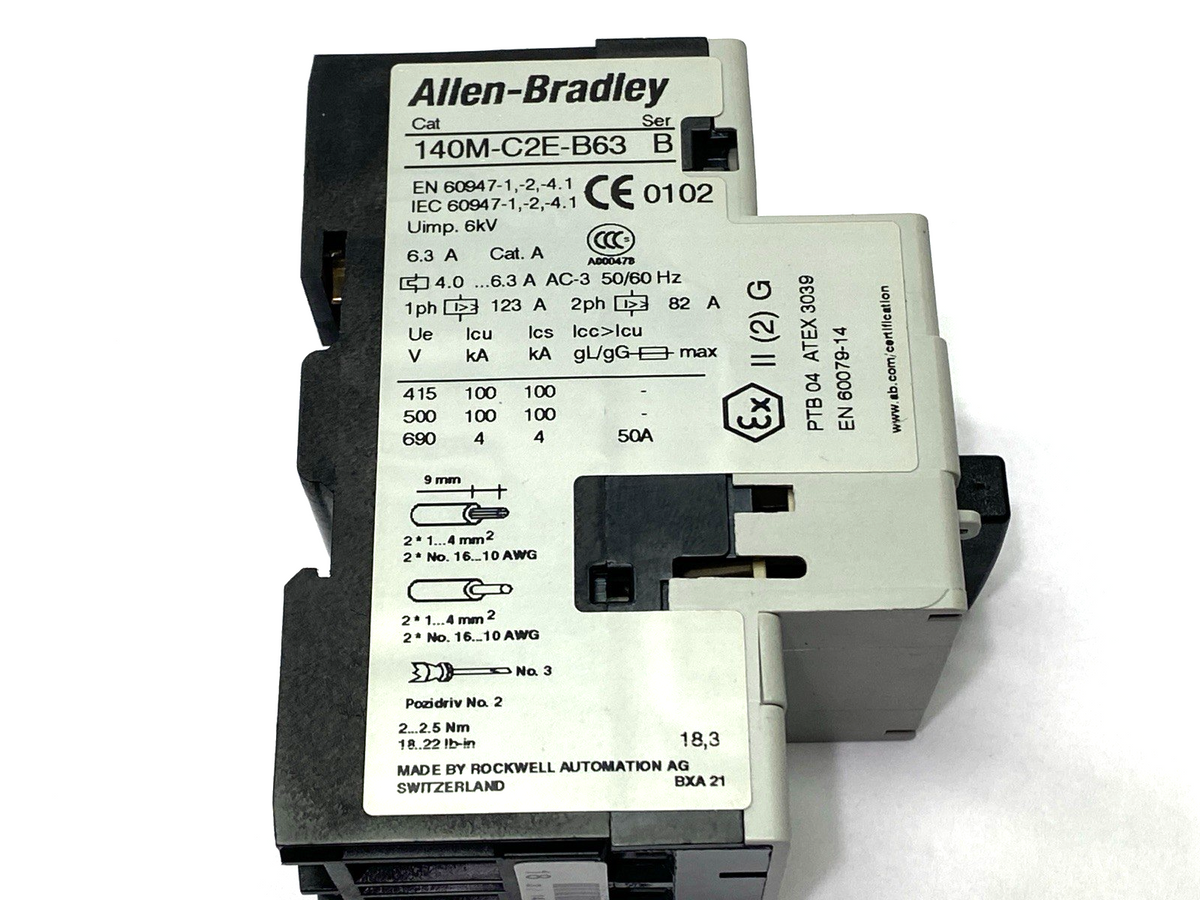

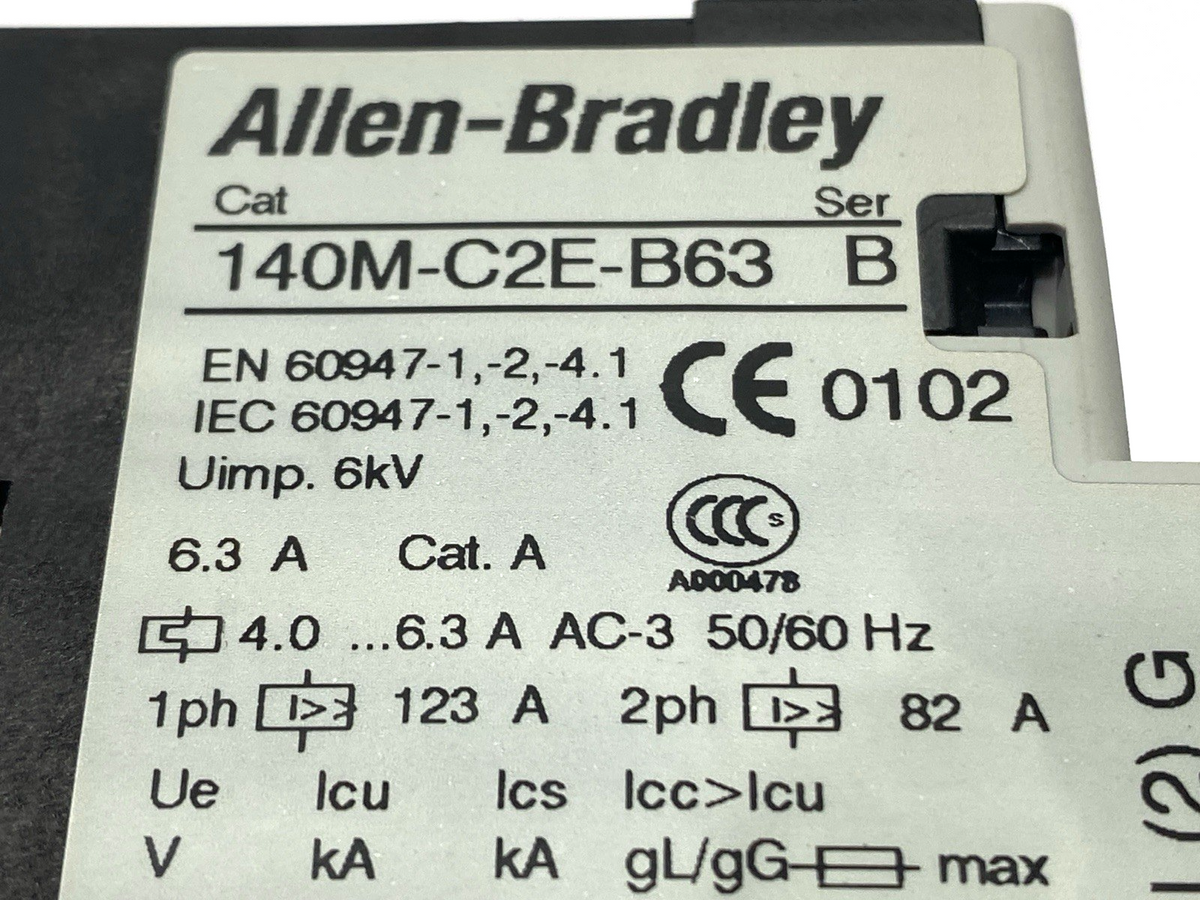

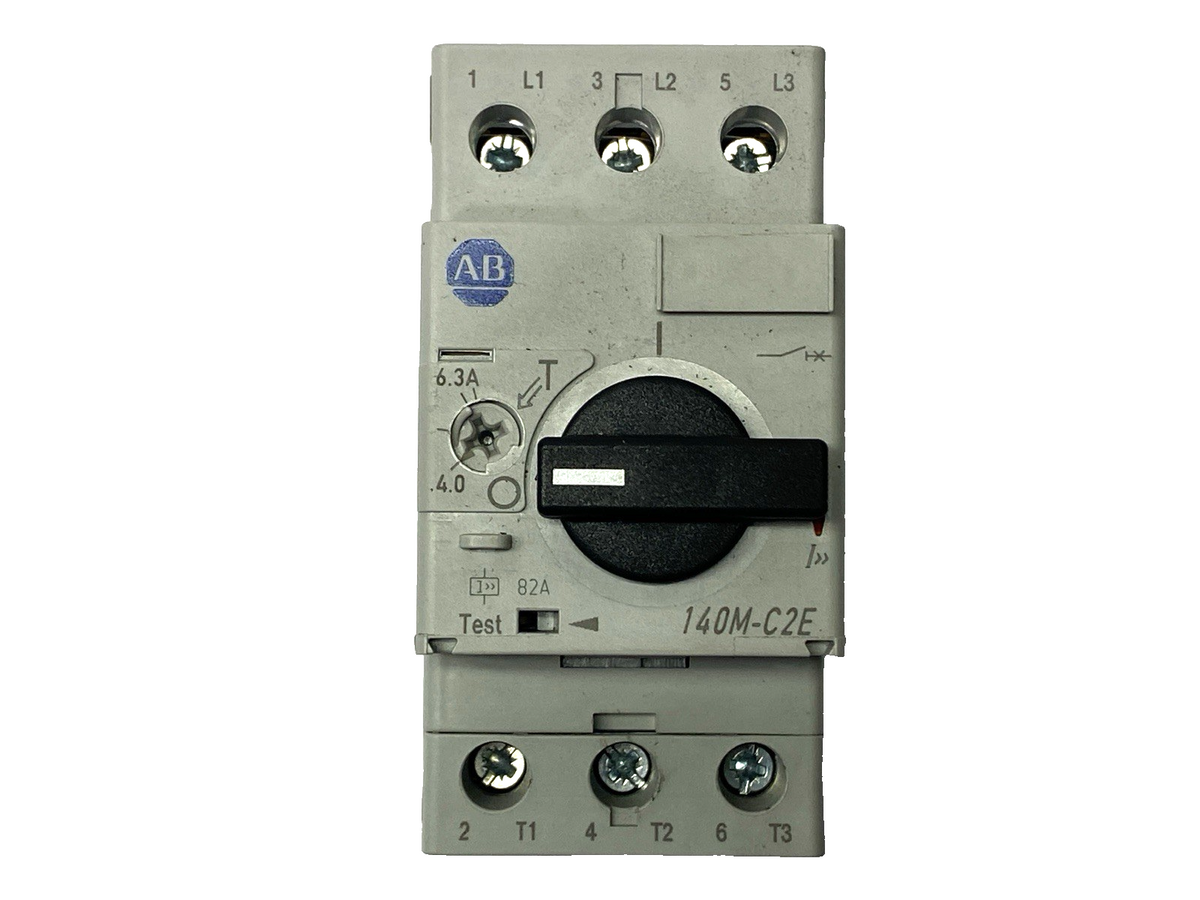

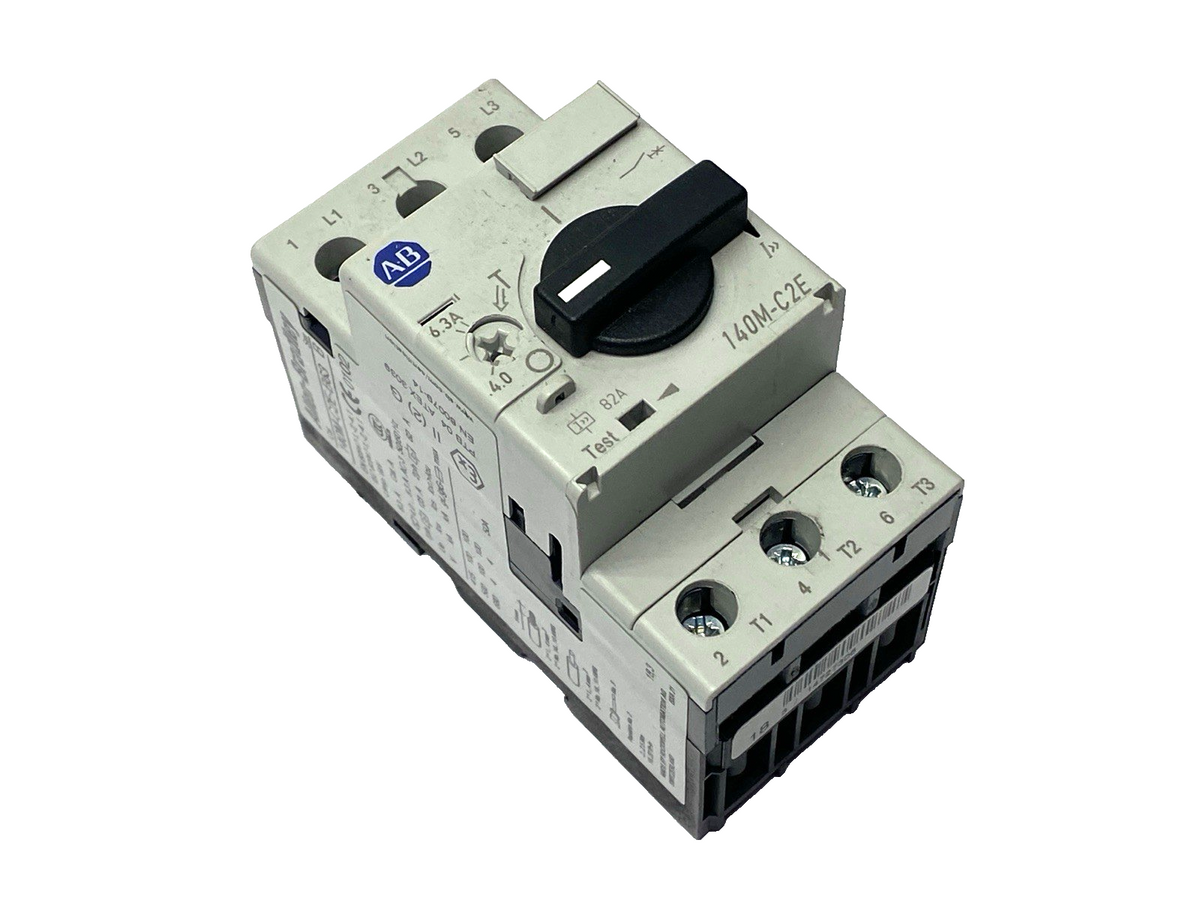

Model: Ser. B Motor Protection Circuit Breaker 4.0-6.3A
MPN: 140M-C2E-B63
Custom Label: 10-44C3-123767-SS-TW
Specifications
| Brand | Allen-Bradley |
|---|---|
| Catalog Number | 140M-C2E-B63 |
| Series | B |
| Product Type | Motor Protection Circuit-Breaker |
| Type | Thermomagnetic Motor Protection Circuit-Breaker |
| Current Rating | 4 - 6.3 A |
| Rated Voltage | 690V AC (max) |
| Frequency | 50/60 Hz |
| Poles | 3 |
| Phase | 3-Phase |
| Horsepower Rating | 5 Hp @ 575V, 3-Phase (max) |
| Short Circuit Breaking Capacity (Icu) | 4 kA @ 690V per IEC |
| IP Rating | IP2X |
| Connection Type | Screw Terminals |
| Trip Class | 10 |
| Dimensions (H × W × D) | 90 × 45 × 74.5 mm |
