Description

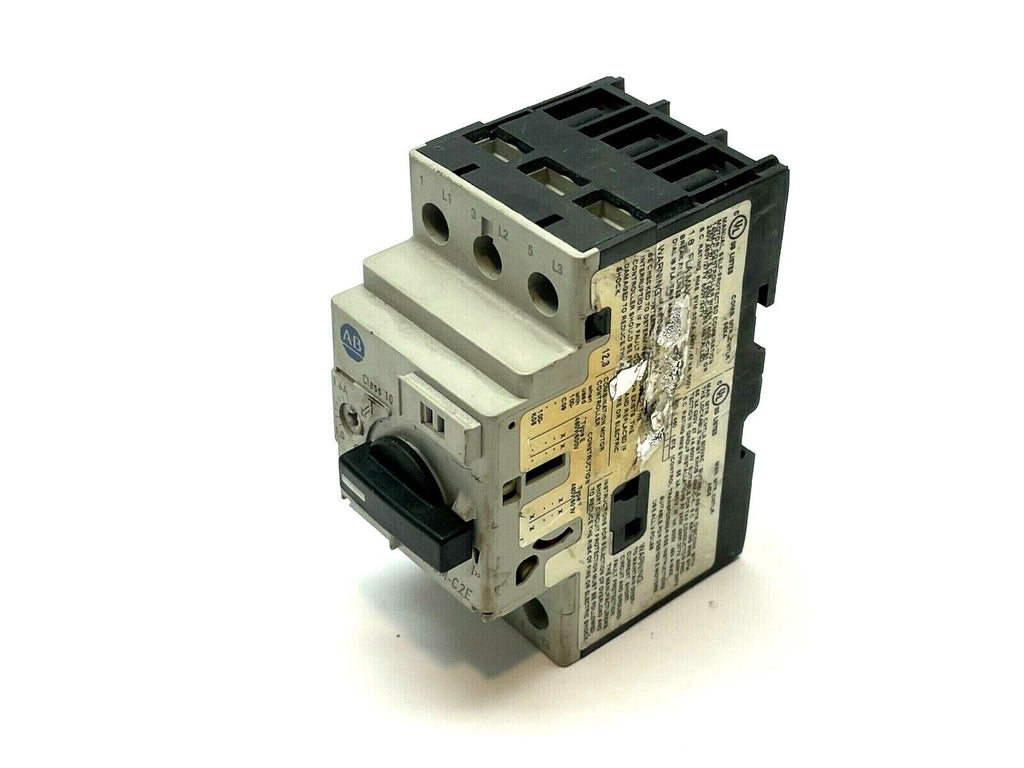

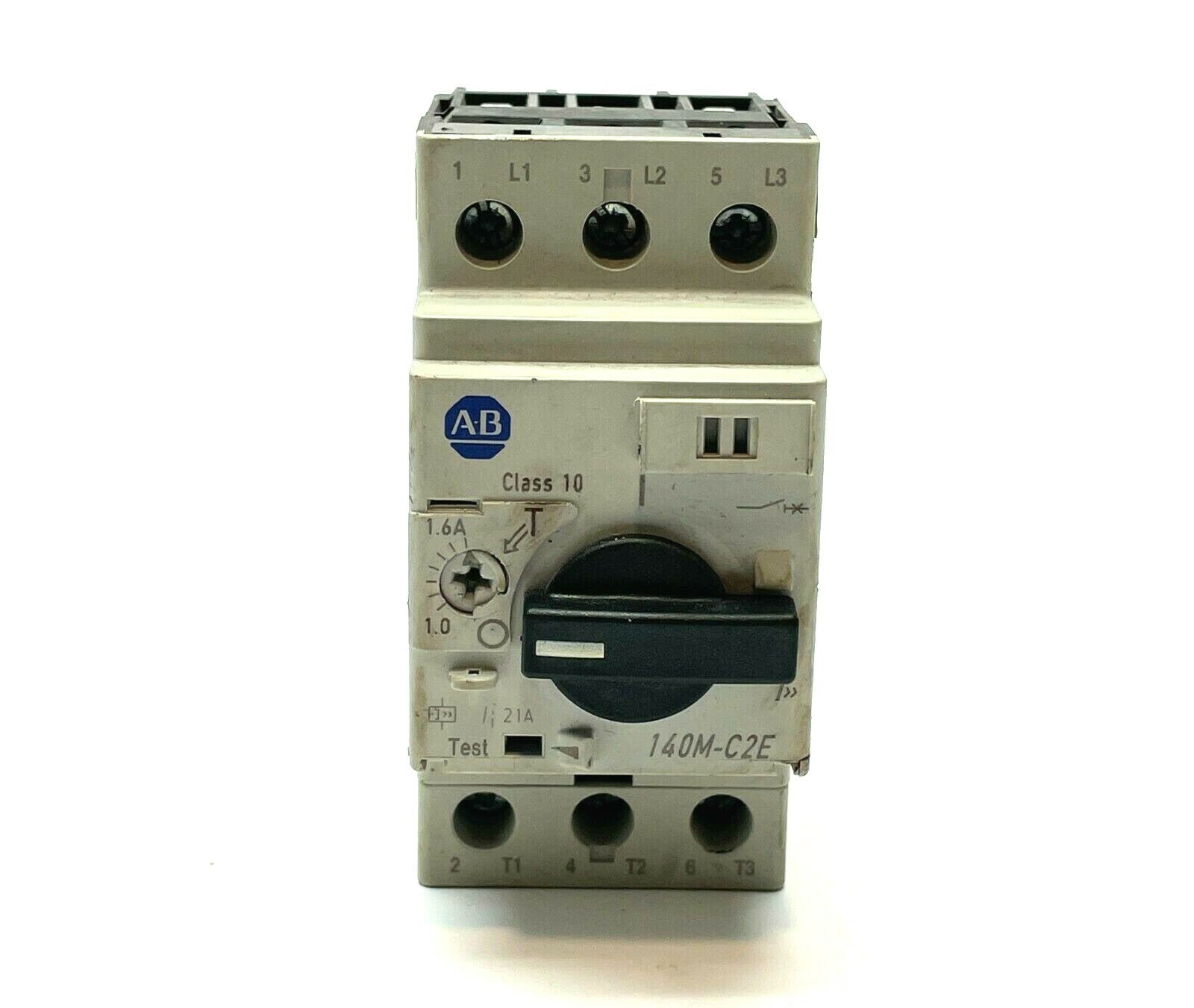

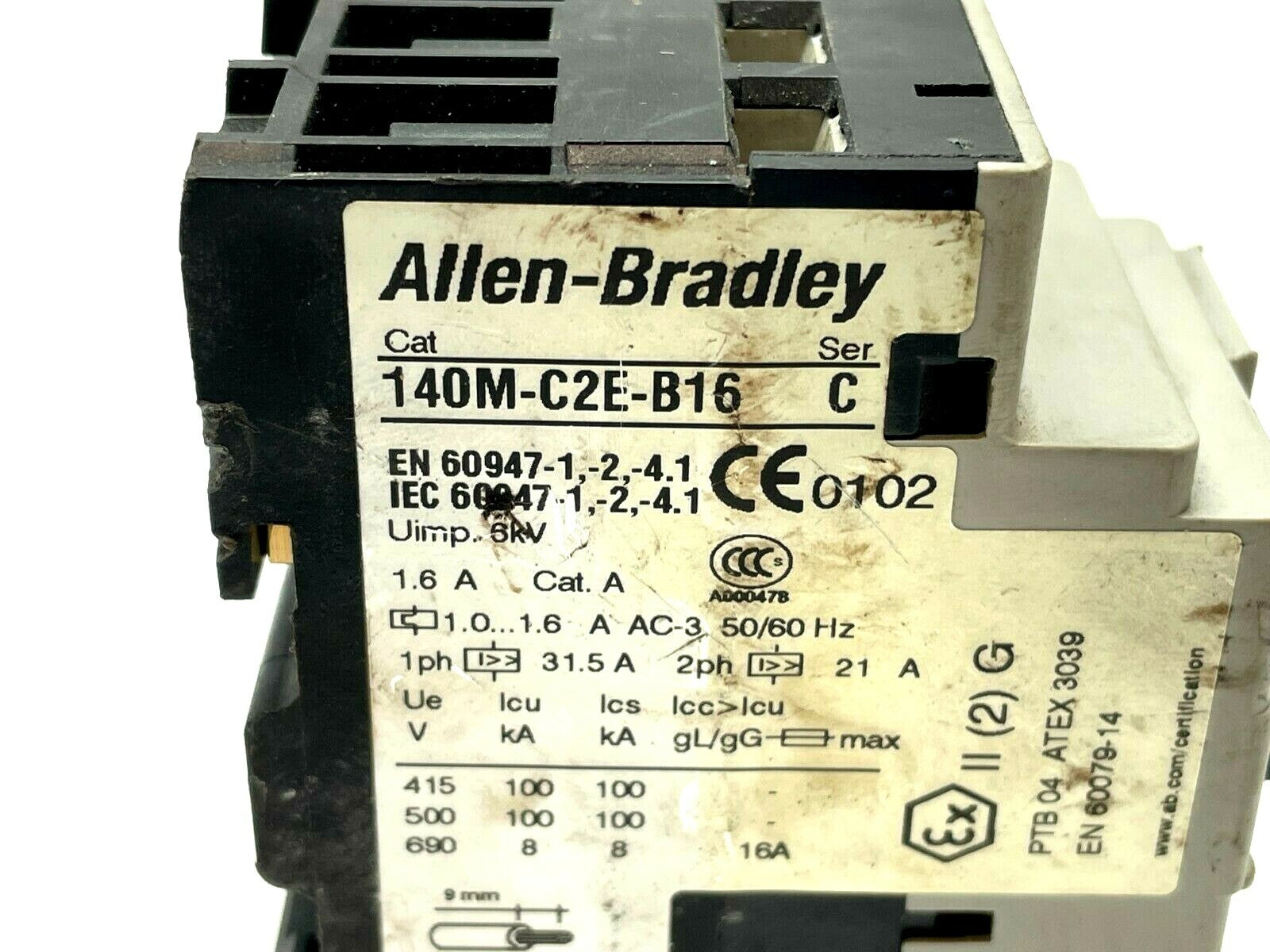

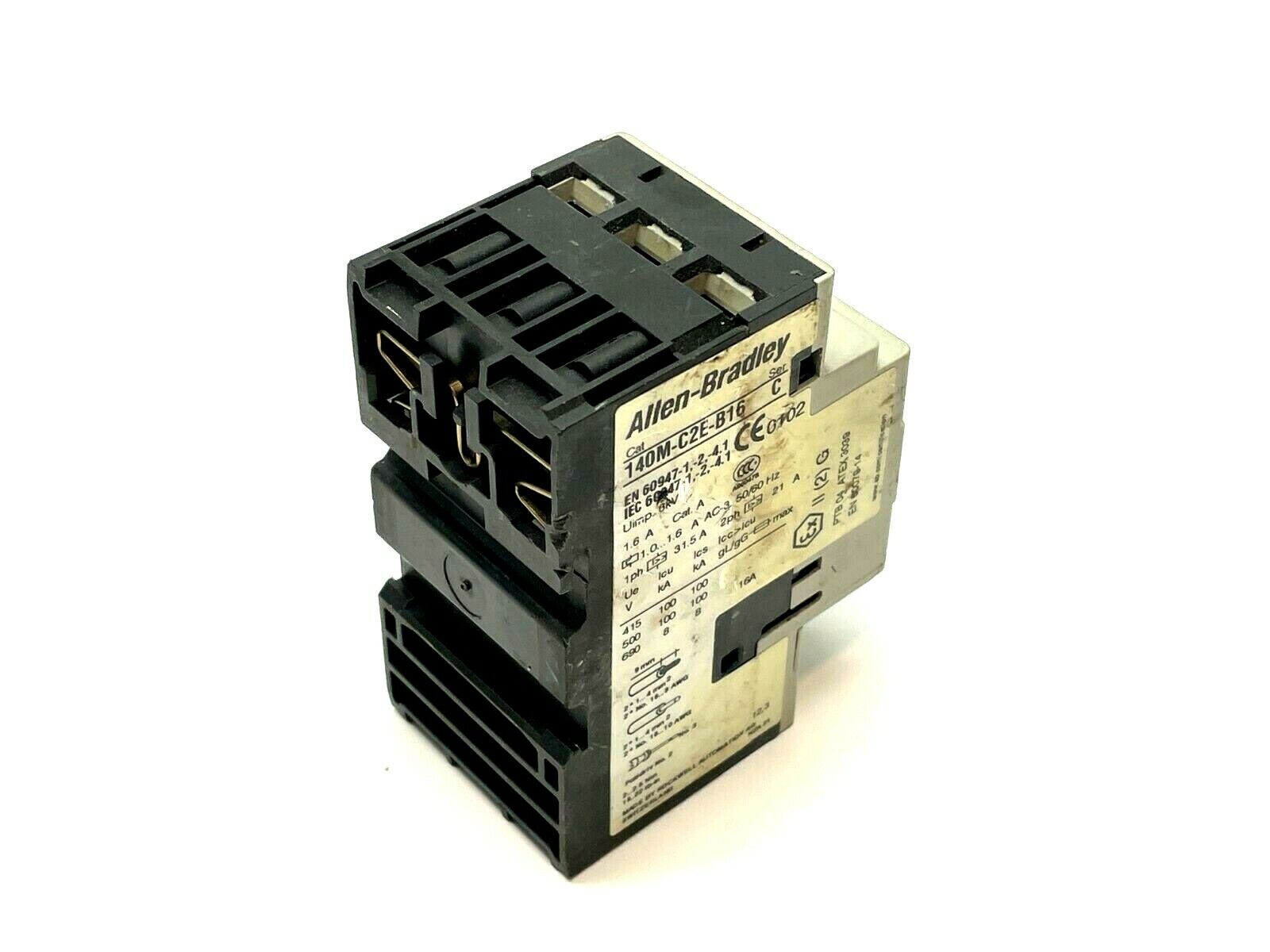

Allen Bradley 140M-C2E-B16 Ser. C Breaker Motor Protection 1.6A 3P
Condition: Used
Condition Description: Used item as seen in the images. 30 day warranty included.
MPN: 140M-C2E-B16
Custom Label: 1-C4C-58183-GX
Specifications
| Brand | Allen-Bradley |
|---|---|
| Catalog Number | 140M-C2E-B16 |
| Series | C |
| Product Type | Motor Protection Circuit-Breaker |
| Current Rating | 1–1.6 A |
| Number of Poles | 3 |
| Rated Operating Voltage | 690 V max (per IEC) |
| Rated Frequency | 50/60 Hz |
| Trip Class | 10 |
| Switch-Off Technique | Thermomagnetic |
| Ultimate Short Circuit Breaking Capacity | 8 kA @ 690 V (per IEC) |
| Rated Short Circuit Breaking Capacity | 100 kA @ 400 V AC |
| Connection Type | Screw Connection |
| Degree of Protection | IP2X |
| Dimensions | 45 × 90 × 74.5 mm (W × H × D) |
